Laser cutting machines are modern devices that offer numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology, but also have many benefits that allow production efficiency to increase (up to 70%) and improve quality. The FIBRE technology enables cutting sheets and other materials of various thicknesses – from very thin to very thick. The wavelength in the FIBRE laser is 1.064 micrometres, which results in an intensity 100 times greater than that of CO2 devices of similar power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free fibre source
- no wearing components
- fibre laser source requires about one-third less space
- high energy efficiency – 100,000 h of operation
- versatile application (special steels, mild and stainless steel, copper, brass, aluminium, titanium)
Fibre laser
- increases work efficiency by 80%
- reduces maintenance costs by 70%
- saves 80% of energy
- minimises gas consumption
- saves 30% of floor space
Dual Functionality and Cost Efficiency

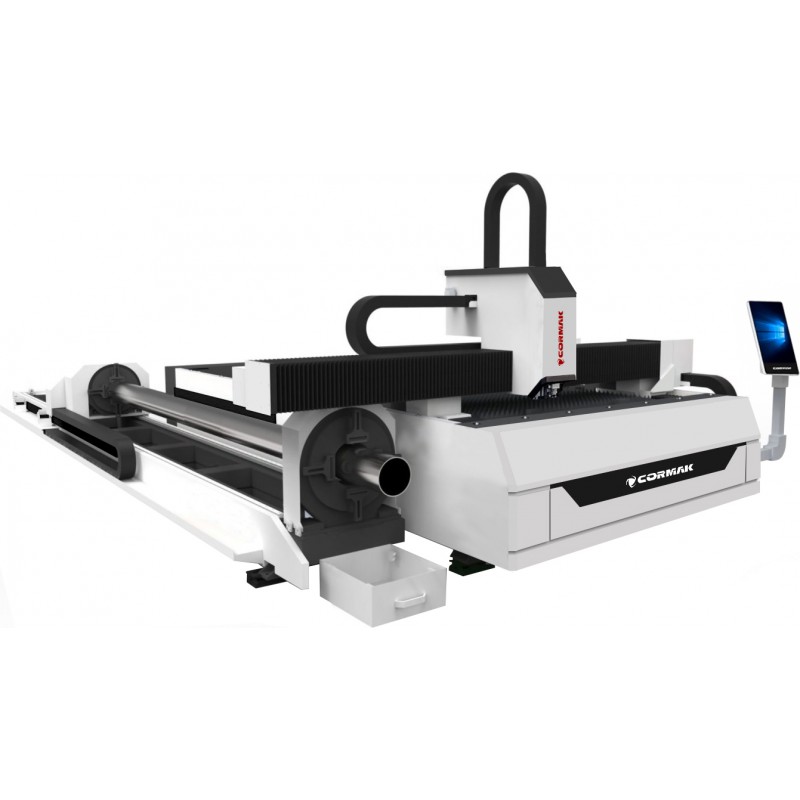

The LF3015EPR fibre laser cutting machine not only cuts sheet metal but also tubes and profiles. It offers multiple applications and saves over 50% of space, significantly increasing productivity.
Electric Clamping Chuck
The chuck holds the profile in two directions and automatically aligns it. The diagonal adjustment range is 20–170 mm.
Welded Bed Made of Rectangular Profiles
The frame structure features an internal honeycomb design made of welded rectangular tubes. Internal stiffeners enhance the bed’s strength, rigidity, and stability of the guide rail, effectively preventing deformation. High strength and stability ensure up to 20 years of use without distortion.
Automatic Tube Support
An intelligent support unit for tubes prevents deformation during the cutting process of long pipes.
Raytools Cutting Head
- Automatic Focus Adjustment – Autofocus – Software automatically adjusts the focusing lens during cutting of materials with varying thickness. The autofocus speed is ten times faster than manual adjustment.
- Extended Manual Adjustment Range – Adjustment range: -10 mm to +10 mm, accuracy 0.01 mm, suitable for different material thicknesses (0–20 mm) – for powers below 1500W.
- Long Service Life – Collimating and focusing lenses feature water-cooled heat sinks, reducing the head temperature and extending its service life.
Technical Parameters
| WORKING AREA |
1500x3000
|
| POWER |
1000W
|
| REPEATABLE POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
50 m/min |
| POWER SUPPLY |
400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
