Laser cutting machines are modern devices that stand out for their numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also provide many benefits that can increase production by up to 70% and improve product quality. FIBRE technology allows cutting of sheets and other materials of varying thicknesses — from very thin to very thick. The wavelength of the FIBRE laser is 1.064 micrometres, resulting in an intensity 100 times higher than that of CO2 lasers of comparable power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free fibre source
- no consumable components
- fibre laser source occupies about one-third less space
- high energy efficiency – 100,000 h of operation
- universal application (special steels, mild and stainless steel, copper, brass, aluminium, titanium)
Fibre laser
- increases productivity by 80%
- reduces maintenance costs by 70%
- saves 80% of energy
- minimises gas consumption
- saves 30% of workshop space
Dual Functionality and Cost Efficiency

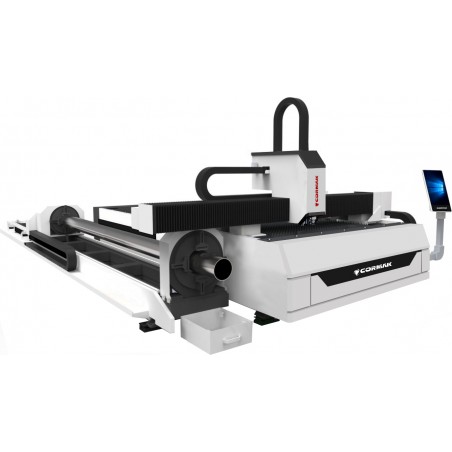

The LF3015EPR fibre laser cutting machine not only cuts sheet metal but also tubes and profiles. It offers a wide range of applications and saves over 50% of workspace, effectively increasing production efficiency.
Electric Clamping Chuck
The chuck grips the profile in two directions and automatically performs alignment. The diagonal adjustment range is 20–240 mm.
Welded Bed Made of Rectangular Profiles
The bed structure features an internal honeycomb design made of multiple welded rectangular tubes. Reinforcements inside the tubes enhance rigidity and stability, improving the precision of the guide rail and preventing deformation. High strength, stability, and tensile resistance ensure up to 20 years of distortion-free operation.
Automatic Tube Support
The intelligent tube support system effectively prevents deformation during the cutting process of long pipes.
Raytools Cutting Head
- Automatic Focus Adjustment – Autofocus – The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The autofocus speed is ten times faster than manual adjustment.
- Extended Manual Adjustment Range – Adjustment range: -10 mm to +10 mm, precision 0.01 mm, suitable for materials 0–20 mm thick – for powers below 1500W.
- Long Service Life – Collimating and focusing lenses feature water-cooled radiators, reducing the cutting head temperature and extending its lifespan.
Technical Parameters
| WORKING AREA |
1500x3000
|
| POWER |
6000W
|
| REPEATABLE POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
50 m/min |
| POWER SUPPLY |
400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
