Laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology, but also offer many benefits that allow production to be expanded (by up to 70%) and its quality improved. FIBER technology enables cutting of sheets and other materials of varying thicknesses, from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometres. These properties result in an intensity that is 100 times higher than that of CO2 machines of similar power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free fibre optics
- no wearing components
- the fibre laser source occupies around one-third less space
- high energy efficiency – 100,000 h operating life
- universal application (special steels, mild and stainless steel, copper, brass, aluminium, titanium)
Fibre laser
- increases work efficiency by 80%
- reduces service costs by 70%
- saves 80% of energy
- minimises gas consumption
- saves 30% of floor space
Dual application and cost savings

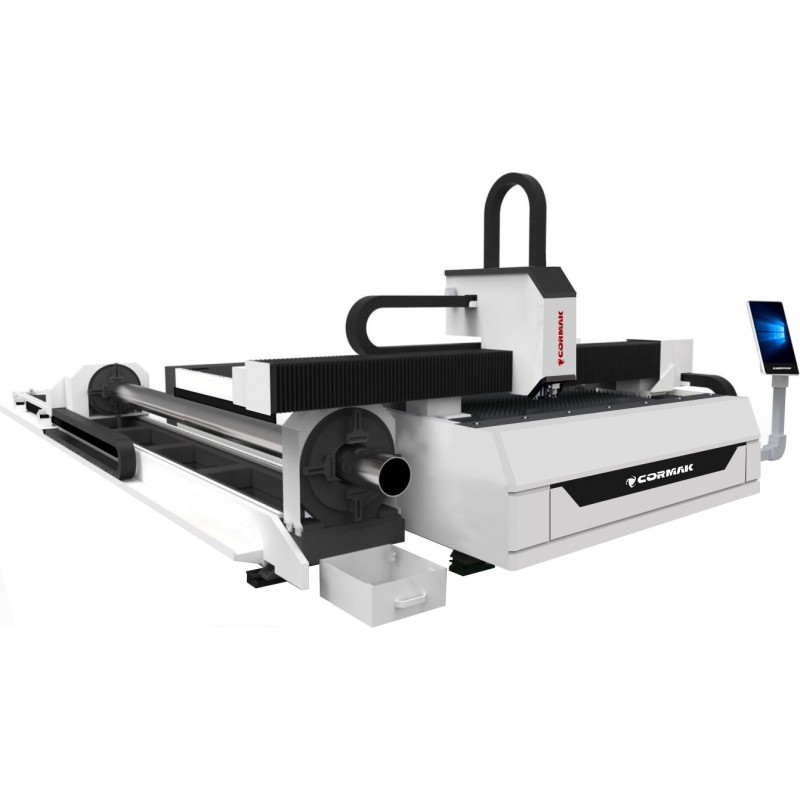

The LF3015EPR fibre laser cutter not only cuts sheet metal but also tubes and profiles. It offers multiple applications and saves more than 50% of floor space, effectively increasing productivity.
Exchange worktable
The exchange worktable consists of an upper and lower platform, the movement and exchange of which are controlled by the controller. The machine can perform platform exchange within 15 seconds.
Electric clamping chuck
The chuck grips the profile in two directions and automatically aligns it. The diagonal adjustment range is 20–240 mm.
Welded bed made of rectangular profiles
The bed structure has an internal honeycomb-like layout made of multiple welded rectangular tubes. Inside the tubes are reinforcements that increase bed strength as well as the rigidity and stability of the guide rail to effectively prevent deformation. High strength, stability and tensile resistance ensure 20 years of operation without distortion.
Automatic pipe support
Equipped with an intelligent pipe support assembly that eliminates deformation problems during the cutting of long pipes.
Raytools cutting head
- Automatic focus adjustment – Autofocus – The software automatically adjusts the focusing lens during cutting of sheets with different thicknesses. The autofocus adjustment speed is ten times faster than manual adjustment.
- Wider manual adjustment range – Adjustment range −10 mm to +10 mm, precision 0.01 mm, suitable for various material thicknesses (0–20 mm) – below 1500W power.
- Long service life – The collimating and focusing lenses have a water-cooled radiator, reducing the temperature of the cutting head and extending its lifetime.
Technical parameters
| WORKING AREA |
1500x3000
|
| POWER |
2000W
|
| REPEATABLE POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
50 m/min |
| POWER SUPPLY |
400V 50Hz |
Cutting parameters
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
