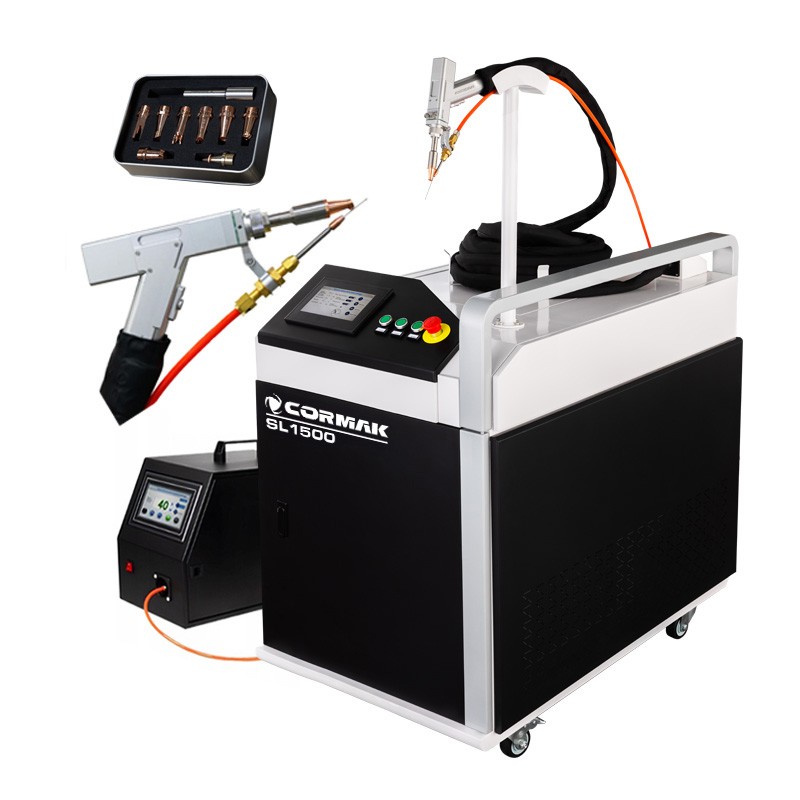

Laser Welding Machine CORMAK SL1500 3in1 – professional welding, cutting and cleaning
CORMAK SL1500 Laser Welding Machine is a modern, multifunctional FIBER system combining welding, cutting and cleaning capabilities in one compact design. With 1500 W power and a precisely engineered welding head, the machine delivers exceptional performance across a wide range of materials, maintaining full control over weld quality and penetration depth.
Main Advantages
- Efficiency and versatility – capable of welding a wide range of materials up to 4 mm thick (stainless steel), with or without wire feeding.
- Advanced welding head – adjustable spot (0–5 mm), lightweight design and quick replacement of the protective lens.
- Precision performance – concentrated beam minimises heat influence, ensuring neat and strong weld seams.
- Cutting and cleaning function – extends the machine’s usability for daily workshop and industrial operations.
- Low power consumption – only ≤4.5 kW – allows operation even in environments with limited power supply.
- 3in1 operating mode – saves workspace and eliminates the need for separate devices.
Design and Technology
CORMAK SL1500 is based on a 1080 nm fiber laser source, ensuring stable parameters and long component life. The laser head is connected via a 7-metre fibre cable to the main unit, allowing comfortable operation even in hard-to-reach areas. A water-cooling system and integrated connections for shielding gases ensure stable and safe operation during continuous duty cycles.
Precision and Performance
The system achieves a penetration depth of up to 3.59 mm for stainless steel and 2.77 mm for carbon steel, producing strong, sealed and repeatable welds. A welding speed range up to 120 mm/s enables fast serial production while maintaining precision beyond MIG/MAG methods. The smooth weld surface reduces the need for additional mechanical finishing.
Applications
- Manufacturing of railings, steel frames, and industrial enclosures
- Processing of aluminium, stainless steel and non-ferrous metals
- Detail cutting and cleaning in service and repair facilities
- Industrial plants, workshops, automotive and construction companies
Standard Equipment
- Laser welder with integrated cooling system
- Welding gun with adjustable focal length
- Fiber laser source
- Automatic wire feeder Ø 0.8–1.6 mm
- Complete cable set
- Starter kit of nozzles and protective lenses
Optional Equipment (option*)
- Optical kit for laser cleaning – 333,00 € net
Technical Data
| Maximum power |
1500 W |
| Laser wavelength |
1080 nm |
| Penetration depth (stainless steel 1 m/min) |
3.59 mm |
| Penetration depth (carbon steel 1 m/min) |
2.77 mm |
| Penetration depth (aluminium 1 m/min) |
3.0 mm |
| Penetration depth (brass 1 m/min) |
3.0 mm |
| Welding speed |
0–120 mm/s |
| Automatic wire feeder |
Ø 0.8–1.6 mm |
| Maximum power consumption |
≤4.5 kW |
| Cooling system |
Water-cooled |
| Operating voltage |
230 V |
| Shielding gas consumption |
approx. 10–12 L/mm Ø wire |
| Dimensions |
600 × 1100 × 1100 mm |
| Weight approx. |
170 kg |
Weldable Material Thickness
| WELDABLE MATERIAL THICKNESS |
| Material |
WELDER POWER |
| 1000 W |
1500 W |
2000 W |
3000 W |
| Stainless steel |
0.5–3.0 mm |
0.5–4.0 mm |
0.5–5.0 mm |
0.5–8.0 mm |
| Carbon steel |
0.5–2.5 mm |
0.5–3.5 mm |
0.5–4.5 mm |
0.5–8.0 mm |
| Galvanised steel |
0.5–1.2 mm |
1.5–1.8 mm |
1.5–4.0 mm |
1.5–7.0 mm |
| Aluminium |
0.5–1.2 mm |
1.5–1.8 mm |
1.5–4.0 mm |
1.5–7.0 mm |
| Brass |
0.5–1.2 mm |
1.5–1.8 mm |
1.5–2.5 mm |
1.5–4.0 mm |
Additional Information
Support materials: CORMAK provides video tutorials on YouTube – assisting with machine setup and operation.
Note: The housing appearance may vary depending on the production batch. Designations SL and WL are used interchangeably and do not affect performance or parameters.
Call to Action
Order the CORMAK SL1500 Laser Welding Machine today and take full advantage of FIBER technology. Gain higher productivity, superior weld quality and enhanced operational flexibility.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
