Welding Positioner CORMAK PS-180

Welding Positioner CORMAK PS-180 – professional support for precision welding

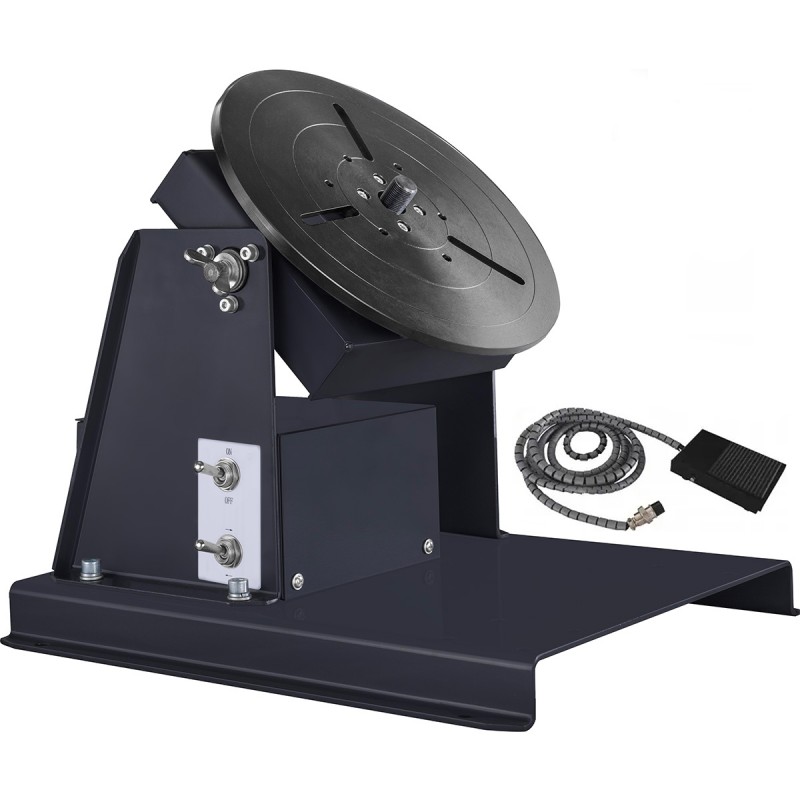

The CORMAK PS-180 welding positioner is a compact, precise and reliable rotary welding table designed for assembly and welding applications in production workshops, metalworking plants and repair facilities. With precise speed control, robust construction and a wide tilting range of the worktable, this positioner significantly increases operator comfort and productivity. It enables safe and controlled welding of cylindrical parts and complex-shaped components.

Main advantages of the PS-180 welding positioner

• High-precision welding turntable – allows accurate positioning of workpieces within a 0–90° range.
• Adjustable rotation speed from 1 to 8 rpm – adapts to the type of weld and welding technology.
• Foot pedal included – enables dynamic real-time control of table rotation and direction.
• Worktable diameter 200 mm – equipped with mounting grooves for easy attachment of holders, chucks and components.
• Universal ground connection slot – allows continuous grounding without the need to reconnect the clamp.
• Compact dimensions and low weight – easy to integrate into existing workstations and quickly reposition when needed.

Design and technology

The CORMAK PS-180 welding positioner has been designed with ergonomics and durability in mind. Its robust steel housing ensures resistance to operational wear, while the worktable construction allows accurate mounting of parts of various shapes. The manual tilt mechanism with a 0–90° range enables optimal welding position adjustment. Driven by a 15W motor, the rotary system provides smooth speed regulation, enhancing the operator’s flexibility and control.

Precision and performance

CORMAK welding positioners ensure optimal welding angles, improving seam quality and reducing technological errors. With automatic rotation and stable clamping of workpieces, operators can focus on the welding process, achieving consistent and aesthetic joints. This solution increases work speed and reduces operator fatigue by eliminating the need for manual handling of heavy parts.

Applications

The PS-180 welding turntable is especially useful in:

• welding cylindrical components such as tanks, pipes, sleeves and flanges,
• precise assembly of components on the rotational axis,
• orbital and TIG welding requiring precise speed control,
• semi-automated production processes,
• handling lightweight parts in limited workspace conditions.

Thanks to its compact size and multifunctional capabilities, the CORMAK PS-180 positioner is ideal for both small workshops and medium-scale production lines.

Standard equipment

• φ200 mm worktable with mounting grooves
• Foot pedal
• Ground connection slot
• Manual tilt mechanism 0–90°
• Built-in inverter for rotational speed adjustment

Optional equipment

• Three-jaw chuck for part clamping (not included)

Technical specifications

*Three-jaw chuck not included in the set.

Order the CORMAK PS-180 welding positioner – an indispensable tool for welding cylindrical elements and assembling precise structures. Choose a solution that enhances the quality and productivity of your work. Check availability and add it to your basket now!
