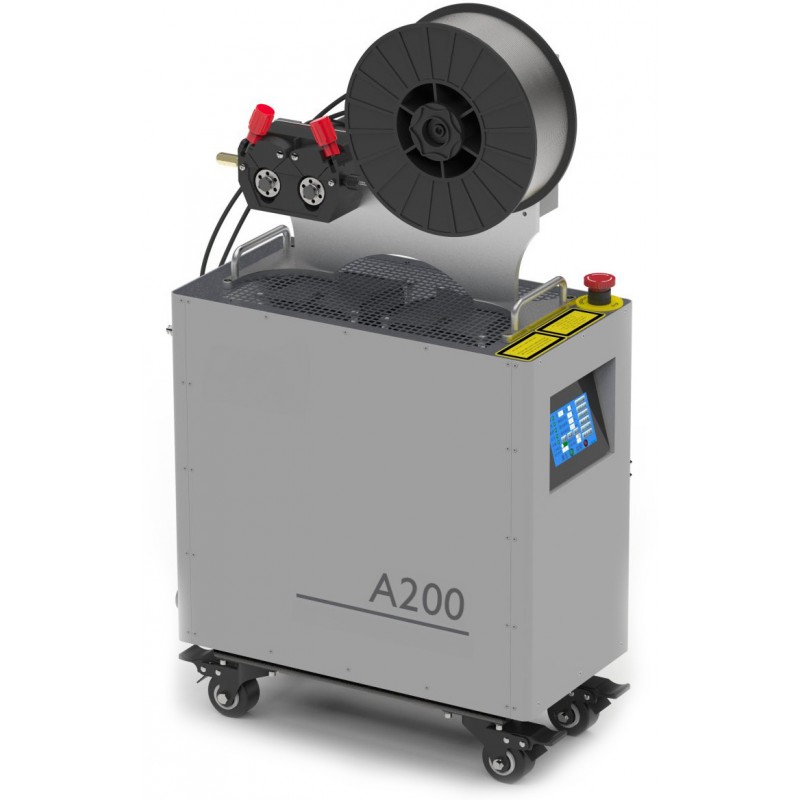

Compact Fibre Laser Welding Machine A200 – A Professional Solution for Industry
The A200 laser welder is a modern fibre device designed for demanding industrial users. With 2000W of power, high electro-optical efficiency, and compact construction, the A200 provides stable weld quality and excellent energy efficiency. The unit is ideal for both serial production and precision workshop operations.
Main Advantages
- 2000W power – enables deep penetration and welding of a wide range of materials, including metal alloys.
- Beam stability – ensures repeatability and cleanliness of welds when working with thin-walled elements.
- High efficiency 38% – reduces energy consumption thanks to advanced electro-optical conversion.
- Modulation up to 20kHz – allows precise parameter adjustment for various applications.
- Compact and durable housing – dimensions 323 × 684 × 629mm and weight 58kg, designed for industrial conditions.
- Air-cooling system – eliminates the need for a water chiller, reduces maintenance, and simplifies operation.
- Intuitive touch panel – fast parameter setup, easy operation even in demanding workshop environments.
Construction and Technology
The A200 laser welder uses a fibre source with a wavelength of 1080 ± 3nm, offering high stability and beam precision. The device is equipped with an independent air-cooling system featuring a high-performance fan, significantly reducing service requirements and improving mobility. The robust housing ensures resistance to vibration and dust typical of industrial environments.
Precision and Work Efficiency
The A200 laser offers a penetration depth up to 1.5 times greater than traditional water-cooled systems, directly translating into the quality and durability of welded joints. Fibre technology allows the welding of thin sheets and aluminium elements without material deformation, maintaining smooth and clean welds.
Applications
- Manufacturing and refurbishment of components in the mechanical and machinery industries
- Automotive and transport facilities
- Advertising industry – aluminium, stainless steel and galvanised components
- Electrical and electrotechnical equipment production
- Door and window fittings, structural details, and small welds in hard-to-reach areas
- Welding services requiring mobility and high precision
Standard Equipment
- 2000W fibre laser source
- Air-cooling system with fan
- Control panel with touch screen
- Set of power and signal cables
- Basic starter kit (nozzles, filter, protective optics)
Optional Equipment
- Nozzles for angled and specialist work
- Set of optical filters and spare lenses
- Training or instructional video materials (on request)
Technical Data
| Maximum output power |
2000W |
| Laser wavelength |
1080 ± 3nm |
| Modulation |
Up to 20kHz |
| Cooling system |
Air, with high-performance fan |
| Maximum power consumption |
<6000W |
| Penetration depth |
Up to 1.5 times greater than traditional water-cooled lasers |
| Dimensions |
323 × 684 × 629mm |
| Weight |
58kg |
Call to Action
The A200 laser welder is an efficient and modern solution for every production facility. If you value precision, energy savings and application flexibility, this compact unit will meet your expectations. Check the price of the A200 laser welder now on cormak.pl or contact our technical specialist.
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
