LaserProtect PREMIUM Personal Protective Equipment Set for Laser Welding

LaserProtect PREMIUM – The Most Advanced PPE Set for Professionals

LaserProtect PREMIUM is the most advanced PPE set designed for intensive operation with high-performance laser systems. The integrated helmet with active air supply protects the user not only against scattered laser radiation but also against welding fumes and dust. The TERMINATOR protective glasses provide additional eye protection over a wide wavelength range. This is a set for professionals who do not compromise on safety — intended for demanding industrial and serial production environments.

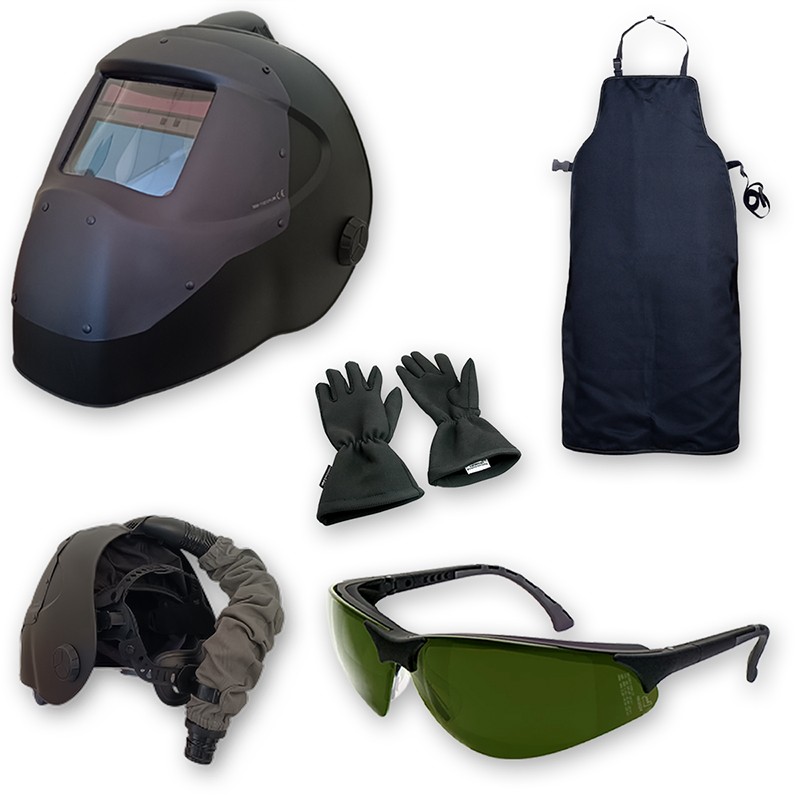

Set Contents:

Protective Apron

• Material: 60% modacrylic, 40% cotton
• Size: Universal
• Washable: Yes, up to 40°C
• Standards:
  • EN ISO 13688:2013+A1:2021
  • EN ISO 11611:2015 (Class 2, A1)
• Application:
  • Protection against scattered laser radiation
  • Note: Does not provide protection against direct laser radiation

3K Protective Gloves

• Sizes: 8, 10, 12
• Material and thickness:
  • Palm: 0.9 mm
  • Back of hand: 3 mm
• Material weight: approx. 350 g/m²
• Washable: Yes
• Standards:
  • EN 388:2016+A1 – 2 2 3 1 X
  • EN 12477:2001+A1:2005 – Type B
• Application:
  • Protection of hands against mechanical injury and scattered laser radiation
  • Note: Does not provide protection against direct laser radiation

PROTECT Safety Helmet with Air Supply

• Application: Laser welding, laser cleaning, TIG, MIG, MAG, MMA, PWA
• Certificates:
  • EN 207: 1000–1100 D LB7 + IR LB8 (OD 8+) PF CE
  • ISO 16321: 16321 PF W2/4-8/9-13 V2 E 1-M
  • EN 12941 TH3 P R SL (PAPR – powered air purifying respirator system)
• Optical specification:
  • Filter material: certified plastic
  • Colour: black/anthracite
  • ADF: VLT (A) 19%, shade 4-8/8-12, switching time 40 μs
  • Viewing area: 96 x 46.5 mm
• Airflow specification:
  • Airflow rate:
    • Low speed: 170+ l/min
    • High speed: 210+ l/min
  • Battery type: rechargeable lithium-ion
  • Operating time (standard battery):
    • ~9 h (170+ l/min)
    • ~5–6 h (210+ l/min)
  • Operating time (extended battery):
    • ~15 h (170+ l/min)
    • ~9 h (210+ l/min)
  • P3 filter – efficiency ≥99.97%
  • Alarms: visual, acoustic, vibration
• Operating conditions:
  • Working temperature: -5 °C ~ +55 °C
  • Relative humidity < 90%
• Weight: approx. 1,000 g

TERMINATOR 0275 Protective Glasses

• Filter type: dark green, plastic
• Light transmission: 30%
• Protection standard: EN 207
• Protection range:
  • 910–1075 D LB6 + IRM LB8 (OD8+)
  • >920–1065 D LB6 + IRM LB9 (OD9+)
• Additional wavelength ranges:
  • 180–315 D LB10 + IR LB5 + M LB6
  • 315–380 D LB6 + IR LB8 + M LB7
  • 380–436 DIRM LB6
  • 437–448 DIRM LB4
  • 449–462 DIRM LB2
  • 463–489 DIRM LB1
  • 624–650 DIRM LB1
  • 651–699 DIRM LB2
  • 700–719 DIRM LB4
  • 720–722 DIRM LB6
  • 723–729 D LB6 + IRM LB8
  • 730–765 D LB6 + IRM LB9
  • 765–769 D LB6 + IRM LB8
  • 769–820 DIRM LB5
  • 820–920 DIRM LB6
  • 1076–1085 DIRM LB6
  • 1086–1106 DIRM LB4
  • 1107–1138 DIRM LB2
  • 1139–1167 DIRM LB1
  • 5165–11500 DI LB4 + R LB3 (OD4+) PF CE

Summary

LaserProtect PREMIUM is a comprehensive and advanced protective solution for operators working with high-performance laser technologies. The set provides not only top-level protection against laser radiation but also protection against welding fumes and dust thanks to its active air supply system. Designed for demanding industrial and production applications.
