Laser Welding PPE Set CORMAK LaserProtect EXPERT

LaserProtect EXPERT – Protective Set with Extended Eye Protection

LaserProtect EXPERT is an extended version of the basic set, designed for operators working with laser systems requiring enhanced eye protection. The combination of the laserPRO helmet and TERMINATOR 0275 protective glasses provides superior shielding against radiation across a wide wavelength range. A versatile set for more demanding workstations or longer operating cycles.

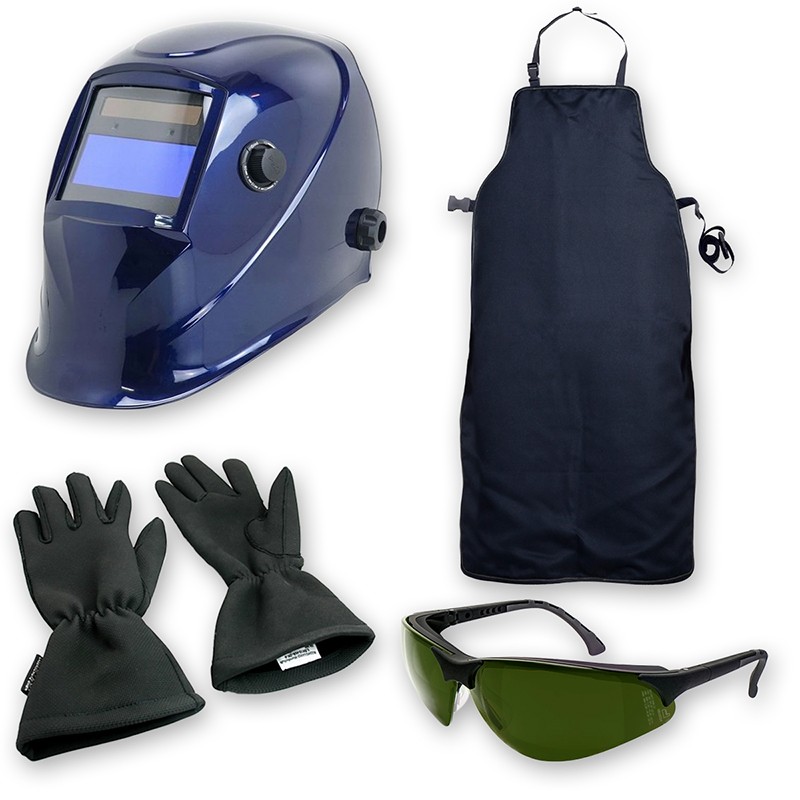

Set Contents:

Protective Apron

• Material: 60% modacrylic, 40% cotton
• Size: Universal
• Washable: Yes, up to 40°C
• Standards:
  • EN ISO 13688:2013+A1:2021
  • EN ISO 11611:2015 (Class 2, A1)
• Application:
  • Protection against scattered laser radiation
  • Note: No protection against direct laser radiation

3K Protective Gloves

• Sizes: 8, 10, 12
• Material and Thickness:
  • Palm: 0.9mm
  • Back of hand: 3mm
• Material Weight: approx. 350g/m²
• Washable: Yes
• Standards:
  • EN 388:2016+A1 – 2 2 3 1 X
  • EN 12477:2001+A1:2005 – Type B
• Application:
  • Hand protection against mechanical injuries and scattered laser radiation
  • Note: No protection against direct laser radiation

laserPRO Protective Helmet

• Optical Class: 1/1/1/1
• Viewing Area: 100 x 65mm
• Filter Dimensions: 122 x 106 x 10mm
• Darkening Range (DIN): 4–8 / 9–13
• Darkening Time: 1/30,000s
• Lightening Time: 0.25–0.8s (stepless adjustment)
• UV/IR Protection: DIN 16
• Power Supply: Solar cells + CR2450 battery (3V)
• Colour: black / red / blue / silver
• Weight: approx. 600g
• Standard: EN 207
• Filter Protection Range:
  • >900–1070 D LB7 + I LB8 + R LB7 (OD 8+)
  • >1070–1075 DIR LB6 (OD 6+)
  • >1075–1080 DIR LB5 (OD 5+) PF CE
• Note: Visibility of the auxiliary laser may be limited in some systems

TERMINATOR 0275 Protective Glasses

• Filter Type: dark green, plastic
• Light Transmission: 30%
• Protection Standard: PN-EN 207
• Protection Range:
  • 910–1075 D LB6 + IRM LB8 (OD8+)
  • >920–1065 D LB6 + IRM LB9 (OD9+)
• Additional Protection Bands:
  • 180–315 D LB10 + IR LB5 + M LB6
  • 315–380 D LB6 + IR LB8 + M LB7
  • 380–436 DIRM LB6
  • 437–448 DIRM LB4
  • 449–462 DIRM LB2
  • 463–489 DIRM LB1
  • 624–650 DIRM LB1
  • 651–699 DIRM LB2
  • 700–719 DIRM LB4
  • 720–722 DIRM LB6
  • 723–729 D LB6 + IRM LB8
  • 730–765 D LB6 + IRM LB9
  • 765–769 D LB6 + IRM LB8
  • 769–820 DIRM LB5
  • 820–920 DIRM LB6
  • 1076–1085 DIRM LB6
  • 1086–1106 DIRM LB4
  • 1107–1138 DIRM LB2
  • 1139–1167 DIRM LB1
  • 5165–11500 DI LB4 + R LB3 (OD4+) PF CE
