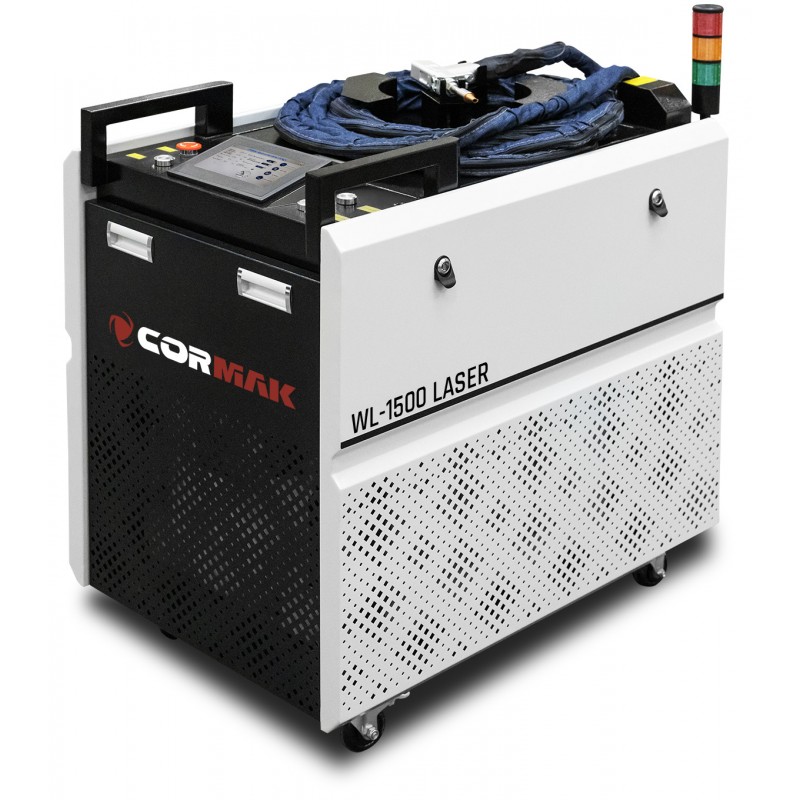

Why choose CORMAK WL1500?
The CORMAK WL1500 laser welding machine is the ideal solution for professionals seeking reliability, precision and efficiency. Its innovative design and advanced cooling system make it a future-proof device capable of handling even the most demanding welding tasks. Pre-order now and take advantage of this special offer!
Key Features and Benefits
- Advanced cooling system: The new, more efficient water-cooling system ensures optimal operating temperature, allowing for longer continuous operation and increased service life.
- Innovative design: The ergonomic and lightweight welding head allows welding even in hard-to-reach areas. Thanks to adjustable spot size (0–5 mm) and replaceable nozzles, the operator has full control over the process.
- Easy to use – the operator can start working after brief training thanks to well-thought-out design and applied solutions.
- Low indirect radiation – protective glasses are sufficient to filter intense light during operation.
- Much faster welding than traditional methods – productivity can increase from 3 to 10 times.
- Concentrated beam: slight structural change thanks to the small heat-affected zone.
- Repeatable welds – neat seams and high-strength joints.
- Capable of welding very thin materials, such as 0.5 mm stainless steel.
- Welding with or without wire (option*).
- The integrated laser cleaning function increases the device’s application range.
- Cutting function available – ensures excellent cutting quality without mechanical finishing.
Technical Specifications
| Maximum power |
1500 W |
| Laser wavelength |
1080 nm |
| Penetration depth (stainless steel 1 m/min) |
3.59 mm |
| Penetration depth (mild steel 1 m/min) |
2.77 mm |
| Penetration depth (aluminium 1 m/min) |
3.0 mm |
| Penetration depth (brass 1 m/min) |
3.0 mm |
| Welding speed |
0–120 mm/s |
| Automatic wire feeder |
Ø 0.8–1.6 mm |
| Maximum power consumption |
≤4.5 kW |
| Cooling system |
Water-cooled |
| Operating voltage |
230V |
| Shielding gas consumption |
approx. 20 L/min |
| Dimensions |
600 × 1100 × 1100 mm |
| Weight approx. |
170 kg |
THICKNESS OF WELDED MATERIALS
|
Material
|
WELDER POWER
|
| 1000 W |
1500 W |
2000 W |
3000 W |
| Stainless steel |
0.5–3.0 mm |
0.5–4.0 mm |
0.5–5.0 mm |
0.5–8.0 mm |
| Mild steel |
0.5–2.5 mm |
0.5–3.5 mm |
0.5–4.5 mm |
0.5–8.0 mm |
| Galvanised steel |
0.5–1.2 mm |
1.5–1.8 mm |
1.5–4.0 mm |
1.5–7.0 mm |
| Aluminium |
0.5–1.2 mm |
1.5–1.8 mm |
1.5–4.0 mm |
1.5–7.0 mm |
| Brass |
0.5–1.2 mm |
1.5–1.8 mm |
1.5–2.5 mm |
1.5–4.0 mm |
LATEST GENERATION WELDING HEAD
Automatic wire feeder included;
Adjustable spot size 0–5 mm;
High-power welding head;
Integrated connections for shielding gases and cooling system;
Interchangeable nozzles allow welding at different angles;
7 m fibre cable connecting the head to the source;
Full ergonomics – lightweight and flexible design allows welding even in hard-to-reach areas;
Easy servicing – quick and simple replacement of the protective lens.
Automatic wire feeder included
The wire feed system is synchronised with the welder’s software. The feeder’s task is to provide filler material, allowing the operator to focus fully on the welding process.
The set includes
- Laser welder with built-in cooling system
- Welding gun with adjustable focal length and accessory set
- Fibre laser source
- Automatic wire feeder
- Complete set of cables
- Starter set of welding nozzles and protective lenses
The appearance of the housing may vary depending on the order date, but the technical specifications remain unchanged, ensuring consistent quality and performance.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
