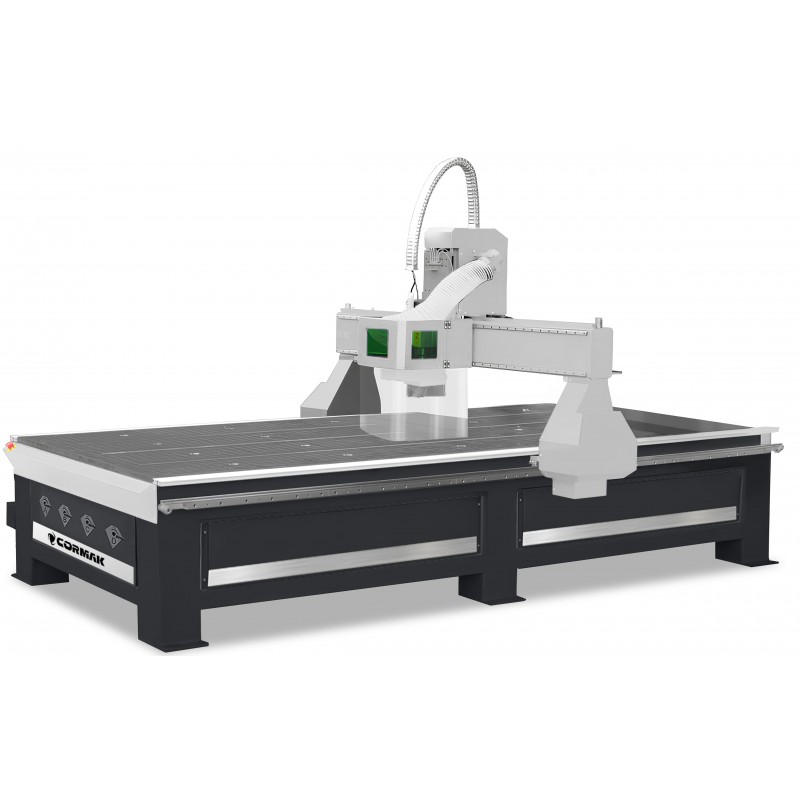

Construction
- Rigid welded steel construction,
- The gantry arms are made of hardened, powder-coated thick sheet steel, ensuring increased stiffness and improved machining precision.
Worktable
- Hybrid worktable design,
- Equipped with T-slots for manual clamping of materials measuring 1500 x 2500 mm,
- Sectional vacuum table with four independent vacuum zones.
Drive
- SERVO motors provide high acceleration and movement speed in all axes.
- X and Y axes use high-quality rack and pinion drives, ensuring durability and precision,
- Z axis driven by a high-quality ball screw.
- All axes move on linear guideways.
- The machine is equipped with a tool height sensor.
- Linear bearings: trapezoidal rails, Hiwin carriages.
Spindle
- The spindle uses high-quality precision bearings, ensuring quiet operation and long service life.
- Tool height measuring sensor – included.
- Spindle speed range from 4,500 to 18,000 rpm.
- Tool clamping via ER32 collets.
Software
- OPTIONALLY latest software UCanCAM V13 (software allows importing files from Corel, AutoCAD, etc. Import/export of files, text editing and creation, and many other features)
- Enables fast and easy design of parts, which the program then converts into G-code. It also allows importing ready-made files from other programs.
- The machine features G-code path memory (in the event of power loss, it resumes from the last point without time or material loss.)
DSP Control
- Digital Signal Processing – digital signal processing system
- The DSP controller has its own processor and memory, ensuring reliable performance and easy operation.
- Provides smooth machine operation and machining precision.
- After power loss, restarting the program is unnecessary.
- The built-in memory allows machine operation without reloading the program each time.
We offer machines with genuine CE certification – certified by leading EU institutions.
By choosing the CORMAK brand, you choose machining precision, long service life, and operator safety.
We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual pricing — please contact our consultant.
Technical parameters
| Spindle |
5.5kW / 18,000 rpm inverter, air-cooled |
| Working area |
1500x2500 mm
|
| Maximum spindle height |
350 mm |
| Control |
DSP |
| Software resolution |
0.001 mm |
| Software |
UCanCAM V13 (optional) |
| Power supply |
400V |
| Weight |
1380 kg |
| Machine dimensions |
2680 x 3600 x 2200 mm |
| Table height |
715 mm |
| Vacuum pump |
7.5 kW (optional) |
| Vacuum pressure |
440 mbar |
| Guideways |
linear |
| Drive transmission |
rack and pinion (Z axis – ball screw) |
| Axis drives |
hybrid servo drives |
Equipment
- Air-cooled spindle, PREMIUM version
- Hybrid servo drives
- Vacuum table – 4 independent vacuum zones + T-slot table for manual fixing
- Tool height sensor included
- Tool set, collets, levelling feet, and accessories
- DSP control – digital signal processing
Unloading and machine placement are the customer’s responsibility.
Power plug on the customer’s side due to various 16A / 32A sockets.
On-site commissioning of CNC routers available upon request, with individual pricing.
