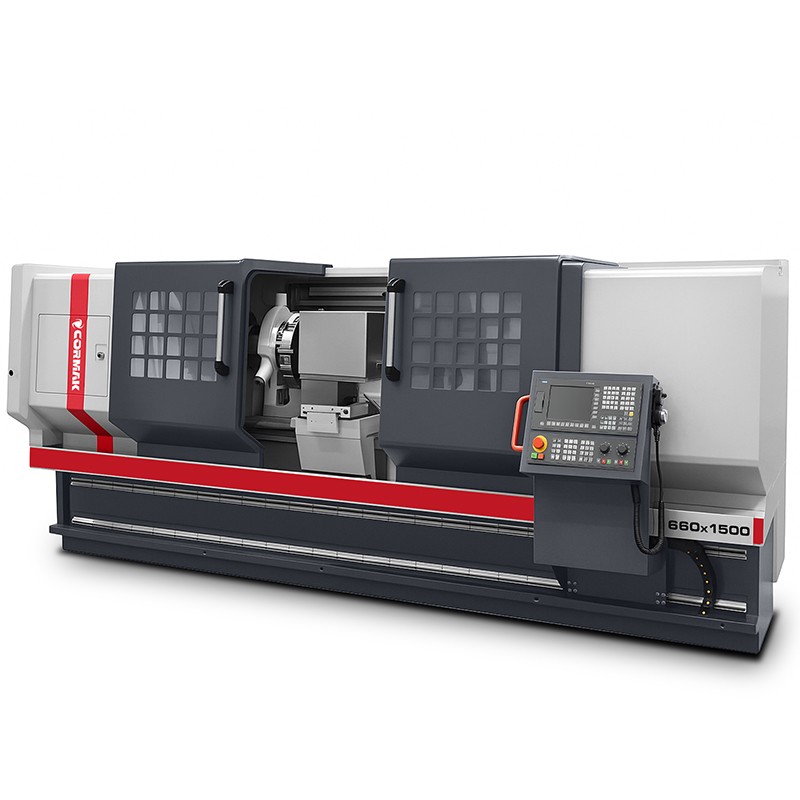

CNC Lathe 660x1500

The lathe remembers the actions performed by the operator and automatically converts them to G-codes. Then the operator presses the playback button to obtain an identical copy of the processed element. It allows to reduce the setup time of the CNC lathe by half and the work efficiency by 62%. Standard functions of the CNC lathe extended with the capabilities of a conventional lathe. Manual feeds of the X and Z axes using 2 electronic knobs, semi-automatic transition through the definition of individual cycles.

Variant

CNC Lathe 660x2000

CNC lathe 660x3000

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

Are you interested in this product?

Ask for price

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Characteristics of the 660x1500 CNC lathe

manual movement of the X and Z axes using electronic knobs
semi-automatic shifting by defining individual cycles: turning conical surfaces, threading
SINUMERIK 808D: entry-level for standard CNC machines
manually moves the X and Z axes using 2 electronic knobs
User-friendly cycle interface for easy part programming – wide range of turning cycle programming options for a complete part program
induction hardened guides
very dynamic main spindle drive thanks to servomotors
standard 200 mm clamping bracket with adjustable force
low-maintenance machine operation thanks to the intelligent central lubrication unit
longitudinal and transverse feed using high-quality lead screws
6-fold tool turret increases the degree of automation and efficiency, saving time on complex components

Technical data of the CNC lathe 660x1500

TEETH SPACING	1500mm
MAXIMUM TURNING DIAMETER	660mm
MAXIMUM TURNING DIAMETER OVER BRACKET	520mm
BED WIDTH	600mm
SPINDLE BORE	130mm
SPINDLE SPEED	22-108, 60-300, 240-1200 rpm
MAXIMUM X/Z AXIS TRAVEL	420/1350, 2850mm
X/Z AXIS ACCELERATE FEED RATE	4/8 m/min
POSITIONING ACCURACY	0.03/0.04mm
X/Z AXIS REPEATABILITY	0.012/0.02; 0.025mm
TAILSTOCK SLEEVE DIAMETER	100mm
MAXIMUM TAILSTOCK SLEEVE TRAVERSE	250mm
TAILSTOCK SLEEVE END	MK5
TOOL SIZE	25x25mm 32x32mm
MAXIMUM LOAD CAPACITY	1500 kg
ENGINE POWER	15kW
WEIGHT	6100 kg
DIMENSIONS	4310 x 2040 x 1860 mm

Optional equipment for CNC lathe 660x1500

6-tool holder
hand knobs
3 jaw chuck 650 mm
handle + hydraulic tailstock
control: FANUC, FAGOR, SIEMENS 828D
steady rest + moving rest

With over 20 years of experience in supplying machines and technological solutions, we are a leader in the field of industrial supplies.

16 Years of experience in servicing Siemens CNC controls.
Approximately 12,000 machines and devices await you on over 15,000 m2 of warehouse space.

CORMAK is a Polish Brand and proven solutions recommended by our customers for many years. We offer only the highest quality machines and constantly strive to raise their standards.

We provide professional warranty and post-warranty SERVICE. Our engineers have the appropriate knowledge and training in the field.
By choosing CORMAK you can be sure that you are buying from a Polish company. All offered machines have the appropriate European occupational safety certificates.
Our specialists provide comprehensive information and professional advice in selecting the optimal solutions for your company. You can always count on professional service.

Manufacturer: Cormak
