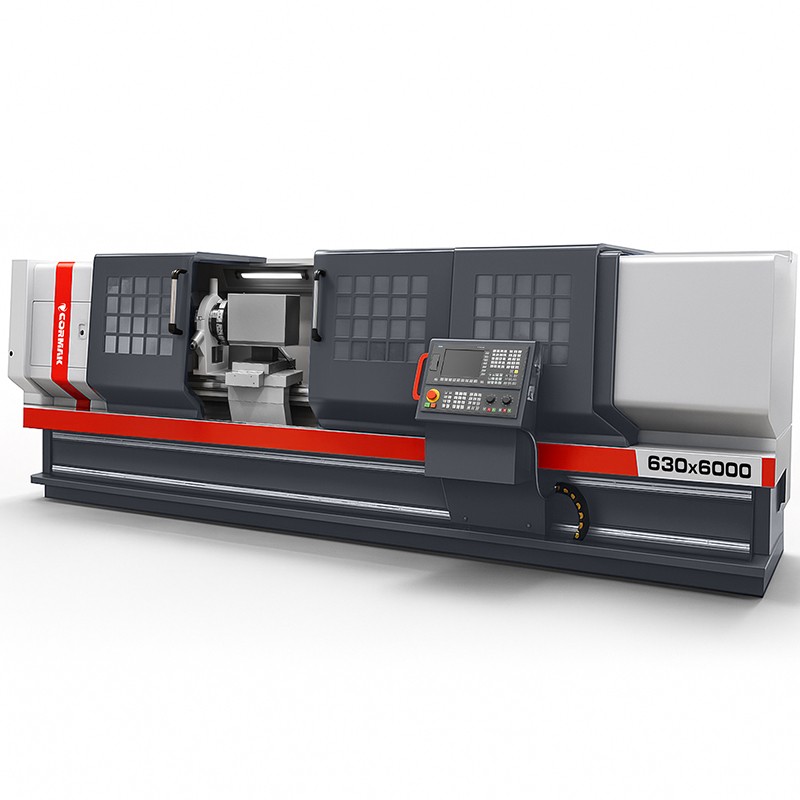

CNC Lathe 630x6000 – Advanced Technology for Industry

CNC Lathe 630x6000 is a professional numerically controlled machine designed for precise metal machining in demanding industrial environments. With its solid construction and advanced control systems, it ensures reliability and high productivity in both series and unit production.

Main Advantages of the CNC Lathe 630x6000

The CKT630x6000 CNC lathe offers a complete industrial solution, combining advanced technology with practical performance benefits. Its design and technical parameters ensure outstanding precision, efficiency, and versatility — meeting the expectations of even the most demanding production facilities. Key advantages include:

• High machining precision: Swing over bed of 630 mm and over carriage of 450 mm enable accurate machining of parts of various dimensions and shapes.
• Large centre distance: A distance of 6000 mm allows machining of extra-long components — ideal for heavy, shipbuilding and railway industries.
• High productivity: Spindle speeds from 30–800 rpm and rapid traverse rates on X/Z axes (6/8 m/min) shorten machining cycles and improve production efficiency.
• Durability and reliability: The 600 mm wide bed and automatic lubrication of gears and guideways ensure rigidity, accuracy, and low maintenance costs.
• Advanced automation: The 4-position tool turret (optionally 6 or 8) enables fast tool changes, boosting efficiency in complex operations.
• Intuitive operation: Siemens Sinumerik 808D control system (standard) with optional Sinumerik 828D or Fanuc Oi-TF interfaces offers user-friendly programming and setup.
• Safety and ergonomics: 24V halogen lighting and a coolant system ensure operator comfort and workplace safety.
• Versatile applications: Supports complex machining cycles such as threading, grooving, and drilling — thanks to advanced CNC controls.
• Economic operation: Intelligent lubrication and robust design reduce service frequency, lowering operating costs.
• Flexible configuration: Optional accessories such as a hydraulic chuck or chip conveyor allow the machine to be tailored to specific production requirements.

Construction and Technology

The CNC Lathe 630x6000 has been designed for durability, precision, and productivity in demanding industrial environments. The key design elements include:

• Heavy-duty machine bed: The 600 mm wide bed ensures excellent rigidity during the machining of large workpieces weighing up to 9100 kg.
• Large-spindle bore: Spindle through-hole of 130 mm with A2-11 mount allows machining of long and heavy components.
• Powerful spindle drive: A 15 kW motor delivers high performance for machining various materials, including steel and metal alloys.
• Automatic lubrication system: Reduces wear of gears and guideways, extending the machine’s service life.
• Tool turret: Standard 4-position (optional 6 or 8) turret allows quick tool change, enhancing process automation.
• Manual 3-jaw chuck: Ensures secure clamping of components with different shapes and dimensions.
• Cooling system: Provides optimal working conditions for tools and workpieces, improving machining quality and tool life.
• Manual tailstock: Equipped with a 75 mm diameter quill and MT5 taper, offering stable support for long workpieces.

Precision and Performance

The industrial CNC lathe 630x6000 offers outstanding precision thanks to advanced control systems such as Siemens Sinumerik and Fanuc Oi-TF. These systems enable easy programming of complex machining cycles, including threading, grooving, and drilling. Maximum X-axis travel of 330 mm and rapid traverse rates of 6/8 m/min on the X/Z axes ensure high accuracy and repeatability. The dynamic spindle drive and solid structure optimise production time — essential for both series and single-unit manufacturing.

Applications

The CNC Lathe 630x6000 is ideal for a wide range of industrial applications, including:

• Automotive industry: Production of precision components such as shafts, sleeves, and gears.
• Machinery manufacturing: Machining of large and precise machine elements.
• Serial and single-part production: Flexibility for both mass production and individual components.
• Energy sector: Turning of technically demanding elements such as turbine parts and shafts.
• Shipbuilding and railway industry: Machining of extra-long metal components up to 6000 mm in length.

The machine is an excellent choice for manufacturing plants seeking a reliable and versatile solution for metal machining.

Technical Data – CNC Lathe 630x6000

Standard Equipment

• Siemens Sinumerik 808 control panel in Polish
• Siemens servo drives
• Manual 3-jaw lathe chuck
• 4-position tool turret
• Set of soft jaws
• Manual tailstock
• Fixed steady rest
• Coolant system
• Automatic lubrication system for gears and guideways
• 24V halogen work light
• CE documentation

Optional Equipment*

• Siemens Sinumerik 828, Fanuc, or GSK control systems
• Travelling steady rest
• Hydraulic chuck
• Hydraulic tailstock
• Fixed steady rest
• Tool probe
• Chip conveyor
• Additional soft jaws
• Hard jaws
• Collet chucks
• Finished-part catcher
• Bar feeder
• Tool holders
• CAD/CAM software

*The listed price refers to the machine only and excludes optional/additional equipment, installation, transport, and training — please contact our consultant for details.

CNC Control Systems – Siemens Sinumerik 808D, 828D, and Fanuc Oi-TF

CNC lathes for metal from the 630x6000 series are equipped with renowned Siemens Sinumerik and Fanuc Oi-TF control systems, providing precision, reliability, and ease of use. Choosing the right control option allows you to adapt the machine to your specific production requirements.

Siemens Sinumerik 808D

Siemens Sinumerik 808D is an economical CNC control designed for entry-level users, offering an intuitive interface, high reliability, and compatibility with standard CNC machines.

Siemens Sinumerik 828D

Siemens Sinumerik 828D is an advanced system for demanding machining processes, offering powerful performance, advanced machining cycles, and full integration with CAD/CAM software.

Fanuc Oi-TF

Fanuc Oi-TF ensures exceptional stability and precision in turning operations, featuring an intuitive interface and advanced turning functions — ideal for serial and continuous production.

Trust CORMAK Expertise

With over 20 years of experience in delivering industrial machinery, CORMAK provides reliable solutions and professional technical support. Our CNC lathes meet European safety standards and are supported by a qualified team of engineers.

• 16 years of experience in Siemens CNC systems service and support.
• 15,000 m² of warehouse space with approximately 12,000 machines available.
• Professional consulting in selecting machines and production solutions.

User Manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual

Order the CNC Lathe 630x6000 Today!

Contact us to receive a detailed quotation and professional advice on choosing the right CNC lathe for metal machining. Invest in precision and productivity with CORMAK!

Contact us
