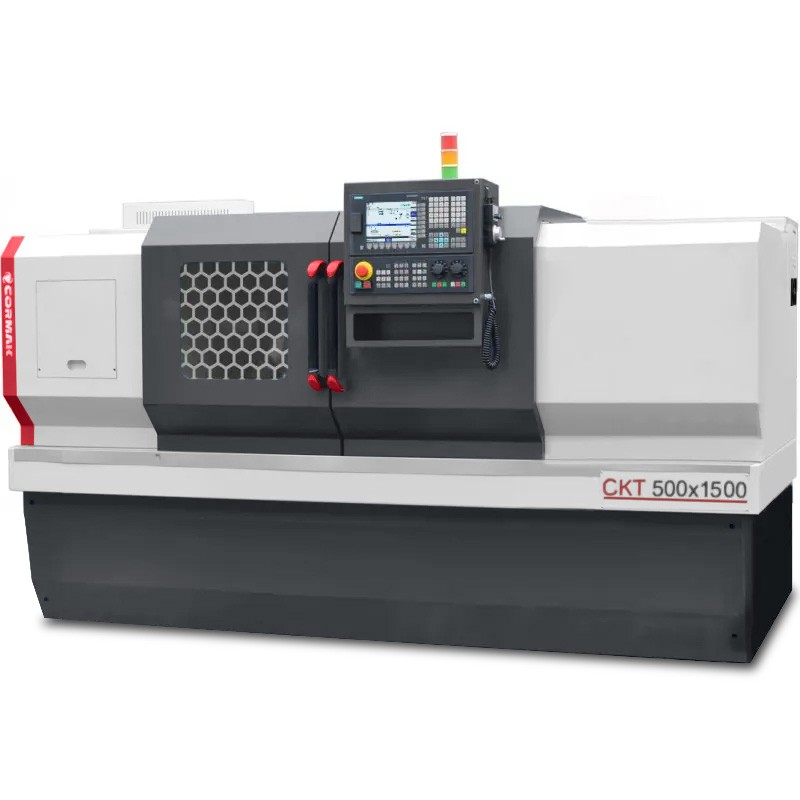

500x1500 CNC Lathe
Our CKT 500x1500 CNC Lathe is the epitome of machining excellence. Designed for a wide range of applications, this powerful machine offers not only external, internal, spherical and thread turning functions, but also uses canned cycles that greatly facilitate and speed up the programming and machining process.
Variant
CNC LATHE CORMAK 500x1000 MANUAL CHUCK SIEMENS SINUMERIK
CNC lathe 500x1000 HYDRAULICS
CKT 500x1000 CNC Lathe
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€36,592.50
The lowest price of this product in the last 30 days before the discount was €36,592.50 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
CKT 500x1500 CNC Lathe: Excellence in Machining Thanks to Innovative Solutions
Unmatched Features:
- Multifunctionality and Versatility : Thanks to the possibility of machining a variety of details, our lathe is an ideal solution for both series and small-scale production. Turning external, internal, spherical surfaces and threads becomes easy and precise.
- Intuitive Control : Advanced canned cycle control for face turning, plain turning, taper turning, threading, plunge cutting and contouring makes machine programming intuitive even for novice operators.
- Efficiency and Time Savings : Thanks to precise machining and fast programming, our CKT 500x1500 CNC Lathe translates into a significant reduction in machining time, which increases production efficiency.
When you invest in our CNC Lathe CKT 500x1500, you are investing in excellence. You are not only getting a reliable tool for machining
Technical data
|
Swing over bed |
500 mm |
|
Swing over cross slide |
280 mm |
|
Maximum turning length |
1500 mm |
|
Main drive |
3 gears |
|
Spindle speed |
50-1300 rpm |
|
Spindle bore |
85 mm |
|
Motor power |
7.5 kW / 11 kW |
|
X/Z axes rapid feed speed |
X:3000 Z:6000 (mm/min) |
|
Positioning accuracy |
X:0.030 Z:0.040 mm |
|
Detail precision |
IT6-IT7 |
|
Roughness |
Ra1.6 |
|
Number of tools in holder |
6-tool head |
|
Tool holder size |
25×25 mm |
|
Dimensions |
2655×1520×1860 mm |
|
Weight |
2400 kg |
Default equipment
- SIEMENS 808D control system
- hydraulic chuck and tailstock
- 6-tool head
- hydraulic chuck with 85 mm spindle bore
- Owner’s manual
- Technical and engineering documentation
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
