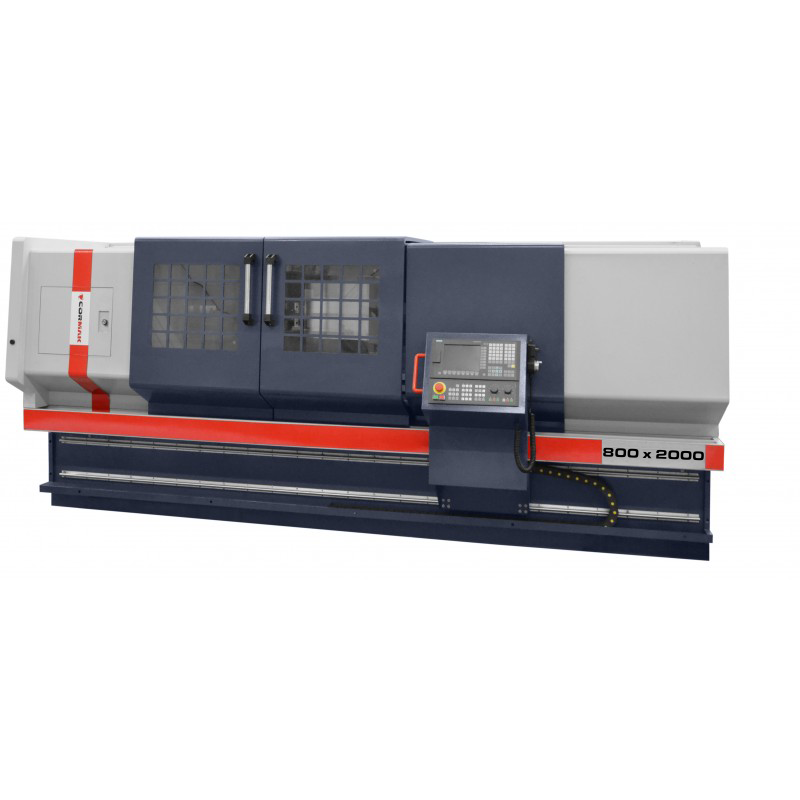

800x2000 CNC Lathe
The lathe remembers the actions performed by the operator and automatically converts them to G-codes. Then the operator presses the play button to obtain an identical copy of the workpiece. It allows you to cut CNC lathe setup time by half and work efficiency by 62%. Standard functions of a CNC lathe extended to include the capabilities of a conventional lathe. Manual feeds of the X and Z axes using 2 electronic knobs, semi-automatic transition by defining individual cycles
Variant
800x3000 CNC Lathe
800x1500 CNC Lathe
CNC LATHE CORMAK CKT800X4000 SIEMENS SINUMERIK
CNC LATHE CORMAK CKT800X4000 SIEMENS SINUMERIK
CNC LATHE CORMAK CKT800X5000 SIEMENS SINUMERIK
CNC LATHE CORMAK CKT800X5000 SIEMENS SINUMERIK
CNC LATHE CORMAK CKT800X6000 SIEMENS SINUMERIK
Are you a member of the VIES group?
VAT included
€47,324.25
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Characteristics of the 800x2000 CNC lathe
- manual movement of the Xi Z axis using electronic knobs
- semi-automatic shifting by defining individual cycles: turning of conical surfaces, threading
- SINUMERIK 808D: entry-level for standard CNC machines
- manually moves the X and Z axes using 2 electronic knobs
- User-customized cycle interface for easy part programming – extensive possibilities for programming turning cycles to a full part program
- induction hardened guides
- very dynamic main spindle drive thanks to actuators
- standard 200 mm clamping bracket with adjustable force
- low-maintenance machine operation thanks to the intelligent central lubrication unit
- longitudinal and transverse feed using high-quality lead screws
- 6-fold tool turret increases the degree of automation and efficiency, saving time with complex elements
Technical data of the CNC lathe 800x2000
| CENTER SPACE | 2000mm |
| MAXIMUM TURNING DIAMETER | 800mm |
| MAXIMUM TURNING DIAMETER OVER THE BRACKET | 520mm |
| BED WIDTH | 600mm |
| SPINDLE PASS | 104 mm (optional 130 mm) |
| SPINDLE SPEED | 22-108, 60-300, 240-1200 rpm |
| MAXIMUM X/Z AXIS TRAVEL | 420/1350, 2850 mm |
| ACCELERATED FEED SPEED OF THE X/Z AXIS | 4/8 m/min |
| POSITIONING ACCURACY | 0.03/0.04mm |
| REPEATABILITY OF THE X/Z AXIS | 0.012/0.02; 0.025mm |
| TAILOR BUSHING DIAMETER | 100mm |
| MAXIMUM TAILOR BUSH TRAVEL | 250mm |
| TAILOR BUSH END | MK5 |
| NUMBER OF TOOLS | 6 (option 8) |
| TOOL SIZE | 32x32mm |
| MAXIMUM LOAD CAPACITY | 1700 kg |
| ENGINE POWER | 15 kW |
| WEIGHT | 5800 kg |
| DIMENSIONS | 4150x2010x2100mm |
Equipment depends on version
- Full coverage of the workspace
- 4-tool post (option 6,8)
- hand knobs (option)
- 3-jaw chuck 320
- handle + manual tailstock (hydraulic option)
- control: FANUC, SIEMENS 828D
- cooling system
- lighting
- fixed rest + movable rest
- user manual in Polish
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
