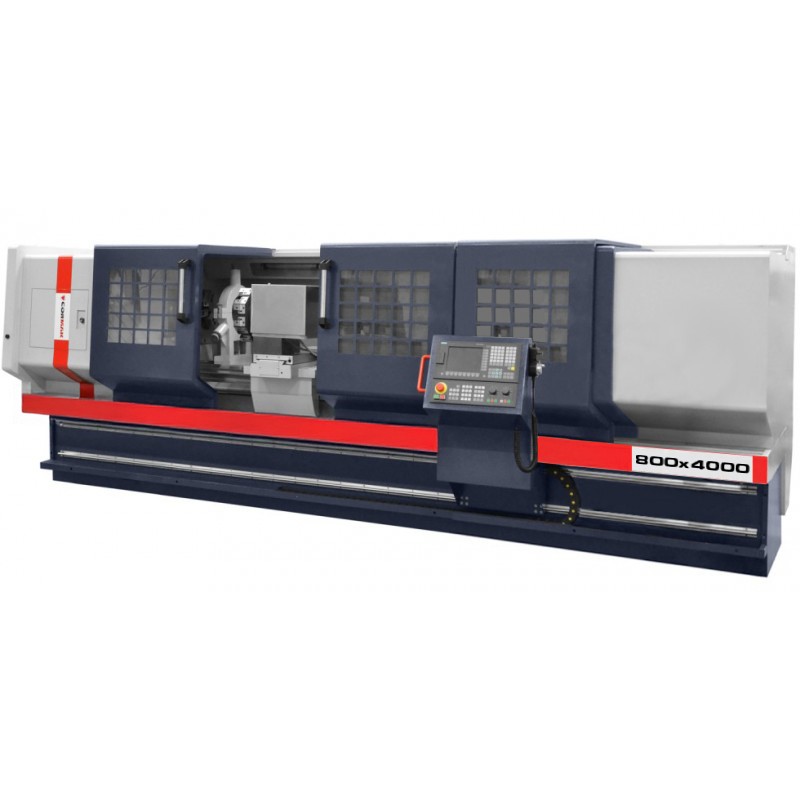

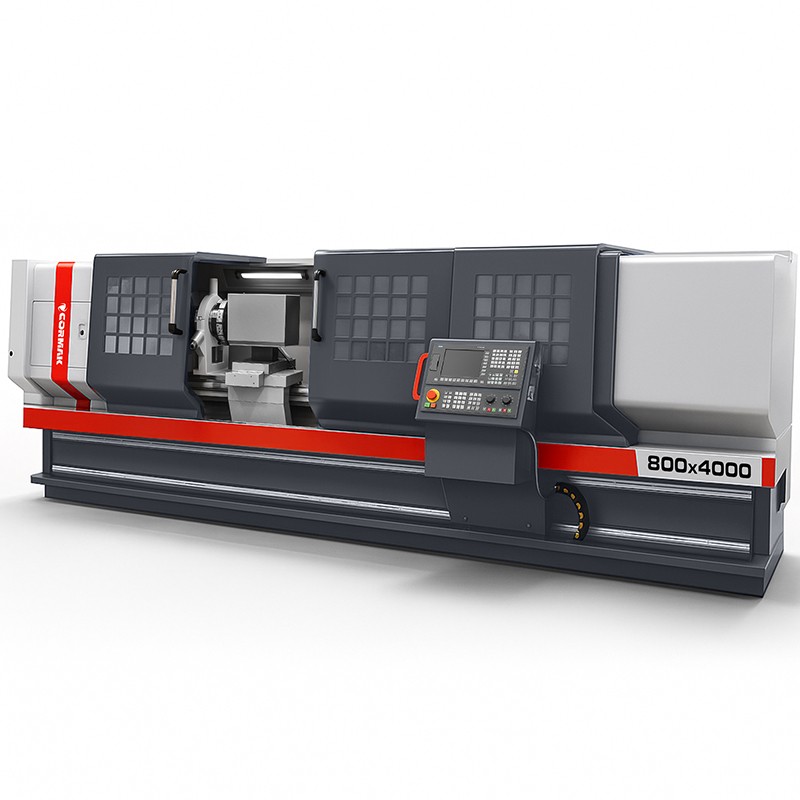

CNC LATHE CORMAK CKT800X4000 SIEMENS SINUMERIK
The CKT800x4000 CNC lathe is a reliable solution for both experienced specialists and those starting out in serial and individual production. Designed with maximum cutting efficiency in mind, it provides excellent results even with intensive use.
Thanks to its solid construction and wide guides, the machine guarantees exceptional stability, high precision and full repeatability of processing. This is a professional tool that will work perfectly in demanding production plants, combining durability, efficiency and reliability.
Variant
800x2000 CNC Lathe
800x3000 CNC Lathe
800x1500 CNC Lathe
CNC LATHE CORMAK CKT800X4000 SIEMENS SINUMERIK
CNC LATHE CORMAK CKT800X5000 SIEMENS SINUMERIK
CNC LATHE CORMAK CKT800X5000 SIEMENS SINUMERIK
CNC LATHE CORMAK CKT800X6000 SIEMENS SINUMERIK
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€60,823.50
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
CKT800x4000 CNC Lathe – Professional Precision and Reliability in Metalworking
Why choose our lathe?
- Solid construction: The machine has been designed with durability and resistance to intensive use in mind. Its stable construction guarantees reliable operation even with long-term use.
- Precise machining: Advanced turning functions enable precise machining of parts of various shapes and sizes, ensuring the highest level of precision.
- Intuitive operation: Simple and clear control makes it easier for both experienced operators and people who are just starting their adventure with CNC. Reduced programming time translates into greater efficiency and ease of use.
Technical data of the CKT800X4000 CNC lathe
| Control | Sinumerik 808 |
|---|---|
| Center spacing | 4000 mm |
| Turning diameter over bed | 800 mm |
| Turning diameter over support | 450 mm |
| Bed width | 600 mm |
| Lathe chuck | manual |
| Tailstock | manual |
| Spindle nose | A2-11 |
| Spindle bore | 100 mm |
| Tool post | 4-position (OPTION 6,8) |
| Spindle speed | 30–800 rpm |
| Maximum X-axis travel | 330 mm |
| Accelerated feed X/Z axis | 6/8 m/min |
| Tailstock quill diameter | 75 mm |
| Maximum tailstock quill travel | 250 mm |
| Tailstock quill taper | MK5 |
| Motor power | 15 kW |
| Weight | 8600 kg |
Available equipment
- SIEMENS SINUMERIK 808 control in Polish
- SIEMENS servo drives
- Manual 3-jaw lathe chuck
- 4-position turret head
- Soft jaw set
- Manual tailstock
- Steady rest
- Cooling system
- Automatic lubrication system for gears and guides
- 24V halogen lighting
- Technical and operational documentation (DTR) in Polish
Optional equipment
- Available controls: SINUMERIK 828, Fanuc, GSK
- Moving steady rest
- Hydraulic chuck
- Hydraulic tailstock
- Steady rest
- Tool probe
- Chip conveyor
- Additional soft jaws
- Hard jaws
- Collet chucks
- Machined parts gripper
- Bar feeder
- Tool holders
- CAD/CAM software
CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF
We offer professional CNC controls from renowned brands Siemens and Fanuc, which provide precision, efficiency and ease of use. Our solutions are ideal for both smaller workshops and demanding industrial applications.
Siemens Sinumerik 808D – compact CNC control for basic applications
Siemens Sinumerik 808D is a modern, economical CNC control dedicated to entry-level lathes and milling machines. The system was designed with small and medium-sized enterprises in mind, offering:
- Intuitive operation – a simple interface based on a graphic screen that makes it easy to program and configure the machine.
- High reliability – a durable design resistant to difficult working conditions in the workshop.
- Wide compatibility – adapted to machines with basic technological requirements.
- A perfect solution for beginner CNC users who want to start working on a modern control system.
Siemens Sinumerik 828D – advanced control for demanding applications
Sinumerik 828D is a professional CNC control designed to work with milling machines and lathes requiring greater precision and efficiency. Its key features include:
- High computing power – fast data processing enables dynamic and accurate machining.
- Extensive technological functions – advanced machining cycles, interpolation and tool path optimization functions.
- Solid, compact design – designed to work in difficult industrial conditions.
- Easy integration with automation – expandable with additional modules and production process control options.
- Compatibility with CAD/CAM – seamless cooperation with design software and production management systems.
This is an excellent choice for companies looking for efficient and reliable CNC control for more complex machining operations.
Fanuc Oi-TF – stability and precision in machining lathe
Fanuc Oi-TF is one of the most popular CNC controls for lathes, known for its reliability and ease of use. This system is widely used in the metalworking industry thanks to:
- Exceptional work stability – reliability and precision of operation even in long-term serial production.
- Advanced turning functions – supports various turning cycles, including thread turning, grooving, drilling and other cutting operations.
- Intuitive user interface – quick programming and easy operation thanks to a clear screen and optimized menu.
- Wide compatibility – ability to work with many models of turning machines.
- Effective process optimization – the Fanuc system allows for better control over machining parameters, which saves time and materials.
Thanks to Fanuc Oi-TF, users gain the certainty of stable and precise work, which translates into greater efficiency and quality of machining.
Choosing the right CNC control is crucial for the efficiency and precision of machining. Siemens Sinumerik 808D is the ideal solution for basic applications, Siemens Sinumerik 828D will work well in more demanding production processes, while Fanuc Oi-TF guarantees the highest stability and reliability in lathe machining.
Contact us - we will help you choose the CNC control best suited to your needs!
