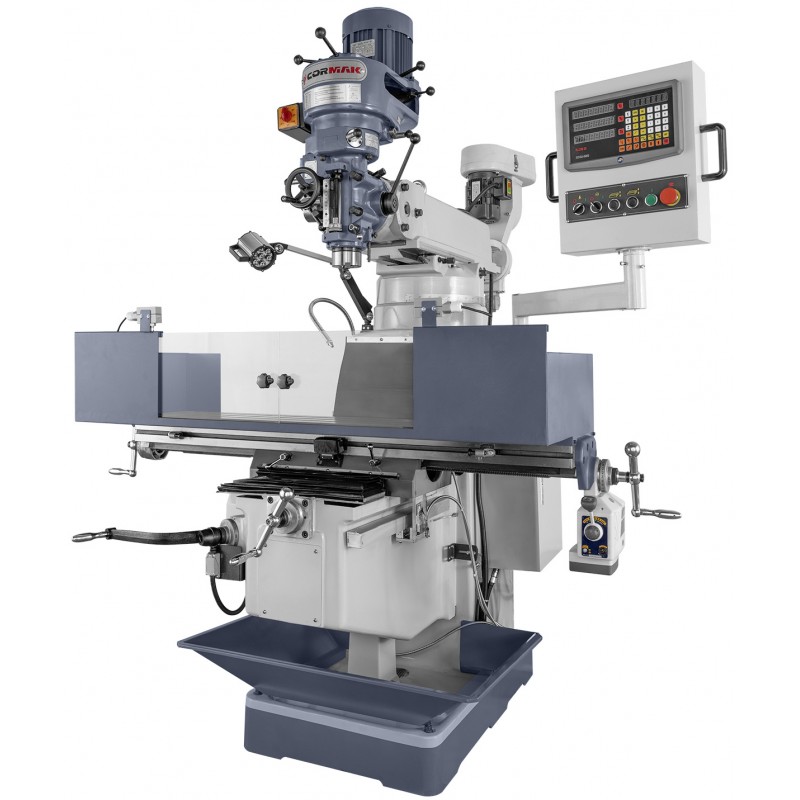

Our CORMAK MFM250 Universal Multi-Purpose Milling Machine is a versatile tool that revolutionises metal machining. With a head tilting on two axes, allowing a right/left tilt of ±90° and a front/back tilt of ±45°, this machine performs precise and complex milling operations. Featuring three automatic feeds, manual quill coarse feed and a 3-axis digital readout, the MFM250 is ideal for both single-piece and series production. Additional features such as central lubrication, manual spindle brake and a cooling system with chip tray make it indispensable in any modern workshop. The optional slotting head further enhances its versatility, allowing adaptation to a wide range of machining tasks.

Variant
Universal Multi-Purpose Milling Machine CORMAK MFM320
Universal Multi-Purpose Milling Machine CORMAK MFM320
Universal Multi-Purpose Milling Machine CORMAK MFM380
Universal Multi-Purpose Milling Machine CORMAK MFM380
Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.

Save €3,075.00
VAT included
€10,424.25
Cena regularna: €13,499.25
The lowest price of this product in the last 30 days before the discount was €10,424.25 gross
There are not enough products in stock


  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    149,00 PLN

Machine description

  • Head Tilting on Two Axes: Equipped with an innovative head tilting on two axes, this milling machine enables precise machining with a right/left tilt of ±90° and a front/back tilt of ±45°, providing exceptional flexibility in the machining process.

  • Manual Quill Coarse Feed: The manual quill coarse feed function allows the milling process to be adjusted to individual requirements and material specifications.

  • Right–Left Direction Switch: A convenient direction switch enables easy adjustment of the milling direction, increasing operational flexibility.

  • Centralised Lubrication of Spindle, Nuts and Guides: The central lubrication system ensures long machine life by minimising wear and reducing the risk of failure.

  • Manual Spindle Brake: Provides precise control over the milling process, ensuring safety and accuracy.

  • Cooling System with Chip Tray: The efficient cooling system with chip tray maintains optimal temperature during machining, ensuring excellent working conditions.

  • Slotting Head (Optional): The optional slotting head further increases the machine’s functionality, enabling a variety of machining operations.

  • 3-Axis Digital Readout: The 3-axis DRO provides precise positioning and simplifies programming, reducing production time.

Our CORMAK MFM250 Universal Multi-Purpose Milling Machine is not just a tool – it’s an innovative solution that elevates your machining capabilities to the next level. With its advanced features, this machine is ideal for both unit and serial production, delivering reliability, precision and high performance.

Technical parameters

WORKTABLE DIMENSIONS

1370 × 254 mm

LONGITUDINAL TABLE TRAVEL

850 mm

CROSS TABLE TRAVEL

400 mm

VERTICAL TABLE TRAVEL

420 mm

DISTANCE FROM SPINDLE TO TABLE SURFACE

0 – 405 mm

DISTANCE FROM SPINDLE TO COLUMN

200 – 700 mm

SPINDLE TAPER

ISO 40

QUILL TRAVEL

127 mm

SPINDLE SPEEDS

(16 speeds) 65 – 4500 rpm

MOTOR POWER S1/S6

2.25 kW / 3 kW

DIMENSIONS

2550 × 2200 × 2240 mm

WEIGHT

1550 kg

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
