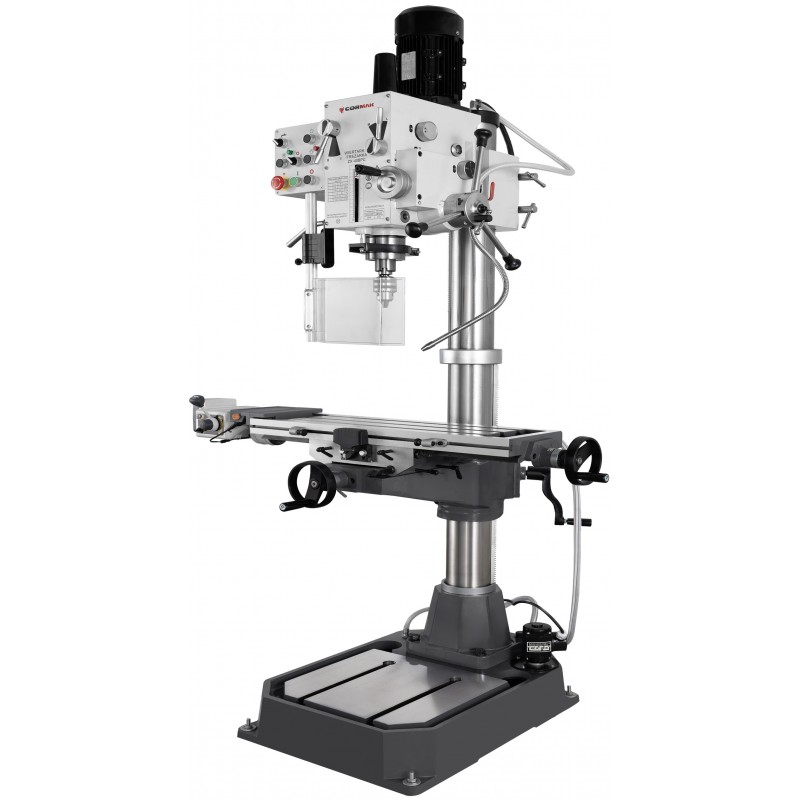

Drilling–Milling Machine CORMAK ZX40BPC

Reduced price

The CORMAK ZX40BPC is a robust drilling–milling machine for metalworking. Its head can swivel ±90°, and the spindle offers the same angular adjustment. The machine features automatic spindle feed, left and right spindle rotation, a large working table, coolant system, and optional automatic table feed in the X axis. Powered by a strong 1.1 kW motor, it can drill holes up to 40 mm in diameter and reach spindle speeds of up to 1600 rpm.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

~~€3,125.00~~

€2,875.00

The lowest price of this product in the last 30 days before the discount was €2,875.00 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

The CORMAK brand is a recognised manufacturer of high-quality tools and machines for the woodworking and metalworking industries. The company offers a wide range of products, including circular saws, lathes, milling machines, drills, grinders, presses, planers and many more. With years of market experience and advanced technology, CORMAK has earned the trust of professionals worldwide.

Features of CORMAK products:

Durability – all machines and tools are made from the highest quality materials, ensuring longevity and reliability in operation.
Precision – advanced production technologies guarantee high accuracy, which is crucial for precise machining operations.
Innovation – technical solutions applied in CORMAK products increase work efficiency and user convenience.

CORMAK is a continuously developing brand, gaining more satisfied customers worldwide in both the woodworking and metalworking industries.

Adjustable working flexibility – thanks to the swivel head and adjustable height of the unit.
Tapping function and right/left spindle rotation for greater versatility during work.
Precise depth control – through a three-arm lever and fine handwheel with depth scale.
Automatic spindle feed – for improved precision and comfort while drilling.
Advanced oil gear transmission – with ground and hardened gears for smooth and durable operation.
Stable construction – solid base ensuring rigidity and vibration-free operation.
High performance – powerful motor ensures efficient drilling even in hard materials.
Rigid column – with finely ground surface for stiffness and accuracy.
Safety guard – hinged plexiglass chuck guard for additional operator protection.
Heavy-duty cast column – providing high machining accuracy and long service life.
Work table with T-slots (14 mm) – allows quick and easy vice or tooling setup.
Cooling system – included as standard, enabling safe and efficient operation during long machining cycles.

Technical data

Max drilling capacity (steel/cast iron)	32 / 40 mm
Face milling width	80 mm
End milling width	22 mm
Spindle travel	125 mm
Spindle taper	MT4
Number of speeds	6
Spindle speed (rpm)	95–1600 rpm (95, 170, 280, 540, 960, 1600)
Max distance spindle nose–table	735 mm
Max distance spindle nose–base	1245 mm
Distance spindle–column	272 mm
Work table size (upper)	730 × 210 mm
Base dimensions	690 × 520 mm
Motor power S1	1.1 kW
Motor power S6	1.5 kW
Coolant pump motor	40 W
Machine dimensions (with base)	1200 × 1000 × 1910 mm
Net / gross weight	375 / 410 kg
