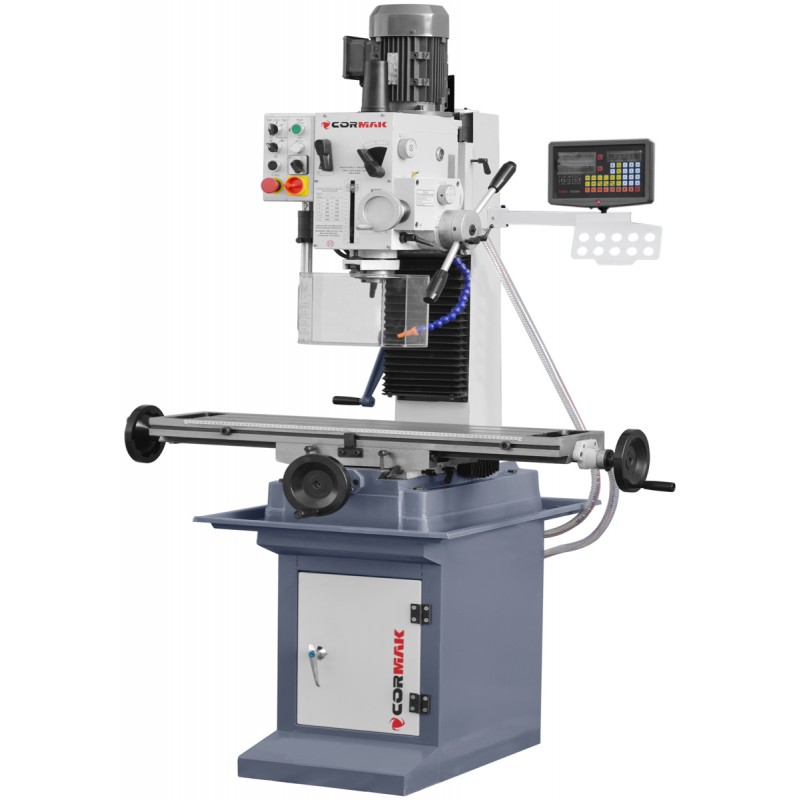

Drilling–Milling Machine CORMAK ZX7045 BXL DRO
The CORMAK ZX7045 BXL DRO drilling–milling machine is an advanced tool designed for drilling, reaming, enlarging holes, tapping, milling, and slotting. Perfect for cast iron machining, it allows precision operations with hole diameters up to 32/45 mm and thread tapping up to M12. With milling capacity up to 80 mm and slot width up to 22 mm, it offers wide functionality. The ZX7045 BXL DRO version stands out with a large 1000 × 240 mm working table and an integrated digital readout system for improved accuracy and ease of operation. Ready for immediate use directly from stock, this machine is ideal for professionals demanding high performance and precision in metalworking.
Variant
Drilling–Milling Machine CORMAK ZX7045 B1
Drilling–Milling Machine CORMAK ZX7055 DRO
Drilling–Milling Machine CORMAK ZX7045 B1 DRO
Drilling–Milling Machine CORMAK ZX7045
Drilling–Milling Machine CORMAK ZX7045 230 V
Drilling–Milling Machine CORMAK ZX50BPC
Drilling–Milling Machine CORMAK ZX7045E 400V
Drilling–Milling Machine CORMAK ZX7045E DRO
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€3,949.75
Cena regularna:
€4,366.50
The lowest price of this product in the last 30 days before the discount was €3,949.75 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
149,00 PLN
Machine features
- Heavy, rigid cast-iron body
- Digital readout system (DRO) included
- Automatic spindle feed
- Integrated coolant system
- Head height adjusted on the support, not on the column
- Massive cross table with precision-ground surface
- Dovetail-type guideways
- Quiet operation thanks to ground gears
- Right and left spindle rotation
- Swivelling head ±90°
- Adjustable head height
Technical data
| Max drilling capacity (steel/cast iron) | 32 / 45 mm |
| Max face milling diameter | 80 mm |
| Max end milling diameter | 32 mm |
| Table size | 1000 × 240 mm |
| Table travel (X / Y / Z) | 700 / 210 / 380 mm |
| Distance spindle nose–table | 80 – 460 mm |
| Spindle quill travel | 120 mm |
| Spindle–column distance | 290 mm (to guard 230 mm) |
| Head swivel angle | ±90° |
| T-slot width | 14 mm |
| Spindle speeds | 75 / 150 / 180 / 280 / 360 / 560 / 600 / 1000 / 1200 / 1600 / 2000 / 3200 rpm |
| Spindle feed rates | 0.1 / 0.18 / 0.26 mm/rev |
| Spindle taper | MT4 |
| Power supply | 400 V |
| Motor power | 1.8 kW / 2.5 HP |
| Overall dimensions | 1300 × 820 × 2200 mm |
| Weight | 360 kg |
Standard equipment
- Drill chuck B16 – 13 mm
- Arbor MK4/B16
- Arbor MK4/D27
- Reducing sleeve MK4/MK3
- Reducing sleeve MK3/MK2
Optional accessories
- Swivel vices
- Tilting vices
- Precision vices
- Rotary tables
- Dividing heads
- Tapping heads
- Milling heads
- End mills (HSS, HSSE, HSS-PM, VHM)
- Straight-shank drills
- Taper-shank drills
- Milling inserts
- Hand and machine taps
- Clamping kits
- Tool holders (collet or Weldon type)
- Driving arbors
- Drill chucks
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
