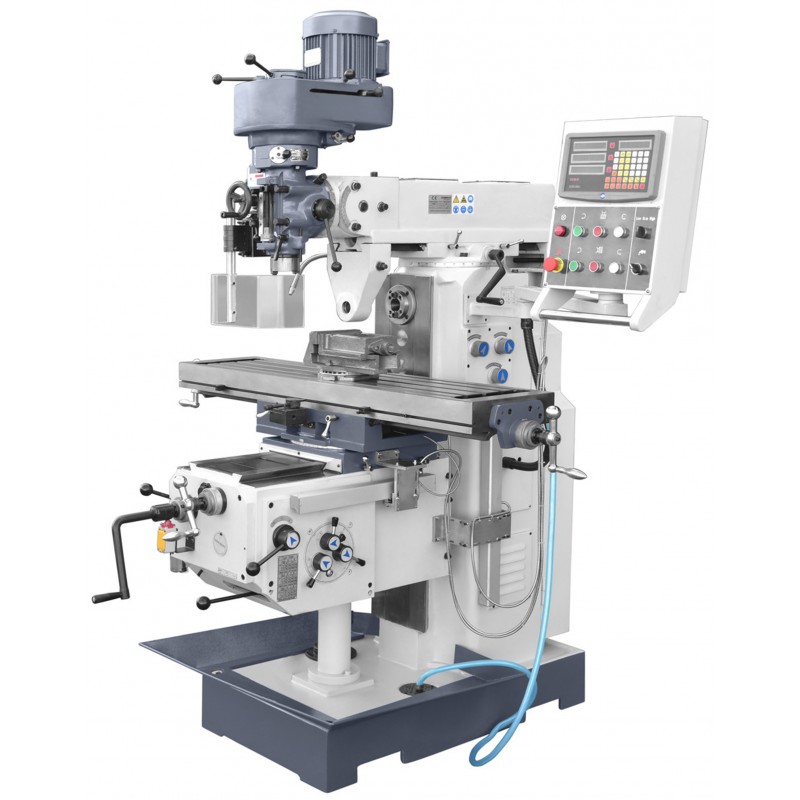

The CORMAK MFM320 Universal Multi-Purpose Milling Machine features a swivelling head in three axes. This machine offers extensive technological capabilities, making it suitable for both single-piece and serial production. It is equipped with stepless spindle speed adjustment, hardened guideways and a central lubrication system for guides. The machine is available directly from stock.
|
MAX DRILLING DIAMETER |
50 mm |
|
MAX HORIZONTAL MILLING WIDTH |
80 mm |
|
MAX VERTICAL MILLING WIDTH |
25 mm |
|
SPINDLE TAPER |
ISO 40 |
|
NUMBER OF SPINDLE SPEEDS VERTICAL / HORIZONTAL |
8 / 12 |
|
VERTICAL SPINDLE SPEED RANGE |
66 – 4540 rpm |
|
HORIZONTAL SPINDLE SPEED RANGE |
32 – 1320 rpm |
|
DISTANCE FROM SPINDLE TO COLUMN SURFACE |
200 – 550 mm |
|
DISTANCE FROM SPINDLE TO TABLE SURFACE |
100 – 480 mm |
|
DISTANCE FROM HORIZONTAL SPINDLE AXIS TO TABLE SURFACE |
0 – 320 mm |
|
VERTICAL SPINDLE TRAVEL |
120 mm |
|
TABLE DIMENSIONS |
1370 × 320 mm |
|
TABLE TRAVEL |
750 × 320 mm |
|
MOTOR (VERTICAL / HORIZONTAL) |
2.2 / 2.2 kW |
|
OVERALL DIMENSIONS |
1900 × 1800 × 2340 mm |
|
WEIGHT |
1450 kg |
