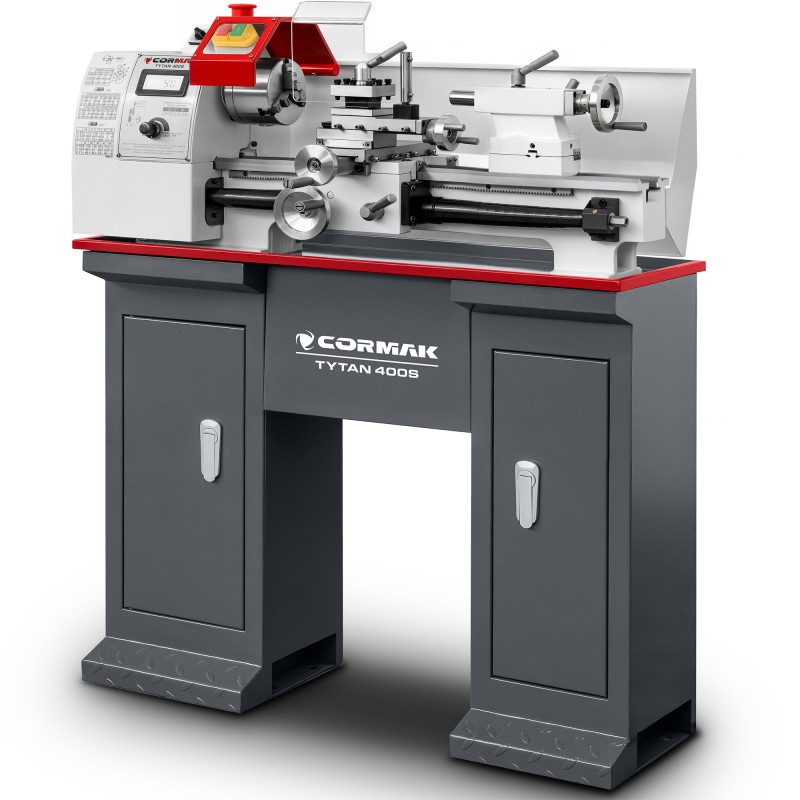

The conventional universal lathe CORMAK TYTAN 210x400 VARIO 230V is a compact metal lathe designed for precision machining of components in workshops, toolrooms and small production plants. Thanks to smooth spindle speed adjustment, a solid construction and extensive threading capabilities, the machine ensures high machining accuracy and comfortable everyday operation. It is a reliable conventional lathe that performs well in single-item production, as well as service and prototype work.
CORMAK TYTAN 210x400 VARIO 230V universal lathe – precision, reliability and wide machining capabilities
The universal lathe CORMAK TYTAN 210x400 VARIO has been designed for users who expect high precision and easy operation. Electronic, stepless speed control enables quick adjustment of cutting parameters to the type of material being machined without the need for time-consuming gear changes.
The machine enables a wide range of technological operations to be carried out, such as:
- external and internal turning,
- turning cylindrical and tapered surfaces,
- face turning,
- metric and inch threading,
- drilling, reaming and countersinking holes,
- machining components made of steel, aluminium, brass and engineering plastics.
The drive provided by an efficient 750 W motor works with an electronic speed control system, ensuring stable operation even when machining demanding materials. The speed range of 50–2500 rpm allows the optimum speed to be selected for both rough turning and precise surface finishing.
Main advantages of the machine
- Smooth spindle speed adjustment in the range of 50–2500 rpm.
- 750 W / 230 V motor ensuring stable operation.
- Compact construction ensuring rigidity during machining.
- 4-position tool post enabling quick tool changes.
- Capability to cut metric and inch threads.
- Spindle with MK3 taper and 21 mm bore.
- Forward/reverse operation increasing the functionality of the machine.
- Opening spindle guard improving operator safety.
- Swarf tray helping to keep the workstation clean.
Construction and technical solutions used
Stable bed and precision guideways
The bed width of 100 mm provides adequate structural rigidity during turning. Precisely made guideways reduce vibrations and make it possible to obtain a high surface quality on machined workpieces.
Electronic speed control
The use of stepless speed control allows the operator to instantly adjust operating parameters to the type of material and tool. The LCD display enables ongoing monitoring of the spindle speed.
Spindle and threading system
The spindle with MK3 taper and 21 mm bore guarantees stable clamping of the material being machined. The extended gear system enables a wide range of metric and inch threads to be cut.
Precision and work efficiency
The combination of electronic speed control, a precision carriage and a stable tailstock enables high dimensional accuracy to be achieved. The metal lathe CORMAK TYTAN performs excellently in short-series production, making individual parts, repairing machine components and toolroom work requiring high repeatability.
Application
- metalworking workshops,
- toolrooms,
- production plants,
- maintenance service departments,
- training workshops,
- single-item and small-series production.
Standard equipment
- lathe stand,
- fixed and travelling steady rest
- 3-jaw chuck,
- right and left jaws
- threading gears,
- MK2 dead centre,
- oil gun,
- swarf tray,
- chuck and tool post key,
- open-ended and Allen keys,
- fuses,
- user manual,
- CE declaration of conformity.
Optional equipment
- 4-jaw chuck,
- tool holders,
- live centres,
- lathe tools,
- drill chucks for the tailstock.
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
Technical specifications – TYTAN 400S
| TECHNICAL SPECIFICATIONS |
|---|
| Turning diameter over bed |
210 mm |
| Turning diameter over cross slide |
135 mm |
| Distance between centres |
400 mm |
| Bed width |
100 mm |
| Headstock |
|---|
| Spindle bore |
21 mm |
| Taper in spindle nose |
MK3 |
| Number of spindle speeds |
variable |
| Spindle speed range |
50 - 2500 rpm |
| Feed and threading |
|---|
| Number of metric threads |
14 |
| Metric thread range |
0.3~3 mm |
| Number of inch threads |
10 |
| Inch thread range |
10 - 44 threads per inch |
| Longitudinal feed range |
0.089 - 0.198 mm/rev. |
| Cross slide and longitudinal carriage |
|---|
| Tool post type |
4-way |
| Maximum travel of tool post slide |
65 mm |
| Maximum cross slide travel |
80 mm |
| Maximum longitudinal carriage travel |
276 mm |
| Machine tailstock |
|---|
| Tailstock quill travel |
50 mm |
| Taper in tailstock spindle |
MK2 |
| Main motor S1/S6 |
750W/ 1000W / 230V / 1Ph / 50Hz |
| Dimensions |
|---|
| Length |
900 mm |
| Width |
400 mm |
| Height |
1120 mm |
| Weight (with stand) |
63 kg |
The universal lathe CORMAK TYTAN 210x400 VARIO 230V is a proven solution for professionals who expect high precision, reliability and a wide range of machining capabilities. Choose an efficient conventional lathe that will ensure accurate metal machining and comfortable work for many years.
