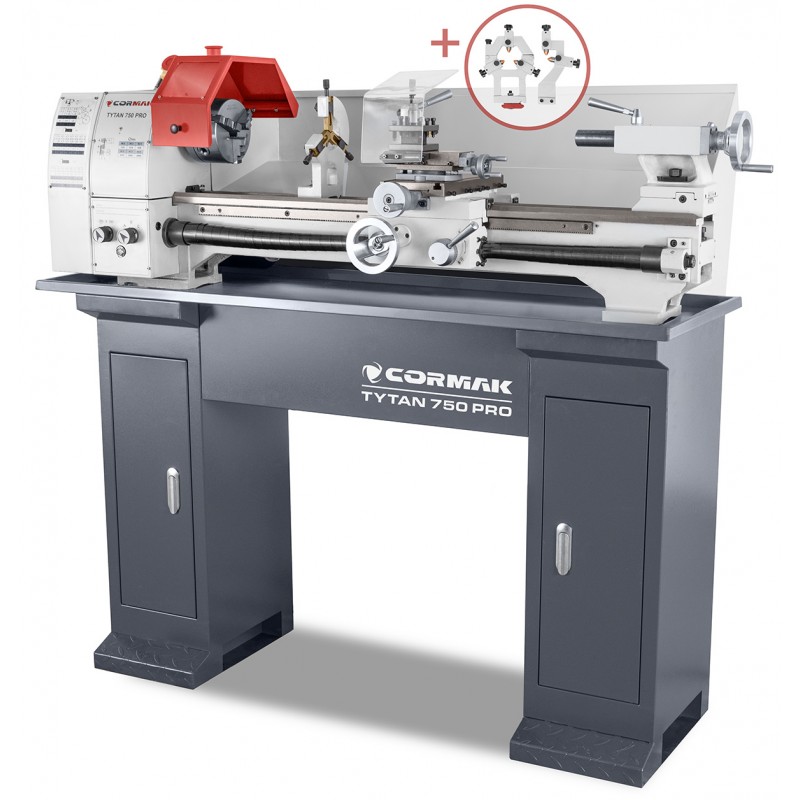

Conventional Universal Lathe CORMAK TYTAN 250x750 PRO 400V with Stand

Conventional Universal Lathe CORMAK TYTAN 250x750 PRO 400V with Stand – durable compact metal lathe with complete equipment

CORMAK TYTAN 250x750 PRO 400V with stand is a fully equipped conventional metal lathe designed for professional machining applications in industrial plants, tool workshops, and maintenance departments. The PRO version, powered by a three-phase 400V motor, offers high torque, stability, and precision. The included steel stand ensures safe and ergonomic operation while improving rigidity and vibration damping. It is a compact precision lathe with extended technological capabilities.

Main advantages

• Complete workstation – machine + stand – provides a stable setup, reduces vibration, and improves operator ergonomics.
• Lead screw feed – enables automatic longitudinal feed and precise metric and inch threading.
• Hardened and ground 135 mm bed – ensures rigidity and long service life during intensive operation.
• Precision spindle – mounted on P5 taper roller bearings for perfect concentricity and smooth rotation.
• Variable spindle speed – 6 ranges (125–2000 rpm) allow adjustment to material type and operation.
• Operator safety – integrated motor overload protection with signal indicator and undervoltage release system.

Construction and technology

The CORMAK TYTAN 250x750 PRO universal lathe with stand is engineered for long-term industrial use. The heavy cast-iron body effectively dampens vibration, ensuring stability and machining accuracy. A 29 mm spindle bore enables the processing of longer workpieces, while the MK4 spindle taper allows the use of a wide range of accessories. The guideways, equipped with adjustable locking strips, ensure precise calibration and consistent geometry.

Precision and performance

The machine offers high machining accuracy thanks to its fine alignment and tight tolerances. Integrated longitudinal and cross feeds, along with the ability to cut 18 metric and 21 imperial thread types, make it a versatile tool for various turning operations. The included steel stand provides a comfortable working height and eliminates the need for a separate workstation setup.

Applications

The CORMAK TYTAN 250x750 PRO 400V metal lathe with stand is designed for:

• Locksmith and service workshops,
• Industrial plants and maintenance departments,
• Training and technical centres,
• Single-piece and repair production,
• Users requiring a complete and reliable turning solution.

Standard equipment

• Steel stand for the lathe
• 3-jaw chuck (125 mm) with internal and external jaws
• Fixed and travelling steady rests
• Change gears
• Dead centres MK2 and MK4
• Oil gun
• Chip tray
• Chuck and tool post keys
• Service tool kit
• Safety guards compliant with CE standards
• User manual
• CE Declaration of Conformity

Optional equipment

• Live centre MK2
• Drill arbor MK2/B16
• Drill chuck B16 3–16 mm
• 12×12 mm turning tool set
• HSS-Co5 cobalt drill set (1–10 mm)
• Universal coolant system
• Cutting oil ES-12 (1L)

Technical specifications

Choose quality and completeness – invest in the CORMAK TYTAN 250x750 PRO 400V universal lathe with stand. Order online now or contact our technical advisor to customise your setup for specific machining needs.
