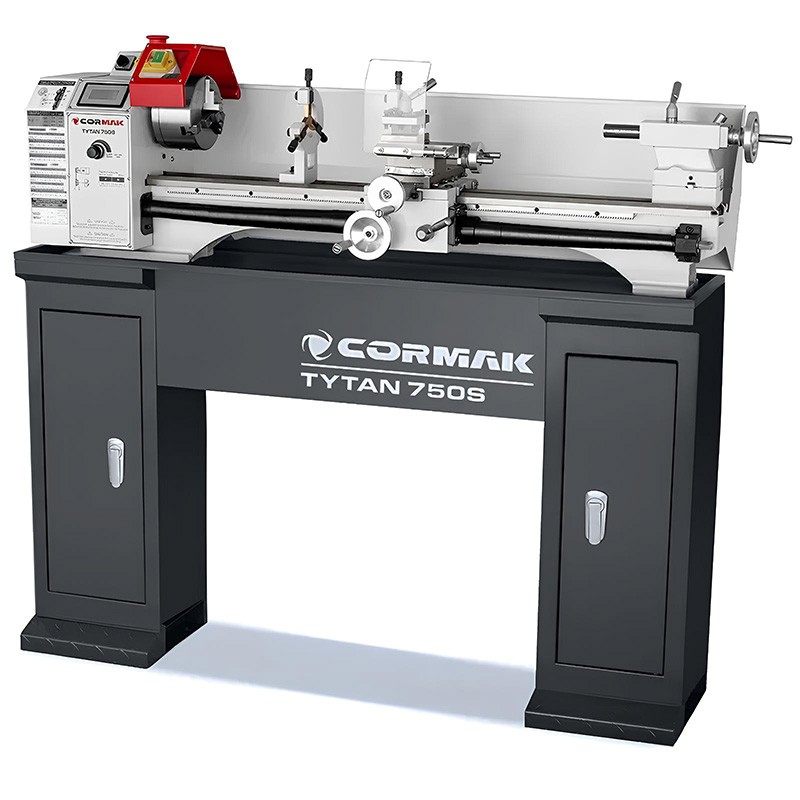

Conventional Universal Lathe CORMAK TYTAN 220x750S VARIO 230V – precision metalworking with variable spindle speed
CORMAK TYTAN 220x750S VARIO 230V is a compact and efficient universal metal lathe designed for precise metalworking in workshop, maintenance, and small-scale production environments. Thanks to its infinitely variable spindle speed control and a modern DC motor, this conventional lathe offers exceptional operating flexibility and a high-quality surface finish. It is the perfect choice for users seeking a reliable, versatile, and ergonomic small lathe with a wide range of machining capabilities.
Main advantages
- Infinitely variable spindle speed control – ensures optimal settings for different materials.
- Two speed ranges – 50–1125 rpm for hard materials and 100–2500 rpm for high-speed precision turning.
- Modern DC motor – 1000 W power ensures smooth and stable operation.
- LCD display – shows real-time spindle speed for precise control during operation.
- Wide threading range – metric threads (0.4–3.5 mm) and inch threads (8–44 TPI), right and left-hand threading.
- Automatic feed – improves repeatability and machining efficiency.
- Solid cast-iron construction – minimises vibration and increases cutting stability.
Construction and technology
The body of the CORMAK TYTAN 220x750S VARIO conventional lathe is made of high-quality cast iron, ensuring durability and vibration resistance. The 100 mm-wide bed with hardened guideways guarantees long-term turning precision. The spindle with a MK5 taper, mounted on tapered roller bearings, allows stable machining of workpieces up to 220 mm in diameter over the bed and 110 mm over the cross slide. The 38 mm spindle bore enables processing of longer bar stock.
Precision and efficiency
Variable spindle speed control and a rigid carriage design provide excellent surface finish and dimensional accuracy. The ergonomic control layout and LCD speed display enhance operator comfort and reduce setup time. The CORMAK TYTAN 220x750S VARIO compact lathe guarantees repeatable machining performance for both single and small-batch production.
Applications
The TYTAN 220x750S VARIO model is dedicated to:
- Mechanical and metal workshops,
- Technical schools and training centres,
- Maintenance departments in industrial plants,
- Service and repair workshops for industrial machinery and equipment.
A reliable universal lathe for machining non-ferrous metals, structural and stainless steels, and plastics.
Standard equipment
- 3-jaw chuck (125 mm)
- Fixed and travelling steady rests
- Change gears
- Dead centres MK2 and MK4
- Oil gun
- Chip tray
- Chuck and tool post keys
- Service tool kit
- Safety guards compliant with CE standards
- User manual
- CE Declaration of Conformity
Optional equipment
- Machine stand
- 12×12 mm turning tool set (11 pcs)
- Live centre MK2
- Drill arbor MK2/B16
- HSS-Co5 cobalt drill set (1–13 mm)
- Universal coolant system
- Cutting oil ES-12 (1L)
Technical specifications
| Max. turning diameter over bed |
220 mm |
| Turning diameter over cross slide |
110 mm |
| Distance between centres |
750 mm |
| Bed width |
100 mm |
| Spindle bore |
38 mm |
| Spindle taper |
MK5 |
| Spindle speed control |
Variable |
| Spindle speed range |
50–2500 rpm |
| Number of metric threads |
12 |
| Metric thread range |
0.4–3.5 mm |
| Number of inch threads |
12 |
| Inch thread range |
8–44 TPI |
| Longitudinal feed range |
0.15–0.25 mm/rev (2) |
| Top slide travel |
70 mm |
| Cross slide travel |
80 mm |
| Carriage longitudinal travel |
630 mm |
| Tailstock quill travel |
60 mm |
| Tailstock taper |
MT2 |
| Main motor |
1000 W |
| Tailstock sleeve feed |
60 mm |
| Tailstock quill taper |
MK2 |
| Motor power S1/S6 |
1 kW / 1.3 kW |
| Dimensions (L × W × H, without stand) |
1250 × 380 × 600 mm |
| Weight (without stand) |
95 kg |
Order your professional CORMAK TYTAN 220x750S VARIO lathe today and enhance the efficiency and quality of your machining. Contact our technical advisor or add the product to your cart online.
