Conventional Universal Lathe CORMAK TORNADO 360x1000 PLUS with Turning Tools and Live Centre

CORMAK TORNADO 360x1000 PLUS is a high-quality universal metal lathe designed for precise machining applications. Featuring a stable construction, two-axis digital readout, and rich standard equipment, it is ideal for production facilities and tool workshops alike. This lathe has been engineered for maximum efficiency and reliability across a wide range of turning operations.

Main advantages

• Hardened and ground bed 188 mm wide – provides rigidity and minimises vibration during operation.
• Two-axis digital readout – ensures precise positioning of the carriage along X and Z axes.
• Large spindle bore 52 mm – allows machining of larger diameter materials.
• Camlock D1-5 spindle – stable and secure chuck mounting.
• 2.0kW motor – sufficient power for machining structural and alloy materials.
• Extended feed gearbox – 26 metric and 34 inch thread ranges; supports right- and left-hand threading.
• Removable bed bridge – increases the turning diameter to 490 mm.
• Digital readout and extensive standard equipment – tool set, live centre MK4, 3-jaw and 4-jaw chucks, faceplate.

Design and technology

• Lathe bed made of high-rigidity cast iron, hardened and ground, with removable bridge for machining larger components.
• Tool post for 20×20 mm tools – suitable for larger cutting tools.
• Drive system with hardened and ground gears – ensures smooth, durable operation across the entire speed range.
• Spindle mounted on high-precision bearings for reliable, accurate rotation.

Precision and performance

• Two-axis digital readout – allows quick and precise control of tool position relative to the workpiece.
• Threading without gear exchange – simplifies setup and reduces changeover time.
• Integrated thread dial indicator – ensures accurate thread cutting and repeatability.
• Adjustable overload clutch – protects mechanisms from damage in case of overload.

Applications

The conventional lathe CORMAK TORNADO 360x1000 PLUS is used in:

• industrial and production plants,
• metalworking and tool workshops,
• training centres and technical laboratories,
• maintenance departments and prototype workshops.

Standard equipment

• 3-jaw chuck 200 mm
• 4-jaw chuck
• Faceplate
• Fixed and travelling steady rests

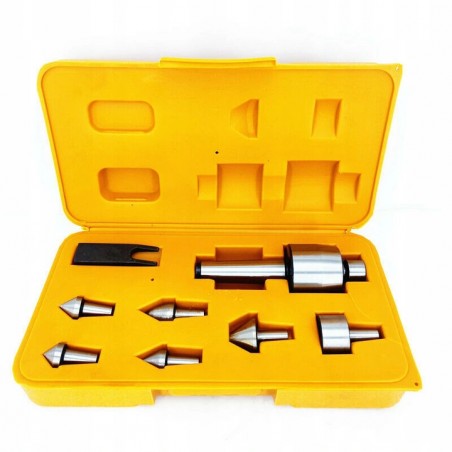

• Live centre MK4
• Set of 7 turning tools 20×20 mm
• 2-axis digital readout
• Chip tray and tool drawer
• Cooling system

Optional equipment

• Quick-change tool post system
• Quick-release tool holder
• Additional tool and insert sets

Technical data:

Choose the universal lathe CORMAK TORNADO 360x1000 PLUS – a precise, durable, and fully equipped conventional metal lathe for professional machining. Order now and enhance your workshop with proven CORMAK technology.
