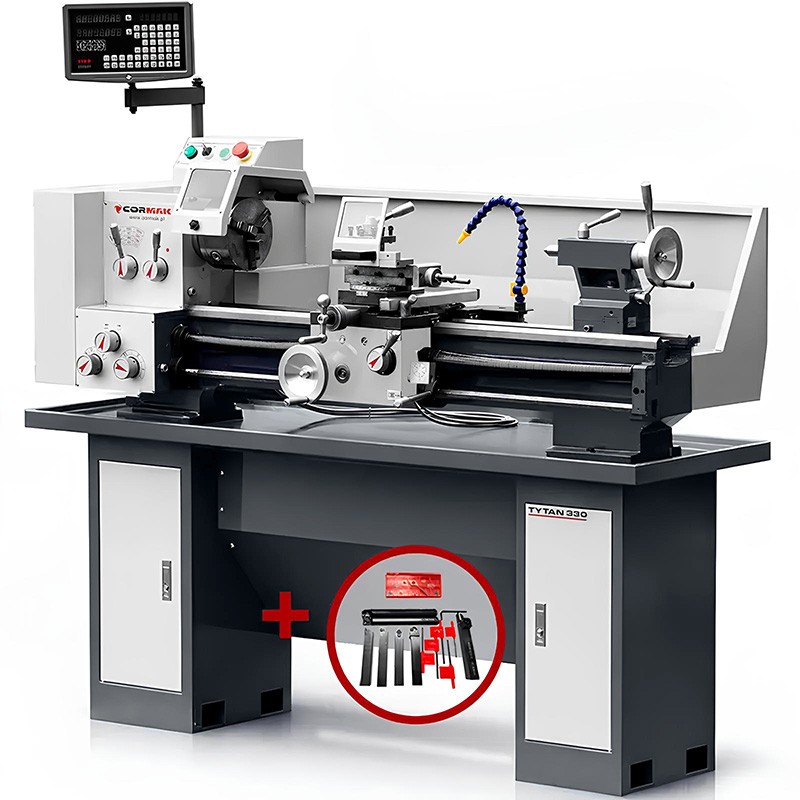

Conventional Universal Metal Lathe CORMAK TYTAN330L 330x915 400V with Stand, Cutting Tools and Live Centre

Universal Conventional Lathe CORMAK 330 x 915 400 V with Stand + Tool Set + Live Centre

The professional CORMAK 330 x 915 conventional lathe is an advanced universal lathe designed for machining a wide range of materials such as structural steel, stainless steel and non-ferrous metals. With its rigid construction, two-axis digital readout and rich standard and optional equipment, this machine is a reliable solution for toolrooms, maintenance workshops and technical schools.

Main features

• High structural rigidity – 160 mm-wide bed ensures stability and precision even under load.
• Two-axis digital readout (longitudinal and cross travel) – improves accuracy and process control.
• Spindle bore 38 mm – allows machining of large-diameter shafts.
• Precision compound slides with 0.1 / 0.5 mm vernier scales – guarantee repeatability and precise feed control.
• Automatic longitudinal and cross feeds – increase productivity in serial operations.
• Wide threading range: metric 0.25–7 mm and inch 4–120 TPI – without gear change.
• Induction motor 1.1 / 1.5 kW – optimised for continuous duty with high torque.
• Cooling system and digital readout – standard equipment enhancing operator comfort and efficiency.

Design and technology

The lathe is built with modern drive and mechanical components. The spindle gearbox with hardened and ground gears ensures long life and quiet operation. Induction-hardened and ground guideways retain geometric precision even after years of intensive use.

Precision and performance

High positioning accuracy, taper turning capability via tailstock offset, and swivelling compound slide make the machine ideal for high-precision applications. The integrated DRO system provides continuous control of machining parameters, minimising human error.

Applications

The compact metal lathe CORMAK 330 x 915 is perfect for unit and small-batch production, maintenance departments, toolrooms, training centres and locksmith workshops. Its universal design allows external and internal turning, threading, and taper surface machining.

Technical parameters

Standard equipment

• Turning tool set 16 × 16 mm – 7 pcs (with replaceable inserts)
• Precision live centre MK3
• Fixed and travelling steady rests
• Lathe stand
• 2-axis digital readout (optical scale)
• 3-jaw chuck 160 mm
• External jaws
• Fixed centre MK3
• Spindle reducing sleeve
• Factory-set change gears
• Cooling system
• Oiler
• Maintenance tool kit
• CE-compliant safety guards
• User manual (EN)
• CE declaration of conformity

Optional equipment

• Cobalt drill set HSS-CO5 / 1–13 mm
• Drill arbor MK3/B16
• Drill chuck B16 3–16 mm
• Reducing sleeve 3/2
• Taper shank drill set MK2/MK3 14.5–30 mm
• Cutting fluid ES-12 1 L

Choose the CORMAK 330 × 915 universal lathe if you are looking for a reliable, precision machine for professional metalworking. Contact our technical advisor or order online to secure proven industrial performance at a competitive price.
