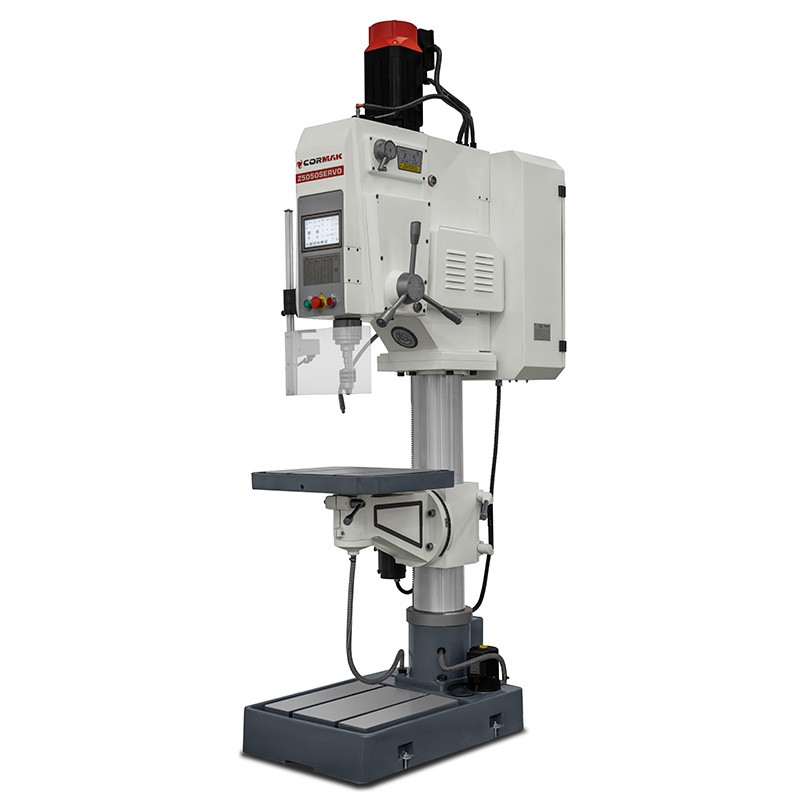

copy of Pillar Drill for Metal CORMAK Z5050B SERVO with Autofeed and Cooling System
The CORMAK Z5050B SERVO pillar drill is a precise, modern machine designed for professional workshop and industrial use. It features a servo-controlled system that automatically adjusts spindle speed and feed according to the tool diameter and material type. This intelligent automation shortens setup time, improves precision, and minimises operator error during operation.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€9,000.00
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Pillar Drill CORMAK Z5050B SERVO
The CORMAK Z5050B SERVO pillar drill is a modern, high-precision machine created for professional workshop and production environments. Its advanced control system automatically adjusts spindle speed and feed rate to match the tool diameter and material being machined, significantly reducing setup time and limiting the risk of errors.
Pillar Drill CORMAK Z5050B – Machine Characteristics
Operation is highly intuitive thanks to a large touchscreen display giving quick access to functions such as drilling, tapping, spindle speed readout and depth control. The motorised table height adjustment and integrated cooling system ensure smooth and comfortable operation even under heavy industrial workloads.
Pillar Drill CORMAK Z5050B – Technical Data
| Parameter | Value |
|---|---|
| Maximum drilling diameter | 50 mm |
| Tapping capacity | M30 |
| Distance spindle–column | 360 mm |
| Distance spindle–worktable | 570 mm |
| Maximum distance spindle–base | 1,170 mm |
| Spindle travel | 245 mm |
| Table swivel angle | ±45° |
| Spindle taper | MT5 |
| Speed range (stepless control) | 50–250 / 250–2,000 rpm |
| Automatic spindle feed | 0–765 mm/rev |
| Column diameter | Ø180 mm |
| Table dimensions | 545 × 470 mm |
| T-slot width | 14 mm |
| Motor power | 3.7 kW |
| Power supply | 400 V |
| Overall dimensions | 1,050 × 700 × 2,430 mm |
| Weight | 760 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
