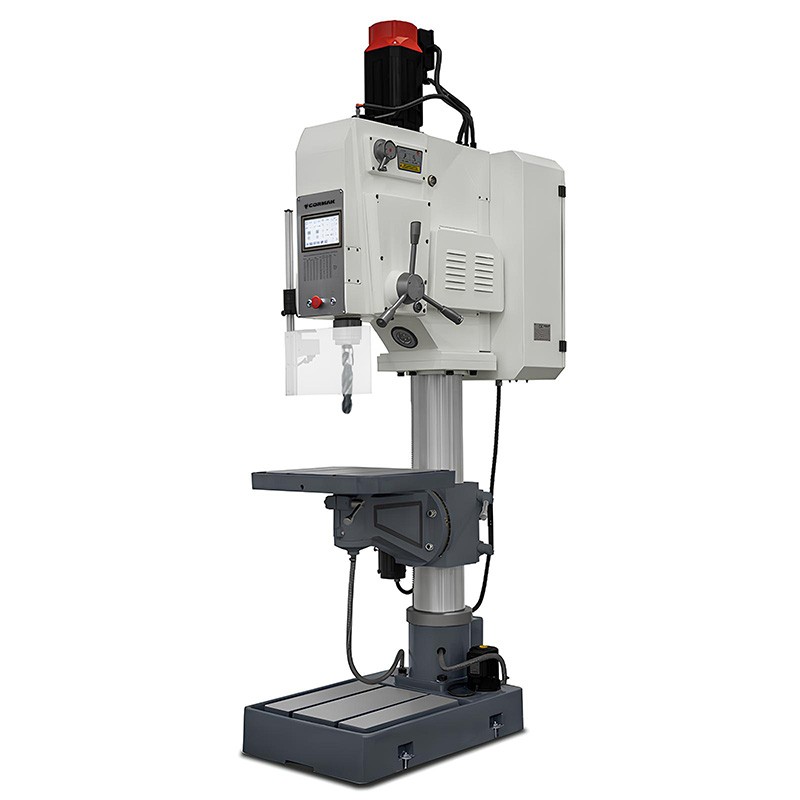

Pillar Drill CORMAK Z5050 AUTO with Automatic Feed and Cooling
The CORMAK Z5050 AUTO column drill is an advanced industrial machine designed for precise metalworking in workshop and production environments. The control system monitors all key operating parameters, preventing settings that could cause overload or mechanical damage. This ensures not only safe operation, but also consistent process repeatability, high drilling and tapping accuracy, and reliability during intensive use.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€9,000.00
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Column Drill CORMAK Z5050 AUTO with Automatic Feed and Cooling
The industrial CORMAK Z5050 AUTO drill is an advanced column drilling machine designed for professional metalworking in workshops and production facilities. The machine offers high precision drilling and tapping with reliable performance even under continuous load. The control system monitors operating parameters, preventing settings that could overload the mechanics — ensuring both safety and process stability.
Main Advantages of the CORMAK Z5050 AUTO Drill
- Precision metal machining thanks to a stable Ø180 mm column and a heavy-duty 545×470 mm worktable.
- Safe operation – the control system prevents settings that could damage the machine’s mechanics.
- Automatic spindle feed ensures smooth and uniform movement during drilling and tapping.
- Integrated cooling system extends tool life and improves machining quality.
- Intuitive control – a large touchscreen enables full control of spindle speed, drilling depth, and feed rate settings.
- High performance – drilling up to Ø50 mm, tapping up to M30, with a spindle stroke of 245 mm.
- Ergonomic operation – motorized table lift and automatic tool ejector enhance comfort and efficiency.
Construction and Technology
The CORMAK Z5050 AUTO column drill features a massive column and solid worktable, ensuring rigidity during drilling and tapping of heavy workpieces. The MK5 spindle taper operates with an automatic feed system, while the precise spindle guidance minimizes vibrations and deviations. The cooling system supports efficiency and safety during long-term operation.
Precision and Performance
Thanks to its stable construction, the CORMAK Z5050 AUTO column drill guarantees repeatability and consistent machining quality. The control system continuously monitors settings, preventing mechanical overload, while the automatic feed enables uniform feed during drilling and tapping. The high-quality drive and stepless gearbox provide smooth spindle speed adjustments between 50–2000 rpm.
Applications
The CORMAK Z5050 AUTO column drill is designed for professional mechanical and production facilities, including:
- Drilling in steel, aluminium, and other metals.
- Precision tapping of structural components.
- Machine production, service workshops, and industrial manufacturing plants.
Standard Equipment
- Touchscreen display
- Servo feed motor
- Key-type drill chuck 3–16 mm / B18
- MK5 / B18 arbor
- Reducing sleeves MK5/4, MK4/3, MK3/2
- Motorized table lift
- Cooling system
- Tapping mode
- LED work light
- Digital readout of spindle speed and drilling depth
- Safety guard
Technical Data
| Maximum drilling capacity | 50 mm |
| Drilling capacity in cast iron | 60 mm |
| Maximum tapping capacity | M30 |
| Drill chuck capacity | 3–16 / B18 mm |
| Spindle taper | MK5 |
| Minimum spindle speed | 50 rpm |
| Maximum spindle speed | 2000 rpm |
| Speed adjustment | Stepless (50–250 / 250–2000) |
| Drive transmission | Gear-driven |
| Automatic spindle feed range | 0–765 mm/rev |
| Worktable tilt | −45° to +45° |
| Max. spindle-to-column distance | 360 mm |
| Max. spindle-to-table distance | 570 mm |
| Max. spindle-to-base distance | 1170 mm |
| Quill stroke | 245 mm |
| Column diameter | 180 mm |
| Table size – width | 545 mm |
| Table size – depth | 470 mm |
| T-slots | 14 mm |
| Main motor power S1 100% | 3.7 kW |
| Voltage | 400 V |
| Overall width | 700 mm |
| Overall depth | 1050 mm |
| Overall height | 2430 mm |
| Weight | 760 kg |
The CORMAK Z5050 AUTO column drill is the perfect choice for professionals who expect precision, efficiency, and full control over their machining process. Invest in a machine that increases productivity and ensures safety in your workshop.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
