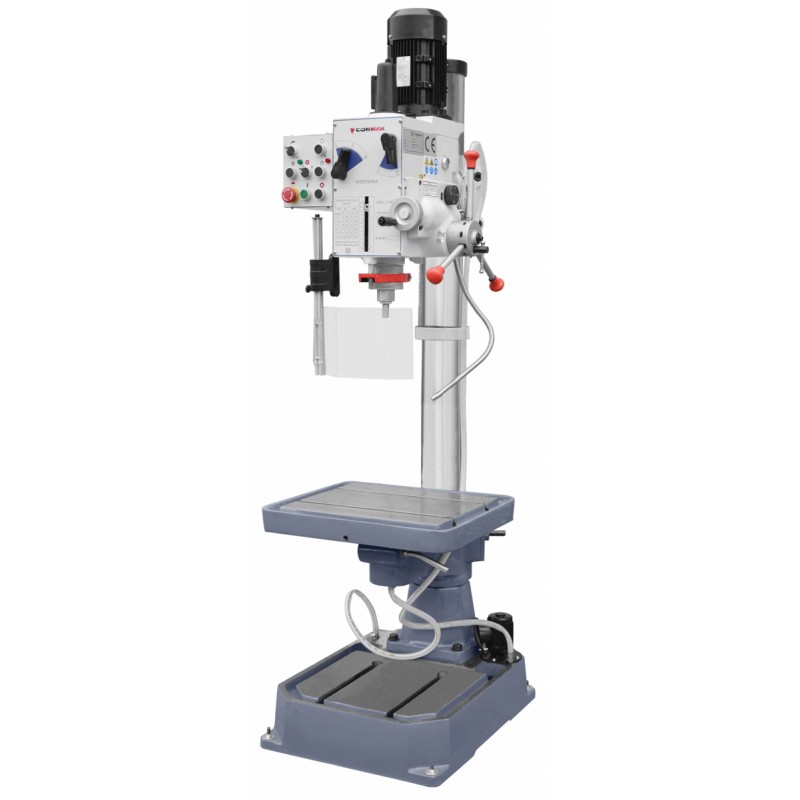

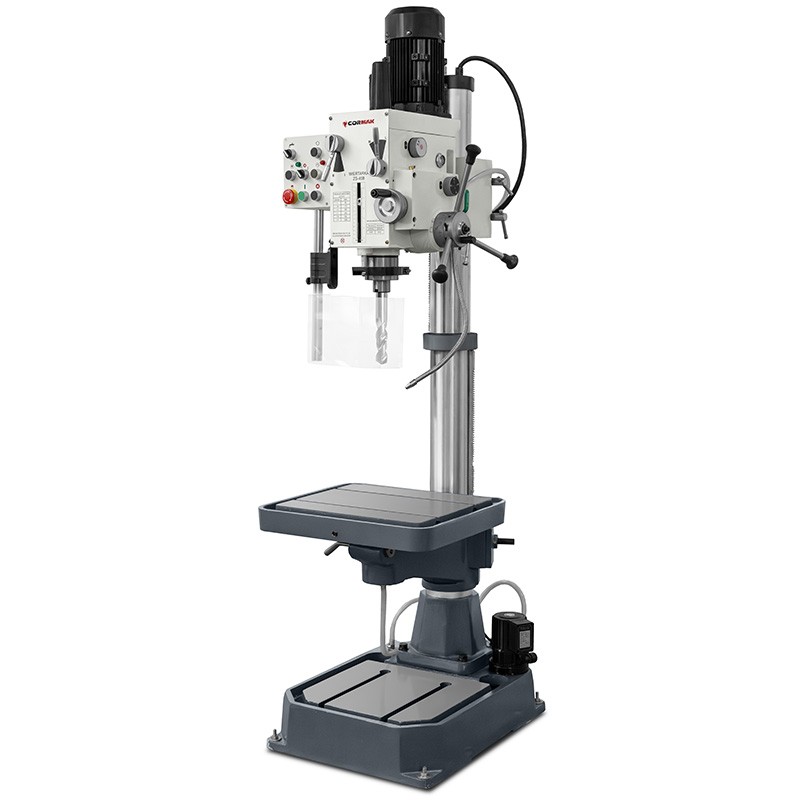

Pillar Drill CORMAK ZS-40B with Power Feed
The CORMAK ZS-40B industrial column drill is a technologically advanced machine designed for intensive metalworking in workshop and production conditions. Thanks to its precision oil gearbox, automatic vertical feed and tapping function, the CORMAK ZS-40B pillar drill for metal guarantees reliability, efficiency and high-quality drilling and tapping results.
Main advantages of the machine
- Automatic vertical feed – three ranges (0.12; 0.18; 0.25mm/rev) allow optimum adjustment of cutting parameters to the type of material.
- Tapping function with automatic reversal of rotation – enables efficient internal tapping up to M32 without operator intervention.
- Oil gearbox with hardened and ground gears – guarantees quiet, smooth operation and durability of the drive system.
- Rigid 115mm diameter column – minimises deflection and vibration, which translates into machining precision.
- Large swivelling work table with height adjustment – enables machining of large and irregular workpieces.
- Cooling system as standard – improves drilling quality, increases tool life and reduces the risk of overheating.
Construction and technology
The CORMAK ZS-40B industrial drill has been designed for continuous operation in demanding production environments. Its core is a mechanical gearbox lubricated in an oil bath, ensuring a stable and reliable drive. The spindle with MT4 fitting enables the use of a wide range of tools, while the high rigidity of the spindle head-column system translates into hole-making accuracy. The clamping chuck guard made of transparent plexiglass increases operator safety while maintaining visibility of the machining area.
Precision and work efficiency
The automatic feed enables repeatable drilling operations without burdening the operator, which significantly improves efficiency in serial production. The spindle speed range from 95 to 1600rpm combined with six gear ratios allows machining parameters to be optimally adapted to the type of material and tool. The precise handwheel with depth scale guarantees control over the drilling process.
Applications
The CORMAK ZS-40B drill with tapping function is an ideal solution for:
- production and assembly plants,
- mechanical and metalworking workshops,
- maintenance departments,
- tool rooms and training centres.
Standard equipment
- 16mm drill chuck
- MT4 drill arbor
- Reduction sleeves for MT3 and MT2
- Drift key for ejecting the arbor
- Work table with mounting slots
- Handwheel with scale for depth control
- Cooling system with pump
- Plexiglass spindle guard
- Handwheel with scale
Technical data
| Max. drilling capacity |
40 mm |
| Max. tapping capacity |
M32 |
| Spindle taper |
MT4 |
| Column diameter |
115 mm |
| Distance from spindle to column axis |
260 mm |
| Distance from spindle to work table (max) |
754 mm |
| Distance from spindle to base (max) |
1270 mm |
| Spindle speed range |
95 – 1600 rpm |
| Number of gears |
6 |
| Automatic feed range |
0.12 / 0.18 / 0.25 mm/rev |
| Work table dimensions |
354 × 575 mm |
| Overall height |
2120 mm |
| Motor power |
1.1 kW (S1) / 1.6 kW (S6) |
| Power supply |
400 V / 50 Hz |
| Weight |
410 kg |
Choose precision, safety and efficiency. Choose the CORMAK ZS-40B pillar drill with power feed and increase the efficiency of metalworking in your workshop. Contact our specialist or place your order online today.
