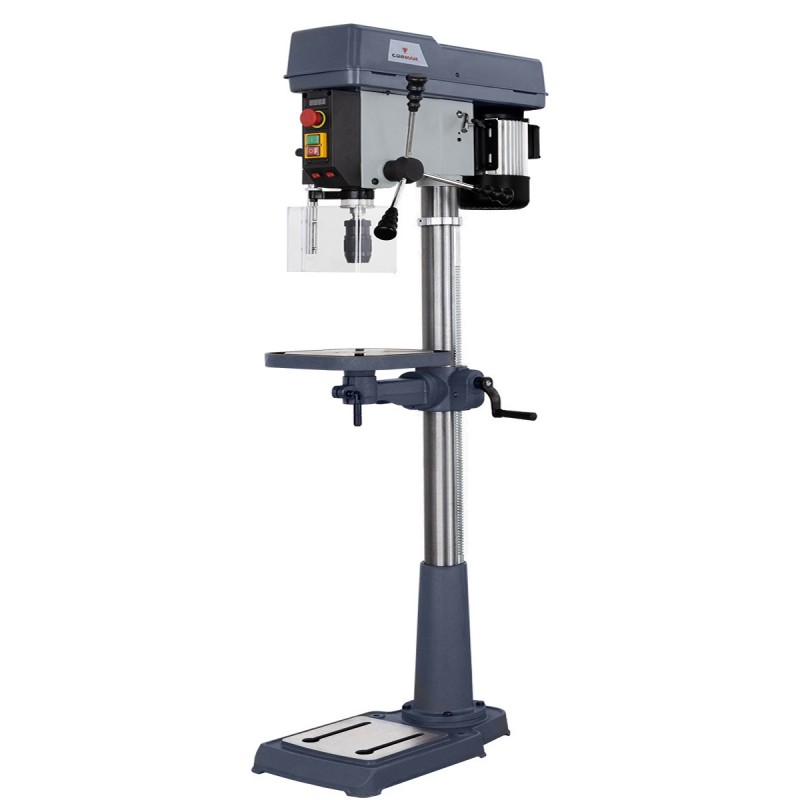

Pillar Drill for Metal CORMAK Z5020 BF Vario
The CORMAK Z5020 BF Vario pillar drill ensures excellent drilling quality thanks to its rigid construction. The tilting table allows a wide range of operations, while the electronic speed display and drilling depth indicator increase control and precision. A 100 mm vice is included as standard, making the machine ready for immediate use.
Variant
Pillar Drill for Metal CORMAK Z5020 Vario 230V
Pillar Drill for Metal CORMAK Z5020 Vario 1.5kW 400V
Pillar Drill for Metal CORMAK 25mm
Pillar Drill for Metal CORMAK 32mm
Pillar Drill for Metal CORMAK WS32GP with Cooling System
Pillar Drill for Metal CORMAK WS32BGP with Autofeed and Cooling System
Pillar Drill for Metal CORMAK Z5028W with Cooling System
Geared Column Drill CORMAK ZS-40HS
Geared Column Drill CORMAK ZS-40HS with Tapping Chuck Set
Geared Column Drill with Power Feed CORMAK ZS-40B
Geared Column Drill with Power Feed CORMAK ZS-40B
Pillar Drill for Metal CORMAK Z5040L with Angular Box Table and Cooling System
Pillar Drill CORMAK Z5050
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€649.75
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Pillar Drill for Metal CORMAK Z5020 BF Vario – precision column drill with variable speed control
The CORMAK Z5020 BF Vario pillar drill is a versatile and modern drilling machine for metal, designed for intensive operation in industrial plants, locksmith workshops, and maintenance departments. It offers stability, precision, and comfort thanks to smooth spindle speed control and an ergonomic design.
Main Advantages
- Stepless spindle speed regulation – range 190–2700 rpm for optimal adjustment to the material.
- Rigid body construction – reduces vibration and improves drilling accuracy.
- Adjustable worktable height – precision rack mechanism and tilting range ±45°.
- Electronic speed indicator – enables precise control of spindle parameters.
- Laser pointer and LED light – assist tool positioning and improve visibility.
- 100 mm vice included – ready to use straight out of the box.
Design and Technology
The CORMAK Z5020 BF Vario column drill is equipped with a stable 70 mm diameter column and a wide 480 × 290 mm base, providing excellent machine support. The spindle with 120 mm travel and MK2 taper allows deep drilling without repositioning. The tilting and rotating table offers easy adjustment for different operations.
Precision and Efficiency
A powerful 750 W motor and a maximum drilling diameter of 20 mm allow effective machining of most metal materials. The electronic speed indicator and depth limiter provide complete process control. The long column and 660 mm table height adjustment range enable work on tall workpieces and long tools.
Applications
The Z5020 BF Vario pillar drill is recommended for:
- mechanical and locksmith workshops,
- maintenance departments,
- light and medium industry,
- prototype and small-series production.
Standard Equipment
- 100 mm vice
- Laser drilling pointer
- LED lighting
- Electronic speed display
- Three-arm feed lever
- Drilling depth limiter
- Worktable with rack height adjustment
Technical Data
| Parameter | Value |
|---|---|
| Maximum drilling diameter | 20 mm |
| Spindle speed range | 190–2700 rpm |
| Power supply | 230 V |
| Spindle taper | MK2 |
| Spindle travel | 120 mm |
| Distance spindle–column | 170 mm |
| Distance spindle–base | 1,060 mm |
| Table height adjustment | 660 mm |
| Column diameter | 70 mm |
| Table dimensions | 280 × 280 mm |
| Base dimensions | 480 × 290 mm |
| Motor power | 750 W |
| Machine height | 1,650 mm |
| Weight | 75 kg |
Choose Precision and Efficiency – Choose CORMAK Z5020 BF Vario
The CORMAK Z5020 BF Vario metal pillar drill is the perfect choice for professionals seeking a reliable, universal drilling machine. Order today and enhance your workshop’s capabilities with CORMAK.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
