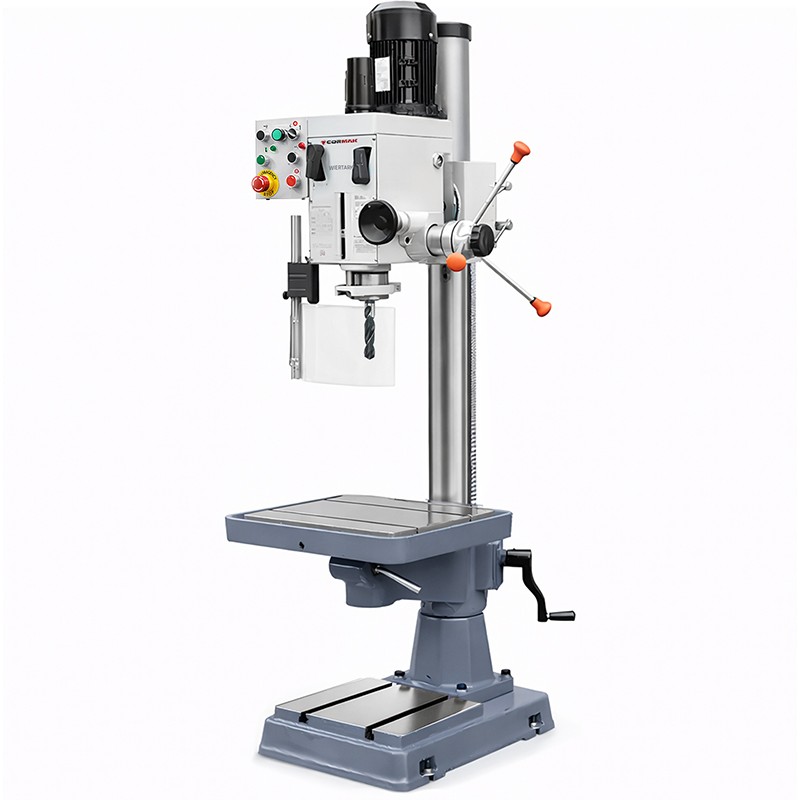

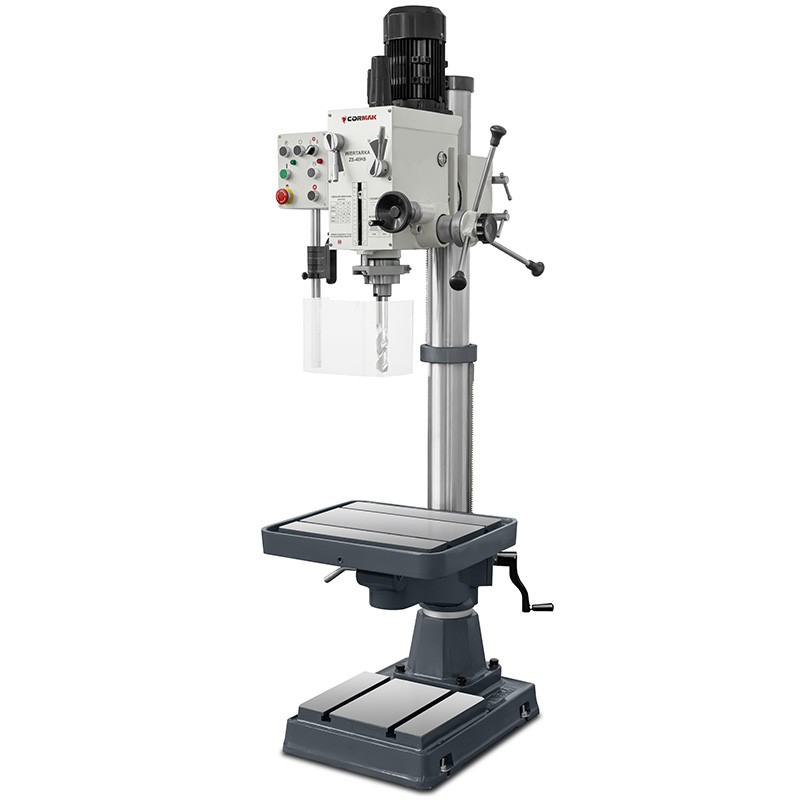

Column Drill CORMAK ZS-40HS with Tapping Chuck Set

The CORMAK ZS-40HS industrial column drill is a reliable and precise machine designed for drilling and tapping under production conditions. With its mechanical gearbox, rigid column and integrated tapping function, this model meets the highest requirements for durability, precision and efficiency. The set includes a practical tapping chuck set that further enhances the functionality of the machine.

Main advantages

• High drilling capacity – up to 40 mm – enables machining of a wide range of materials and diameters.
• Tapping function with automatic spindle reversal – allows effective thread cutting up to M32.
• Swivelling head with height adjustment – increases flexibility and enables machining of workpieces with various geometries.
• Rigid 115 mm column – minimises deflection and ensures stability during operation.
• Oil-bath gearbox with hardened gears – six speeds allow optimal adjustment of drilling parameters within the 95–1600 rpm range.
• Large adjustable worktable – makes it easier to position and clamp workpieces of different sizes.
• Tapping chuck set included – allows immediate operation with taps without purchasing additional accessories.

Construction and technology

The CORMAK ZS-40HS column drill has been designed for reliability and long service life. Hardened gears running in an oil bath ensure quiet operation and extended gearbox durability. The precision handwheel with depth scale guarantees accurate control over drilling parameters. The 575 × 354 mm table allows for the mounting of various vices and fixtures, while the solid base increases the stability of the entire structure.

Precision and performance

The combination of a mechanical gearbox and a motor with up to 1.6 kW power (in S6 mode) ensures smooth operation even under heavy loads. The 120 mm spindle travel, combined with a maximum spindle-to-base distance of 1,200 mm, allows machining of both small and large components. The CORMAK ZS-40HS industrial drilling machine with tapping function is an ideal choice for unit, small-series and maintenance production.

Applications

The CORMAK ZS-40HS column drill for metal is suitable for:

• mechanical and locksmith workshops,
• maintenance departments,
• production and repair plants,
• technical schools and training centres,
• toolrooms and design departments.

Standard equipment

• 16 mm drill chuck
• Reducing sleeves MK2, MK3, MK4
• Precision handwheel with depth scale
• Worktable with mounting slots
• Tapping chuck set – INCLUDED

Technical data

Expand your workshop’s potential. Choose the CORMAK ZS-40HS column drill with tapping chuck set and gain a complete, ready-to-use solution. Contact our technical advisor or order online – invest in reliability and precision!
