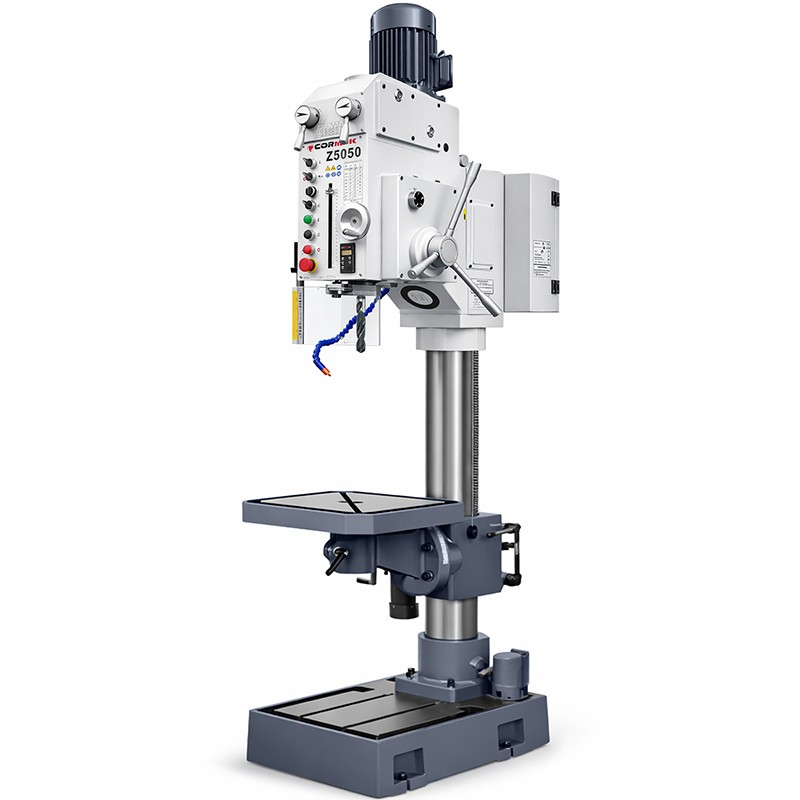

Pillar Drill CORMAK Z5050
The industrial CORMAK Z5050 column drilling machine is suitable for both small workshops and large-scale production. Its heavy-duty cast-iron construction and rigid steel column ensure stability and accuracy even under heavy load. The drill features a wide speed range, automatic spindle feed, tapping function, and built-in cooling, offering exceptional reliability and precision in continuous operation.
Variant
Pillar Drill for Metal CORMAK Z5020 BF Vario
Pillar Drill for Metal CORMAK Z5020 Vario 230V
Pillar Drill for Metal CORMAK Z5020 Vario 1.5kW 400V
Pillar Drill for Metal CORMAK 25mm
Pillar Drill for Metal CORMAK 32mm
Pillar Drill for Metal CORMAK WS32GP with Cooling System
Pillar Drill for Metal CORMAK WS32BGP with Autofeed and Cooling System
Pillar Drill for Metal CORMAK Z5028W with Cooling System
Geared Column Drill CORMAK ZS-40HS
Geared Column Drill CORMAK ZS-40HS with Tapping Chuck Set
Geared Column Drill with Power Feed CORMAK ZS-40B
Geared Column Drill with Power Feed CORMAK ZS-40B
Pillar Drill for Metal CORMAK Z5040L with Angular Box Table and Cooling System
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€6,749.75
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Pillar Drill CORMAK Z5050
The CORMAK Z5050 pillar drill is a durable and precise column drilling machine for metal, designed for professional industrial use requiring high performance and reliability. With a wide speed range, tapping function and four-step automatic spindle feed, this machine is ideal for drilling large-diameter holes in structural materials. Its solid construction and ergonomic design make the CORMAK Z5050 industrial drill an investment in long-term efficiency and operator safety.
Main Advantages
- High machining capacity – maximum drilling diameter of 50 mm and tapping capacity up to M22 in steel allow for versatile use.
- Tapping function – reversible rotation and four-step spindle feed (0.1–0.4 mm/rev) ensure precise, stable thread cutting.
- Automatic spindle feed – enables efficient drilling without constant manual control.
- Wide speed range – 18 spindle speeds from 55 to 1450 rpm allow full adaptation to different materials and tooling.
- Tilting rotary worktable – 580 × 580 mm surface, tiltable ±45°, provides flexibility for angular drilling without repositioning the workpiece.
- Cooling system and LED lighting – enhance precision, tool life and comfort during long-term use.
Design and Technology
The CORMAK Z5050 column drilling machine is engineered for maximum stability and torque. The MK5 spindle with a 210 mm travel allows deep drilling and tapping. The 190 mm diameter column and rigid cast-iron base ensure vibration damping and structural rigidity. The intuitive control panel, feed indicator and user-friendly speed adjustment make operation smooth, accurate and safe.
Precision and Performance
Powered by a robust 2.2 / 3 kW (960 / 1440 rpm) motor, the CORMAK Z5050 pillar drill delivers constant torque transmission to the spindle, ensuring efficient performance even in hard steel. The cooling system with a 75 W independent pump maintains optimal cutting conditions, improves surface finish and extends tool life. The heavy-duty gearbox ensures smooth operation across all 18 speeds.
Applications
The CORMAK Z5050 industrial pillar drill is ideal for use in:
- metalworking and manufacturing plants,
- locksmith and toolmaking workshops,
- machine-building and steel-construction industries,
- technical schools and training centres,
- industrial maintenance and prototyping departments.
Standard Equipment
- Drill chuck 1–13 mm
- Morse taper sleeves (3 pcs, up to MK5)
- Cooling system with pump
- LED working light
Technical Data
| Maximum drilling capacity | 50 mm |
| Tapping (steel / cast iron) | M22 / M24 |
| Spindle taper | MK5 |
| Spindle travel | 210 mm |
| Number of speeds | 18 |
| Spindle speeds | 55–1450 rpm |
| Number of spindle feeds | 4 |
| Feed rates | 0.1 / 0.2 / 0.3 / 0.4 mm/rev |
| Column diameter | 190 mm |
| Spindle–column distance | 370 mm |
| Spindle–table distance | 80–800 mm |
| Spindle–base distance | 1325 mm |
| Table tilt angle | ±45° |
| Table dimensions | 580 × 580 mm |
| Base dimensions | 860 × 580 mm |
| T-slot width | 2 × 18 mm |
| Main motor power | 2.2 / 3 kW |
| Motor speed | 960 / 1440 rpm |
| Coolant pump power | 75 W |
| Overall dimensions | 1050 × 590 × 2150 mm |
| Net / gross weight | 760 / 860 kg |
Choose power, precision and safety. Invest in the CORMAK Z5050 pillar drill to increase drilling and tapping efficiency in your workshop. Order online or contact our technical advisor for expert guidance.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
See online videos
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
Cobalt Drill Bit Set CORMAK HSSE TiN 1–13mm 25pcs
The HSSE TiN cobalt drill bit set (1–13mm, 25 pieces) is a complete toolkit for drilling steel, cast iron and hard-to-machine materials. The TiN (titanium nitride) coating increases wear resistance and extends drill life. Ideal for workshops and industrial applications — ensuring precision and durability in everyday work. ...More
15 other products in the same category:
Pillar Drill for Metal CORMAK Z5040L with Angular Box Table and Cooling System
The industrial gear-driven CORMAK Z5040L pillar drill ensures excellent drilling performance and accuracy. Its robust cast-iron construction provides stability and long service life. Equipped with an adjustable angular box table, automatic feed, reversible spindle rotation, depth gauge, and a ...More
Pillar Drill for Metal CORMAK 25mm
The CORMAK 25 pillar drilling machine is a highly efficient column drill, factory-fitted with a powerful two-speed 1,000 W motor featuring right- and left-hand rotation. Its robust design ensures precise operation. The worktable height is adjustable via a rack-and-pinion system and can tilt 0–45° ...More

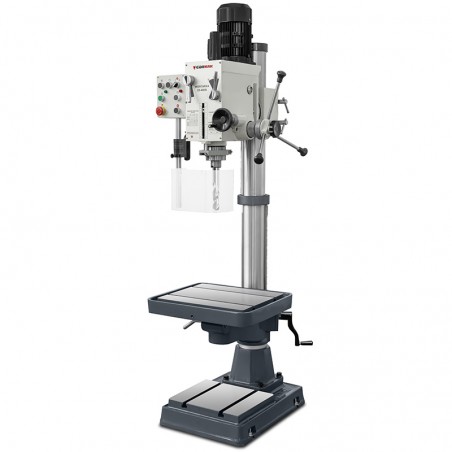

Geared Column Drill CORMAK ZS-40HS
