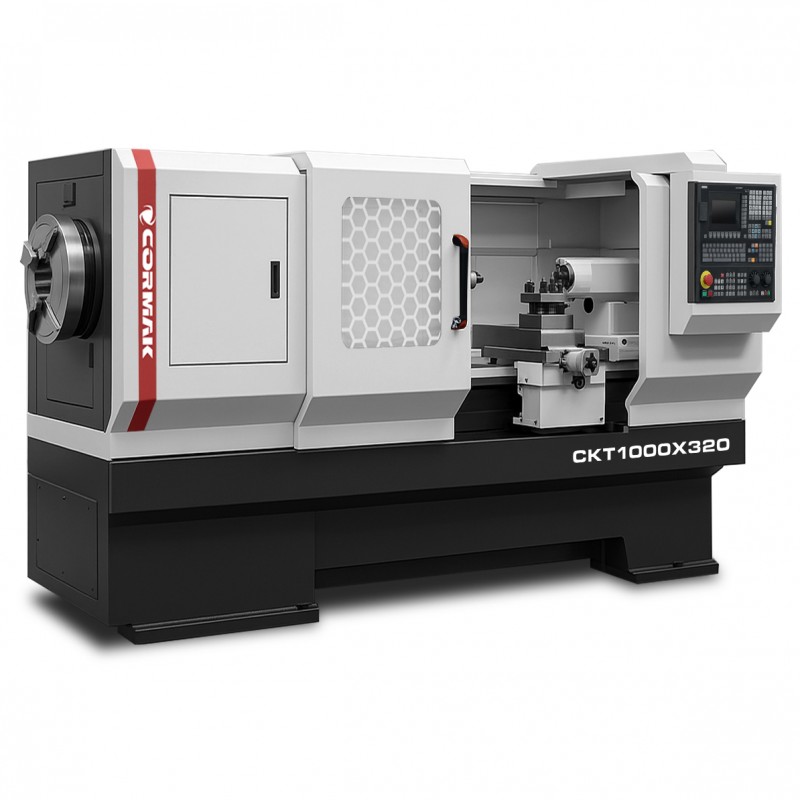

CNC Pipe Lathe CKT1000X3000 Spindle Bore 320 mm – Precision and Performance in Metal Machining
CNC Pipe Lathe CKT1000X3000 Spindle Bore 320 mm is an advanced numerically controlled lathe designed for precision machining of pipes and metal parts in demanding industrial environments. Equipped with Siemens Sinumerik 808D control and a robust structure, it delivers outstanding accuracy, efficiency and reliability in industrial applications.
Main Advantages of the CNC Pipe Lathe CKT1000X3000 Spindle Bore 320 mm
CNC Pipe Lathe CKT1000X3000 Spindle Bore 320 mm combines modern technology with solid construction, providing users with significant benefits in manufacturing processes. Its key advantages include:
- Large working area: Centres distance 3000 mm, maximum swing over bed 1000 mm and over carriage 620 mm enable machining of very long parts such as pipes, shafts and flanges, ideal for the oil, gas, machinery and energy industries.
- High precision: Axis X/Z repeatability of 0.012/0.02 mm and 0.025 mm ensures excellent surface quality even for complex geometries.
- Optimal spindle bore: Spindle bore 320 mm (optionally 270 mm) and spindle speed range 22–300 rpm with an 11 kW motor enable efficient machining of pipes and components made of hard materials such as stainless steel, titanium or nickel alloys.
- Exceptional stability: The 9,000 kg machine with a massive body minimises vibration, ensuring stability during intensive turning operations.
- Feed dynamics: Rapid feed rates of X/Z axes 4/8 m/min and travel range 2850/620 mm reduce cycle times and improve efficiency.
- Configuration flexibility: Options such as Fanuc control, hydraulic chuck, steadies or 6-/8-tool post allow the machine to be adapted to specific production requirements.
- Intuitive operation: Siemens Sinumerik 808D with a simple interface and CAD/CAM compatibility simplifies programming and operation, reducing operator training time.
- Energy efficiency: Dimensions 5307x2040x1855 mm and an efficient 11 kW motor reduce energy consumption and long-term operating costs.
- Versatile applications: Machining of pipes, shafts, flanges and other components in one cycle – from light metals to high-strength alloys.
- Advanced cooling system: The standard cooling system ensures effective heat removal, extending tool life and improving machining quality.
- Durability and reliability: High-quality components and a strong structure ensure a long service life even under heavy-duty conditions.
- Work safety: The machine meets European safety standards, confirmed by the CE Declaration of Conformity, ensuring reliability and safety in industrial use.
- Easy integration: Compatibility with automation systems and CAD/CAM software allows seamless integration into production lines.
CNC Metal Lathe CKT1000X3000 Spindle Bore 320 mm is the ideal choice for production plants that require a reliable and precise machine for machining long pipes and metal components.
Construction and Technology of the CNC Pipe Lathe CKT1000X3000
CNC Pipe Lathe CKT1000X3000 Spindle Bore 320 mm has been designed for durability, precision and ease of operation. The key components include:
Structure and Bed
The massive machine body and wide bed ensure exceptional rigidity and vibration damping. The 3000 mm centres distance and maximum swing over bed of 1000 mm enable machining of long parts such as pipes and shafts while maintaining high stability.
Spindle and Drive
The spindle with a 320 mm bore (optionally 270 mm) and speed range of 22–300 rpm, driven by an 11 kW motor, delivers high cutting performance. The standard 630 mm 4-jaw chuck (optional 400 mm 3-jaw chuck) ensures secure clamping of large workpieces.
Guides and Drives
Linear guides and precision servo drives ensure smooth motion along the X/Z axes (travel 2850/620 mm) with a rapid feed rate of 4/8 m/min, minimising positioning errors and providing high dynamic performance.
Control System
The standard Siemens Sinumerik 808D control (optional Siemens 828D or Fanuc Oi-TF) allows precise programming and machining process optimisation. The compact control panel with protection class IP65 ensures reliability under workshop conditions, while the RS-232 interface simplifies CAD/CAM system integration.
Precision and Efficiency
Industrial Lathe CKT1000X3000 Spindle Bore 320 mm delivers high precision thanks to advanced CNC control and a robust structure. Axis X/Z repeatability of 0.012/0.02 mm and 0.025 mm, combined with a feed speed of 4/8 m/min, enables toolpath optimisation, reducing cycle time and increasing productivity. The 11 kW motor makes it ideal for machining long components in both batch and single-part production.
Applications of the CNC Pipe Lathe CKT1000X3000
CNC Metal Lathe CKT1000X3000 Spindle Bore 320 mm is widely used in demanding industries such as:
- Oil and gas industry: Machining of large-diameter pipes, flanges and fittings.
- Machinery industry: Production of shafts, sleeves and structural parts.
- Machine building: Turning precision components for industrial equipment.
- Energy sector: Machining parts such as turbine elements and drive shafts.
- Production workshops: Execution of single or serial jobs requiring high precision and flexibility.
Thanks to its large centres distance and advanced configuration options, the CNC lathe is the perfect choice for large production facilities.
CNC Controls – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF
CNC Pipe Lathe CKT1000X3000 Spindle Bore 320 mm offers professional CNC controls from renowned manufacturers such as Siemens and Fanuc, providing precision, performance and ease of operation.
Siemens Sinumerik 808D – Compact Control for Standard Applications
Sinumerik 808D is an economical CNC control system for metalworking lathes, offering:
- Intuitive interface: A dedicated keyboard and clear graphic screen make programming and operation straightforward.
- High reliability: Protection rating IP65 guarantees stable operation in demanding workshop environments.
- Advanced features: Support for turning cycles and integration with CAD/CAM systems.
Siemens Sinumerik 828D – Advanced Control for Demanding Processes
Sinumerik 828D is a professional CNC control designed for industrial lathes, featuring:
- High processing power: Fast data processing ensures dynamic and accurate machining.
- Extended functionality: Advanced machining cycles, interpolation and toolpath optimisation.
- Automation integration: Possibility of expansion with additional control modules.
Fanuc Oi-TF – Stability and Precision
Fanuc Oi-TF is a reliable CNC system for CNC lathes, offering:
- Operational stability: Consistent precision in long-term serial production.
- Advanced turning functions: Support for threading, grooving and drilling operations.
- User-friendly interface: Fast programming and simple operation.
Select the CNC control best suited to your production needs to enhance efficiency and machining precision!
Technical Specifications
| Centres distance |
3000 mm |
| Maximum swing over bed |
1000 mm |
| Maximum swing over carriage |
620 mm |
| Maximum workpiece length (between chuck and tailstock) |
3000 mm |
| Spindle bore |
320 mm |
| Tool positions |
4 (option 6, 8) |
| Spindle speed (2 gears) |
22–108, 60–300 rpm |
| Maximum axis travel X/Z |
2850/620 mm |
| Rapid feed rate X/Z |
4/8 m/min |
| Axis repeatability X/Z |
0.012/0.02; 0.025 mm |
| Tailstock quill diameter |
100 mm |
| Tailstock quill travel |
250 mm |
| Tailstock taper |
MT5 |
| Main motor power |
11 kW |
| Machine weight |
9000 kg |
| Overall dimensions |
5307 × 2040 × 1855 mm |
Standard Equipment
- Sinumerik 808D control
- 2 × manual 4-jaw chuck 630 mm
- 4-position tool post
- Complete set of jaws
- Manual tailstock
- Cooling system
- Automatic lubrication system for gears and guides
- 24V halogen lighting
- CE Declaration of Conformity
Optional Equipment*
- Spindle bore 270 mm
- 6- or 8-position tool post
- Handwheels
- 3-jaw chuck 400 mm
- Hydraulic chuck and tailstock
- Control: Fanuc, Siemens 828D
- Fixed and travelling steadies
*The price quoted is for the machine only, excluding optional or additional equipment, installation, transport and training — please contact our consultant for details.
Why Choose CORMAK?
As an experienced CNC machine manufacturer, CORMAK has been providing reliable industrial solutions for over 20 years. Our CNC metal lathes meet the highest quality standards, comply with European safety certifications and are supported by professional service. With an extensive warehouse base (over 15,000 m²) and a team of specialists, we offer full technical support and expert advice.
- Experience: 16 years of expertise in Siemens CNC control systems.
- Quality: Machines compliant with European safety regulations.
- Support: Professional consulting and fast warranty and post-warranty service.
By choosing an industrial lathe from CORMAK, you invest in precision, reliability and long-term production efficiency.
Order the CNC Pipe Lathe CKT1000X3000 Spindle Bore 320 mm Today!
Increase the efficiency and precision of your production with the CNC Pipe Lathe CKT1000X3000 Spindle Bore 320 mm. Contact our team for detailed information, a tailored quotation or to arrange a live demonstration of the machine.
