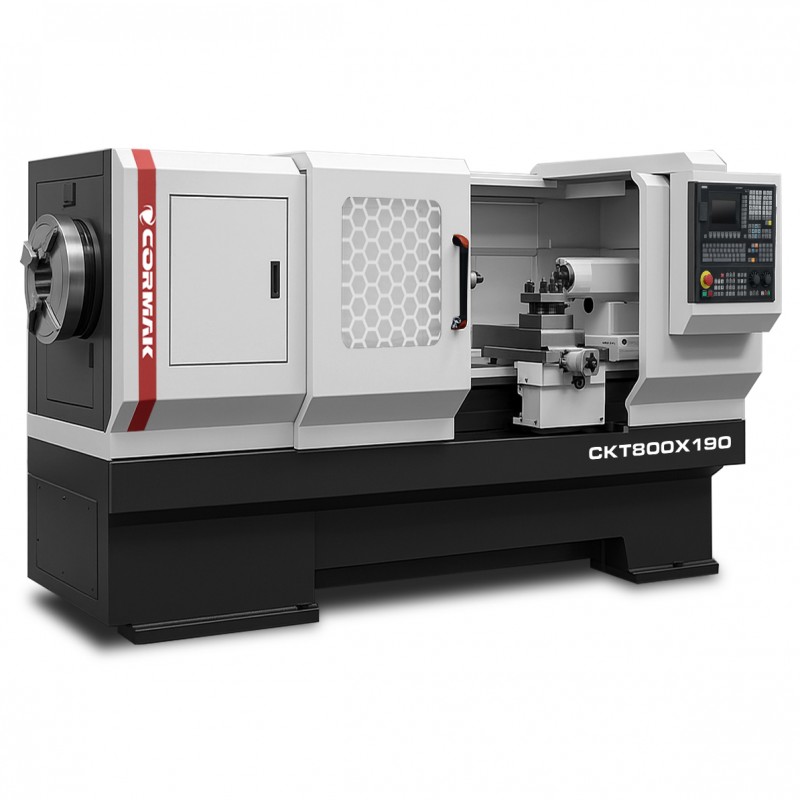

Pipe Lathe CORMAK CKT800x1500 – Precision and Reliability in Pipe Machining
Pipe Lathe CORMAK CKT800x1500 is an advanced numerically controlled lathe designed for precise machining of pipes and metal components in demanding industrial environments. Equipped with a modern Siemens Sinumerik 808D CNC system and a solid construction, it offers high efficiency, precision and versatility.
Main Advantages of the CORMAK CKT800x1500 Pipe Lathe
Pipe Lathe CORMAK CKT800x1500 combines advanced technology with a robust design, providing significant advantages in manufacturing processes. Key benefits include:
- Large working area: Centre distance 1500 mm, maximum turning diameter 800 mm and over the slide 440 mm allow machining of large pipes and metal components, ideal for oil, gas and machinery industries.
- High precision: X/Z axis repeatability of 0.012/0.02 mm and 0.025 mm ensures excellent surface finish even on complex geometries.
- Powerful spindle: Spindle bore of 190 mm (optional 220 mm) and spindle speed range of 22–835 rpm with an 11 kW motor enable efficient machining of hard materials such as steel and titanium alloys.
- Exceptional stability: Weighing 4500 kg, the massive frame minimises vibrations, ensuring stability during intensive turning operations.
- Feed dynamics: Rapid feed speed X/Z 4/8 m/min and maximum travel 420/1350 mm reduce cycle times and boost productivity.
- Flexible configuration: Optional Fanuc control, hydraulic chuck, steady rests or increased spindle bore adapt the machine to specific production needs.
- Intuitive operation: Siemens Sinumerik 808D control with a user-friendly interface and CAD/CAM compatibility simplifies programming and operation.
- Cost-efficiency: Dimensions 4307×2040×1855 mm and an 11 kW drive minimise energy consumption and operating costs.
- Versatile applications: Capable of machining pipes, shafts, flanges and other parts in one cycle, from light metals to high-strength alloys.
- Advanced cooling system: Standard cooling system ensures effective heat removal, extending tool life and improving machining quality.
CNC Pipe Lathe CORMAK CKT800x1500 is the perfect solution for production plants seeking a reliable, accurate and efficient machine for pipe and metal component machining.
Design and Technology of the CORMAK CKT800x1500 Pipe Lathe
Pipe Lathe CORMAK CKT800x1500 is designed with durability, precision and ease of operation in mind. Key components include:
Structure and Bed
The massive frame and wide bed ensure exceptional rigidity and vibration damping. With a centre distance of 1500 mm and a maximum turning diameter of 800 mm, the lathe is ideal for large components such as pipes and shafts.
Spindle and Drive
The spindle with a 190 mm bore (optional 220 mm) and speed range of 22–835 rpm, driven by an 11 kW motor, ensures high cutting performance. The standard 4-jaw chuck 520 mm (optional 3-jaw 400 mm) guarantees reliable clamping of workpieces.
Guideways and Drives
Linear guideways and precision servo drives ensure smooth motion on the X/Z axes (travel 420/1350 mm) with rapid feed speeds of 4/8 m/min, minimising positioning errors and providing high dynamic performance.
Control System
The standard Siemens Sinumerik 808D control (optional Siemens 828D or Fanuc Oi-TF) allows precise programming and optimisation of machining processes. The compact IP65 control panel ensures reliability in workshop environments, and the RS-232 interface allows easy CAD/CAM integration.
Precision and Performance
CNC Metal Lathe CORMAK CKT800x1500 ensures excellent precision due to its advanced CNC control and robust structure. X/Z axis repeatability of 0.012/0.02 mm and 0.025 mm, combined with feed speed 4/8 m/min, allows tool path optimisation, reduces cycle time and enhances productivity. The powerful 11 kW motor makes this machine perfect for pipe and part machining in both batch and single production.
Applications of the CORMAK CKT800x1500 Pipe Lathe
Industrial Lathe CORMAK CKT800x1500 is used in demanding industries such as:
- Oil and gas industry: Machining pipes, flanges and fittings of large diameters.
- Machinery industry: Production of shafts, bushings and structural components.
- Machine building: Turning precise parts for industrial equipment and machinery.
- Shipbuilding industry: Machining large metal components such as drive shafts and structures.
- Manufacturing workshops: Suitable for single and series production requiring accuracy and flexibility.
Thanks to its large spindle bore and advanced configuration options, the CNC Pipe Lathe is an excellent choice for medium and large production facilities.
CNC Control Systems – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF
Pipe Lathe CORMAK CKT800x1500 is equipped with professional CNC control systems from renowned manufacturers such as Siemens and Fanuc, ensuring precision, performance and ease of operation.
Siemens Sinumerik 808D – Compact Control for Standard Applications
Sinumerik 808D is an economical CNC system for metal lathes, offering:
- Intuitive interface: Dedicated keyboard and clear graphic screen make programming and operation simple.
- High reliability: IP65 protection level guarantees stable performance under harsh workshop conditions.
- Advanced functions: Support for standard turning cycles and CAD/CAM integration.
Siemens Sinumerik 828D – Advanced Control for Demanding Processes
Sinumerik 828D is a professional CNC control for industrial lathes, providing:
- High computing power: Rapid data processing for dynamic and accurate machining.
- Extended functionality: Advanced machining cycles, interpolation and tool path optimisation.
- Automation integration: Expandable with additional control modules.
Fanuc Oi-TF – Stability and Precision
Fanuc Oi-TF offers dependable CNC control for CNC pipe lathes, delivering:
- Operational stability: Consistent precision during long production runs.
- Advanced turning features: Thread cutting, grooving and drilling support.
- User-friendly operation: Fast programming and easy control.
Select the CNC control best suited to your production needs to improve machining efficiency and precision!
Technical Specifications
| Centre distance |
1500 mm |
| Maximum turning diameter |
800 mm |
| Maximum turning diameter over cross slide |
440 mm |
| Spindle bore |
190 mm |
| Tools |
4 (option 6, 8) |
| Spindle speed |
22–108, 60–300, 240–835 rpm |
| Maximum X/Z axis travel |
420/1350 mm |
| Rapid feed speed X/Z |
4/8 m/min |
| Axis repeatability X/Z |
0.012/0.02; 0.025 mm |
| Tailstock sleeve diameter |
100 mm |
| Maximum tailstock sleeve travel |
250 mm |
| Tailstock taper |
MT5 |
| Main motor power |
11 kW |
| Machine weight |
4500 kg |
| Overall dimensions |
4307 × 2040 × 1855 mm |
Standard Equipment
- Sinumerik 808D CNC control system
- 2 × manual 4-jaw chuck 520 mm
- 4-position tool post
- Set of soft jaws
- Manual tailstock
- Cooling system
- Automatic lubrication system for gears and guideways
- 24V halogen lighting
- CE Declaration of Conformity
Optional Equipment*
- Spindle bore 220 mm
- 4-tool post
- Handwheels
- 3-jaw chuck 400 mm
- Hydraulic chuck and tailstock
- Control: Fanuc, Siemens 828D
- Fixed and travelling steady rest
*The price refers to the machine only and excludes optional or additional equipment, installation, transport and training — please contact our consultant for further details.
Why Choose CORMAK?
As an experienced CNC machine manufacturer, CORMAK has been delivering reliable industrial solutions for over 20 years. Our CNC metal lathes meet the highest quality standards, hold European safety certificates and are supported by professional service. With extensive warehouse facilities (over 15,000 m²) and a team of specialists, we provide comprehensive technical support and expert advice.
- Experience: 16 years of Siemens CNC service expertise.
- Quality: Machines compliant with European safety standards.
- Support: Professional consultancy and fast warranty and post-warranty service.
By choosing a professional industrial lathe from CORMAK, you invest in precision, reliability and long-term efficiency for your production.
Order the CORMAK CKT800x1500 Pipe Lathe Today!
Boost your production efficiency and machining precision with the CNC Pipe Lathe CORMAK CKT800x1500. Contact our team for detailed information, a personalised quote or to schedule a machine demonstration.
