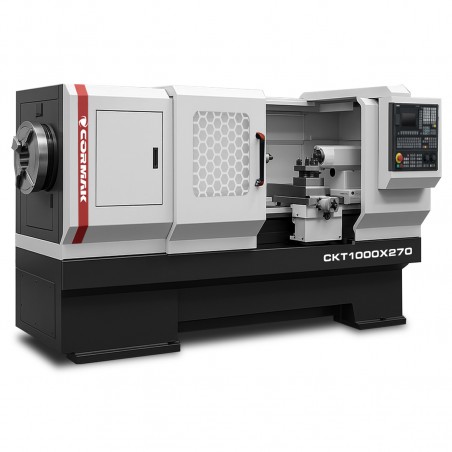

CNC Pipe Lathe CKT1000x2000 Spindle Bore 270 mm – Precision and Performance in Metal Machining
CNC Pipe Lathe CKT1000x2000 Spindle Bore 270 mm is an advanced numerical control lathe designed for the precise machining of pipes and metal components in demanding industrial environments. Equipped with SIEMENS SINUMERIK 808D control and a heavy-duty construction, it offers exceptional precision, productivity, and reliability in industrial applications.
Main Advantages of the CNC Pipe Lathe CKT1000x2000 Spindle Bore 270 mm
The CNC Pipe Lathe CKT1000x2000 Spindle Bore 270 mm combines advanced technology with a rigid design, providing users with significant production benefits. Key advantages include:
- Large Working Area: The 2000 mm distance between centers, maximum swing over bed of 1000 mm, and over cross slide of 620 mm enable machining of large components such as pipes, shafts, and flanges — ideal for the oil, gas, and machinery industries.
- High Precision: Axis repeatability of 0.012/0.02 mm and 0.025 mm ensures excellent surface quality, even for complex geometries.
- Optimized Spindle Bore: A 270 mm spindle bore (optional 220 mm) and speed range of 22–300 rpm driven by an 11 kW motor allow efficient processing of pipes and hard materials such as stainless steel, titanium, and nickel alloys.
- Exceptional Stability: A total machine weight of 8000 kg and massive cast-iron base minimize vibration and ensure rigidity during heavy-duty cutting operations.
- Feed Dynamics: Rapid feed speed of axes X/Z at 4/8 m/min and maximum travel of 1350/620 mm reduce cycle times, increasing productivity.
- Flexible Configuration: Options such as Fanuc control, hydraulic chuck, steady rests, or 6- and 8-position tool posts allow customization to specific production requirements.
- Intuitive Operation: The SIEMENS SINUMERIK 808D interface supports CAD/CAM compatibility and simple navigation, reducing operator training time.
- Energy Efficiency: With dimensions of 4907x2040x1855 mm and an efficient 11 kW motor, the lathe offers low energy consumption and reduced operating costs.
- Versatile Application: Enables machining of pipes, shafts, and flanges in a single cycle — suitable for materials ranging from light metals to high-strength alloys.
- Advanced Cooling System: Standard cooling system ensures optimal heat dissipation, extending tool life and improving surface finish.
- Durability and Reliability: Premium-grade components and robust build guarantee long service life even under intensive production use.
- Operational Safety: Certified compliance with CE safety standards ensures secure and reliable performance in professional manufacturing environments.
- Seamless Integration: Compatible with automation systems and CAD/CAM software for full production line integration.
The CNC Metal Lathe CKT1000x2000 Spindle Bore 270 mm is an ideal solution for production plants requiring reliable and precise machining of large parts and pipes.
Construction and Technology of the CNC Pipe Lathe CKT1000x2000
CNC Pipe Lathe CKT1000x2000 Spindle Bore 270 mm has been designed for durability, precision, and ease of operation. The key components include:
Construction and Bed
The massive cast-iron base and wide bed ensure exceptional rigidity and vibration damping. The 2000 mm distance between centers and maximum swing over bed of 1000 mm allow the machining of large parts such as pipes and shafts while maintaining high stability.
Spindle and Drive
The spindle with a bore of 270 mm (optional 220 mm) and speed range of 22–300 rpm, powered by an 11 kW motor, provides high cutting efficiency. A standard 630 mm four-jaw chuck (optional 400 mm three-jaw chuck) ensures secure workpiece clamping.
Guides and Servo Drives
Linear guideways and precision servo drives ensure smooth movement along the X/Z axes (travel 1350/620 mm) with rapid traverse speeds of 4/8 m/min. This setup minimizes positioning errors and provides high operational dynamics and repeatability.
Control System
The standard SIEMENS SINUMERIK 808D control (optional SIEMENS SINUMERIK 828D or FANUC Oi-TF) enables precise programming and optimization of machining processes. The compact control panel with IP65 protection rating ensures reliability in harsh workshop environments, while the RS-232 interface allows easy integration with CAD/CAM systems.
Precision and Work Efficiency
The Industrial Lathe CKT1000x2000 Spindle Bore 270 mm provides excellent accuracy through advanced CNC control and a stable mechanical structure. Axis repeatability of 0.012/0.02 mm and 0.025 mm, combined with a feed rate of 4/8 m/min, allows optimal tool path control, reducing cycle time and increasing productivity. The 11 kW main motor ensures reliable machining of large parts in both series and single production runs.
Applications of the CNC Pipe Lathe CKT1000x2000
The CNC Metal Lathe CKT1000x2000 Spindle Bore 270 mm is used in various demanding industrial sectors, including:
- Oil and Gas Industry: Machining of large-diameter pipes, flanges, and fittings.
- Machinery Industry: Production of shafts, bushings, and structural components.
- Machine Building: Precision turning of components for industrial machines and equipment.
- Energy Industry: Machining of parts such as turbine components and drive shafts.
- Manufacturing Workshops: Single and series production requiring high precision and flexibility.
Thanks to its large spindle bore and advanced configuration options, this CNC Lathe is an excellent choice for medium and large manufacturing facilities.
CNC Control Systems – SIEMENS SINUMERIK 808D, 828D, and FANUC Oi-TF
The CNC Pipe Lathe CKT1000x2000 Spindle Bore 270 mm offers professional CNC control systems from leading manufacturers such as SIEMENS and FANUC, ensuring precision, efficiency, and ease of operation.
SIEMENS SINUMERIK 808D – Compact Control for Standard Applications
SINUMERIK 808D is an economical CNC control system for metalworking lathes, providing:
- Intuitive Interface: Dedicated keypad and clear graphical display for easy programming and operation.
- High Reliability: IP65 protection ensures stable performance in demanding workshop conditions.
- Advanced Features: Support for turning cycles and full CAD/CAM integration.
SIEMENS SINUMERIK 828D – Advanced Control for Demanding Processes
SINUMERIK 828D is a professional CNC control system designed for industrial lathes, offering:
- High Computing Power: Rapid data processing for dynamic and precise machining.
- Extended Functionality: Advanced machining cycles, interpolation, and toolpath optimization.
- Automation Integration: Expandable with additional control modules for production automation.
FANUC Oi-TF – Stability and Precision
FANUC Oi-TF is a proven and reliable CNC control system for CNC lathes, providing:
- Operational Stability: High precision in long-term and continuous production.
- Advanced Turning Functions: Support for threading, grooving, and drilling operations.
- User-Friendly Interface: Intuitive menu layout for quick programming and simplified operation.
Choose the CNC control system that best fits your production requirements to increase machining precision and process efficiency.
Technical Specifications
| Distance between centers |
2000 mm |
| Maximum swing over bed |
1000 mm |
| Maximum swing over cross slide |
620 mm |
| Maximum workpiece length (between chuck and tailstock) |
2000 mm |
| Spindle bore |
270 mm |
| Tool positions |
4 |
| Spindle speed (2 gears) |
22–108, 60–300 rpm |
| Travel of axes X/Z |
1350/620 mm |
| Rapid feed of axes X/Z |
4/8 m/min |
| Axis repeatability X/Z |
0.012/0.02; 0.025 mm |
| Tailstock sleeve diameter |
100 mm |
| Maximum tailstock sleeve travel |
250 mm |
| Tailstock taper |
MT5 |
| Main motor power |
11 kW |
| Machine weight |
8000 kg |
| Machine dimensions |
4907 x 2040 x 1855 mm |
Standard Equipment
- SIEMENS SINUMERIK 808D CNC control
- 2 x manual four-jaw chuck 630 mm
- 4-position tool post
- Complete set of jaws
- Manual tailstock
- Cooling system
- Automatic lubrication system for gearbox and guides
- 24V halogen lighting
- CE Declaration of Conformity
Optional Equipment*
- Spindle bore 220 mm
- 6- and 8-position tool posts
- Hand wheels for manual operation
- Three-jaw chuck 400 mm
- Hydraulic chuck and hydraulic tailstock
- Control systems: FANUC, SIEMENS 828D
- Fixed and travelling steady rests
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport, and training — please contact our consultant for more details.
Why Choose CORMAK?
As an experienced manufacturer of CNC machines, CORMAK has been providing reliable industrial solutions for over 20 years. Our CNC metal lathes meet the highest quality standards, hold European safety certifications, and are supported by professional after-sales service. With an extensive warehouse space of over 15,000 m² and a team of qualified specialists, we provide full technical support and expert consultation for our clients.
- Experience: 16 years of expertise in servicing SIEMENS CNC controls.
- Quality: Machines comply with strict European safety standards and industrial requirements.
- Support: Professional consultancy and fast warranty and post-warranty service.
By choosing an industrial CNC lathe from CORMAK, you are investing in precision, reliability, and long-term production efficiency.
Order the CNC Pipe Lathe CKT1000x2000 Spindle Bore 270 mm Today!
Boost your production efficiency and machining accuracy with the CNC Pipe Lathe CKT1000x2000 Spindle Bore 270 mm. Contact our sales team for detailed information, a personalized quotation, or to arrange a machine demonstration.
