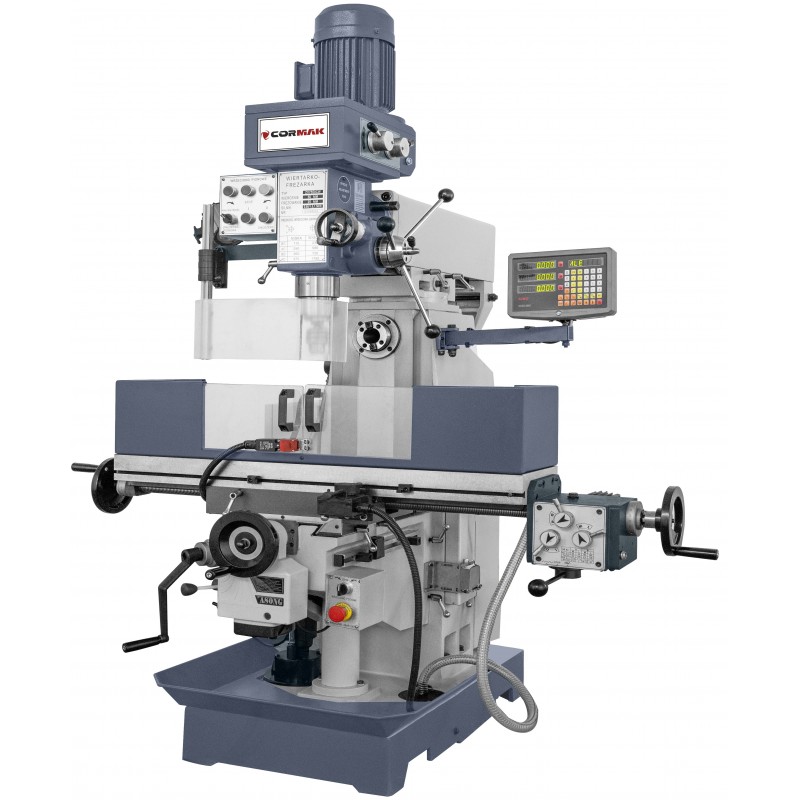

Drilling–Milling Machine CORMAK ZX7550 CW
Order today the CORMAK ZX7550 CW – a compact universal milling and drilling machine, ideal for toolrooms and maintenance departments. This exceptionally versatile machine is ready for immediate use and available from stock. Discover the features that make the ZX7550 CW stand out on the market:
Variant
XZ6350ZB Drilling and Milling Machine
Drilling–Milling Machine CORMAK ZX7550 ZB
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€6,437.50
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
290,00 PLN
Machine features
-
Automatic Table Feed in X and Y Axes: Achieve precision and efficiency with automatic table feed in two planes. Obtain perfect results with minimal effort.
-
Mechanical Table Feed in Z Axis: The innovative mechanical table feed in the Z axis allows for fast and precise machining. Reduce working time without compromising quality.
-
Heavy-Duty Cast Iron Construction: The robust cast-iron body ensures stability and durability, providing precision and accuracy during machining.
-
Massive Cross Table with Precisely Ground Surface: The cross table is precisely ground for optimal surface finish and smooth material processing.
-
Dovetail Guideways on All 3 Axes: The dovetail guideways on all three axes guarantee maximum motion precision and repeatability.
-
Quiet Operation Thanks to Ground Gears: The machine operates smoothly and quietly thanks to ground gear wheels, ensuring comfortable use.
-
Left and Right Spindle Rotation: The bidirectional spindle rotation function offers greater flexibility for various machining operations.
-
Swivelling Head ±90°: The head can be rotated ±90°, enabling diverse applications and easy adaptation to various projects.
The CORMAK ZX7550 CW is more than just a milling and drilling machine – it’s a tool that meets the demands of even the most challenging machining tasks. Order now and experience top-level precision and performance!
| Max drilling diameter | 50 mm |
| Max horizontal milling length | 100 mm |
| Max vertical milling diameter | 25 mm |
| Max tapping diameter | M16 |
| Max boring diameter | 120 mm |
| Spindle taper | ISO 40 |
| Vertical spindle speed range and number (50 Hz) | 115–1750 rpm (8) |
| Horizontal spindle speed range and number (50 Hz) | 60–1350 rpm (9) |
| Distance between spindle and column surface | 200–700 mm |
| Distance between spindle and table | 100–480 mm |
| Distance between spindle axis and table | 0–380 mm |
| Spindle quill travel | 120 mm |
| Table size | 1000 × 240 mm |
| Table travel | 600 × 230 mm |
| Table feed | 24–720 mm/min (8 speeds) |
| Spindle feed | 0.015 / 0.08 / 0.25 mm/rev |
| T-slot number / width / spacing | 5 / 14 mm / 44 mm |
| Motor power S1 | 2 HP / 0.9–1.5 kW |
| Motor power S6 | 2.6 HP / 1.4–2.4 kW |
| Horizontal motor power S1 | 3 HP / 2.2 kW |
| Horizontal motor power S6 | 4.8 HP / 3.6 kW |
| Overall dimensions | 1120 × 1060 × 2035 mm |
| Weight | 970 kg |
Standard equipment
- 3-axis SINO digital readout
- ISO 40/Morse taper reduction sleeves
- Drill chuck 1–16 mm
- EC Declaration of Conformity
- 160 mm machine vice
- Milling arbor with set of collets for end mills
- Horizontal spindle support / overarm
- Long milling arbors
- Basic tools
- 24 V halogen lighting
- Cooling system
- User manual
Optional accessories
- Swivel vices
- Tilting vices
- Precision vices
- Rotary tables
- Dividing heads
- Tapping heads
- Milling heads
- End mills (HSS, HSSE, HSS-PM, VHM)
- Straight shank drills
- Taper shank drills
- Milling inserts
- Hand and machine taps
- Clamping kits
- Tool holders (collet, Weldon)
- Driving arbors
- Drill chucks
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
See online videos
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
Reviews
Stabilna i precyzyjna
Idealna do codziennego użytku. Bardzo stabilna, precyzyjna, sprawdza się przy każdej pracy.
Wysoka jakość i wydajność
Bardzo precyzyjna frezarka. Doskonale sprawdza się przy długich seriach.
Niezawodna i wydajna
Pracuję na niej codziennie, nigdy mnie nie zawiodła. To solidne narzędzie.
Funkcjonalna i łatwa w obsłudze
Frezarka działa bez zarzutu, jest bardzo łatwa w obsłudze i świetnie sprawdza się w moim warsztacie.
Doskonała w codziennej pracy
Maszyna jest niezawodna, świetnie radzi sobie z różnymi materiałami i zleceniami.
Idealna do precyzyjnych zadań
Bardzo stabilna frezarka, świetna do obróbki detali. Zdecydowanie polecam.
Polecam
Od 4 lat mamy dokładnie tę frezarkę firmy Cormak. Do tej pory nie było nic poza rutynową konserwacją, taką jak regulacja i smarowanie. Działa jak zawsze 10-30 godzin tygodniowo.
Solidność i precyzyjność
Frezarka sprawdza się w każdej sytuacji, bardzo precyzyjna i funkcjonalna.
Wydajna i precyzyjna
Zdecydowanie polecam! Maszyna działa bezawaryjnie, idealna do wymagającej pracy.
Doskonała maszyna do warsztatu
Frezarka-wiertarka CORMAK ZX 7550 CW to solidne narzędzie, które radzi sobie z każdym zadaniem.
