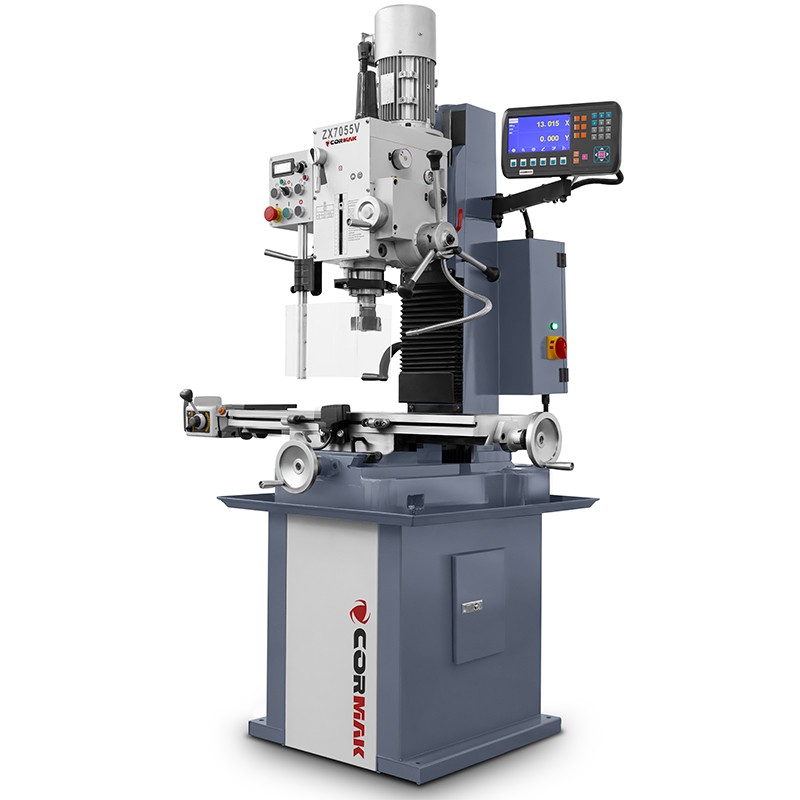

Drilling–Milling Machine CORMAK ZX7055 VARIO

Invest in modernity and versatility with the ZX7055V milling and drilling machine, ideal for small and medium-sized repair or production departments. This medium-sized machine offers not only automatic spindle feed with a vertical head but also threading functions and digital readout as standard. Discover its reliable features that make the ZX7055V an excellent choice for your workshop:

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€3,662.25

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Drilling–Milling Machine CORMAK ZX7055 VARIO – professional precision metalworking drill–mill

Drilling–Milling Machine CORMAK ZX7055 VARIO is an efficient universal milling machine designed for drilling, milling, and tapping in steel and cast iron. Built on a solid cast-iron frame with smoothly adjustable speeds in two ranges, it ensures repeatable accuracy in both single and small-batch production.

Main advantages of the machine

Rigid cast-iron base and column – stability when machining demanding components, vibration reduction, and extended tool life.
Stepless spindle speed regulation in 2 ranges: 75–438 rpm (low) and 438–2500 rpm (high) – optimal speed selection for tool diameter and material.
Automatic spindle feed – uniform cutting and reduced risk of drill breakage during deep drilling.
Ground gears – quiet transmission operation and stable torque on the spindle.
Dovetail guides on the axes – precise table movement and reliable geometry.
Tilting head ±90° and height adjustment – easy chamfering, undercutting, and angular operations.
Left/right spindle rotation – safe threading and tool withdrawal.
Efficient cooling system – effectively dissipates heat during machining, preventing overheating of tools and workpieces, improving accuracy and extending tool life.

Construction and technology

The core of the machine is a heavy cast-iron frame with wide guides minimising deflection during face and cylindrical milling. The massive cross table with a precision-ground surface ensures perfect flatness. The MK4 taper spindle is driven by a 1.5/1.8kW S1/S6 motor with variable speed control. The integrated cooling system stabilises cutting zone temperature and improves surface finish quality.

Precision and performance

The combination of ground gears and robust guides provides high dimensional repeatability and excellent surface smoothness. The automatic spindle feed and two speed ranges allow stable parameters for drilling up to Ø32mm in steel and Ø45mm in cast iron, as well as face milling up to Ø80mm and end milling up to Ø28mm. The ergonomic head height adjustment shortens setup time for both serial and single-piece work.

Applications

The ZX7055 VARIO is recommended for toolrooms, maintenance departments, locksmith workshops, and small-batch production, where a multi-purpose drilling–milling machine combining drilling, milling, countersinking, and threading in one unit is required.

Standard equipment

stepless spindle speed control
electric motorised head height adjustment
cooling system
machine base

Optional equipment

longitudinal table feed with adjustable speed
machine base
cooling system
swivel, tilting, precision vices
dividing tables and indexers
tapping heads and milling heads
end mills (HSS, HSSE, HSS-PM, VHM)
cylindrical and taper shank drills
milling inserts, hand and machine taps
clamping kits
tool holders (collets, Weldon), arbors, drill chucks

Technical data

standard readout. Discover the reliable features that make the ZX7055V DRO the perfect choice for your workshop:

Heavy, stable cast-iron frame: ensures durability and precision. The ZX7055V DRO drill–mill maintains stability even under demanding tasks.
The variable spindle speed control operates in two ranges:
low: 75–438 rpm, high: 438–2500 rpm.
Automatic spindle feed: save time and increase productivity. The vertical head enables efficient machining without constant supervision.
Massive cross table with precision-ground surface: provides perfect flatness for accurate machining.
Dovetail guides: ensure smooth and precise three-axis movement for excellent machining results.
Quiet operation with ground gears: reduced noise for comfortable working conditions.
Left/right rotation: increases flexibility and efficiency in machining processes.
Tilting head ±90° and adjustable height: ideal for angled and multi-position operations.

The ZX7055V drilling–milling machine is a modern tool that redefines machining experience. Order now and experience exceptional performance in your workshop!

The machine base is available as an optional accessory.

Technical parameters:
Maximum drilling capacity		Cast iron (HT200)	45mm
		Steel	32mm
Maximum face milling			80mm
Maximum end milling			28mm
Table size			820×240mm
Table travel (X/Y)			595 / 185mm
Maximum tapping capacity			M24
Spindle taper			MK4
Spindle speed (rpm)	Motor S1/S6 1.5/1.8kW		Low: 75–438 / High: 438–2500
Spindle travel			Manual: 107mm / Automatic: 100mm
Distance spindle–column	250mm
Max. spindle–table distance	445mm
Net weight	350kg
Overall dimensions	1084×924×1550mm / with base 2150mm

Contact a CORMAK advisor. Add ZX7055 VARIO to your basket or send a quote request – we will prepare a configuration tailored to your technology.

Manufacturer: Cormak
