Mill Drill Machine CORMAK HK20 VARIO
The CORMAK HK20 VARIO is a compact mill drill machine designed for versatile use. Ideal for both demanding hobbyists and professional workshops thanks to its ease of operation and advanced functions. It features stepless spindle speed control, ensuring precise adjustment to different machining tasks. The digital drilling depth readout provides high precision, while the reversible spindle rotation adds flexibility for a wide range of applications.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€1,674.75
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine Characteristics
- Digital speed readout
- Digital drilling depth readout
- Stepless speed adjustment
- Precisely mounted spindle bearings
Technical Data
|
DRILLING |
20 mm |
|
FACE AND END MILLING |
16 mm |
|
FACE MILLING |
63 mm |
|
SPINDLE TAPER |
MT2 |
|
SPINDLE FEED |
50 mm |
|
HEAD TILT |
±90° |
|
NUMBER OF SPINDLE SPEEDS |
variable |
|
SPINDLE SPEED RANGE |
50–2250 rpm |
|
WORKTABLE SIZE |
500 x 180 mm |
|
MAX. LONGITUDINAL TABLE TRAVEL |
280 mm |
|
MAX. CROSS TABLE TRAVEL |
175 mm |
|
MAX. VERTICAL HEAD TRAVEL |
280 mm |
|
NUMBER OF T-SLOTS |
3 |
|
T-SLOT SIZE |
10 mm |
|
MOTOR |
0.6 kW / 0.8 HP / 230V |
|
DIMENSIONS |
760 x 580 x 960 mm |
|
WEIGHT |
105 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
Tilting and Swivel Machine Vice CORMAK QHK100
The CORMAK QHK100 vice is made of high-grade cast iron. Its precise guidance makes this tilting and swivel machine vice ideal for precision engineering. The 360° swivel base allows horizontal rotation, while the 90° tilting cradle enables vertical adjustment. The hardened (55±3 HRC) and ground ...More
Cobalt Drill Bit Set CORMAK HSSE TiN 1–13mm 25pcs
The HSSE TiN cobalt drill bit set (1–13mm, 25 pieces) is a complete toolkit for drilling steel, cast iron and hard-to-machine materials. The TiN (titanium nitride) coating increases wear resistance and extends drill life. Ideal for workshops and industrial applications — ensuring precision and durability in everyday work. ...More
Reviews
Niezawodna maszyna
Frezarka HK20 VARIO jest niezawodna i działa na najwyższym poziomie. Doskonała do codziennego użytku.
Stabilna i funkcjonalna
Doskonała do obróbki trudnych materiałów. Bardzo stabilna w trakcie pracy, polecam!
Precyzyjna i funkcjonalna
Maszyna działa bardzo precyzyjnie. W moim warsztacie stała się niezastąpionym narzędziem.
Idealna do długotrwałej pracy
Frezarka działa bez zarzutu nawet przy długich seriach obróbczych. Jestem bardzo zadowolony.
Wysoka jakość i stabilność
Maszyna stabilna i precyzyjna. Sprawdza się zarówno przy małych, jak i większych zadaniach.
Doskonała jakość wykonania
Świetna jakość wykonania i bardzo precyzyjna obróbka. Maszyna nie zawodzi, polecam.
opinia
GENIALNE URZĄDZENIE (takie minimum warsztatowe) wygodna w obsłudze i serwisowaniu, zastąpiła wiertarkę. Polecam rzemieślnikom.
Wydajna maszyna
Frezarka HK20 VARIO to maszyna, która radzi sobie z każdym zadaniem. Bardzo wydajna!
Solidna i niezawodna
Bardzo solidna frezarka, niezawodna w codziennym użytku, świetnie sprawdza się w warsztacie.
Doskonała frezarka do precyzyjnej pracy
Frezarka HK20 VARIO to bardzo precyzyjne narzędzie, idealne do wymagającej obróbki detali.
16 other products in the same category:
Universal Milling Machine CORMAK XL6336L SERVO
The UNIVERSAL Milling Machine XL6336L is a solidly built machine designed for machining heavy workpieces. Its rigid construction ensures stability during operation, while the large table surface allows efficient processing of large components. Thanks to the ability to operate both as a vertical and ...More
Drilling–Milling Machine CORMAK ZX7045 B1 DRO
The CORMAK ZX7045 B1 DRO drilling–milling machine is a precision tool designed for accurate metalworking. Perfect for drilling, reaming, and enlarging holes up to 45/40 mm in cast iron, as well as tapping threads up to M12. With milling capabilities up to 80 mm and slot milling up to 22 mm, this ...More
- Reduced price
Drilling–Milling Machine CORMAK ZX7045 BXL
The CORMAK ZX7045 BXL drilling–milling machine is a versatile unit, perfect for drilling, reaming, enlarging holes, tapping, milling, and slotting. Designed for work in cast iron, it allows hole machining up to 32/45 mm and thread tapping up to M12. With a milling capacity of up to 80 mm and slot ...More
Drilling–Milling Machine CORMAK HK25L VARIO with Stand
The CORMAK HK25L VARIO is a compact drilling–milling machine designed for hobbyists and professionals seeking versatility in a single tool. Its exceptionally compact construction combines excellent functionality, making it an indispensable addition to any workshop. The MK3 spindle taper ensures ...More
Drilling–Milling Machine CORMAK ZX7045
The CORMAK ZX7045 drilling–milling machine is designed for drilling, reaming, and enlarging holes up to 45/40 mm in cast iron, as well as for thread cutting up to M12 mm, face milling up to 80 mm, and slot milling up to 22 mm. It is also suitable for cutting and face milling operations. The machine is available directly from stock. ...More
- Reduced price
Drilling–Milling Machine CORMAK ZX7045E 400V
The CORMAK ZX7045E drilling–milling machine is a versatile metalworking tool designed for drilling, reaming, boring, threading, and both peripheral and face milling. It allows precise drilling in cast iron up to Ø45/40 mm, threading up to M12, milling up to 80 mm wide, and slotting up to 22 mm ...More
- Reduced price

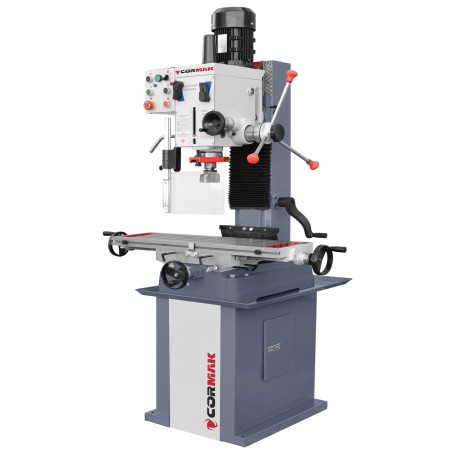

Drilling–Milling Machine CORMAK ZX7045 230 V
