Surface Grinding Machine 610x1600

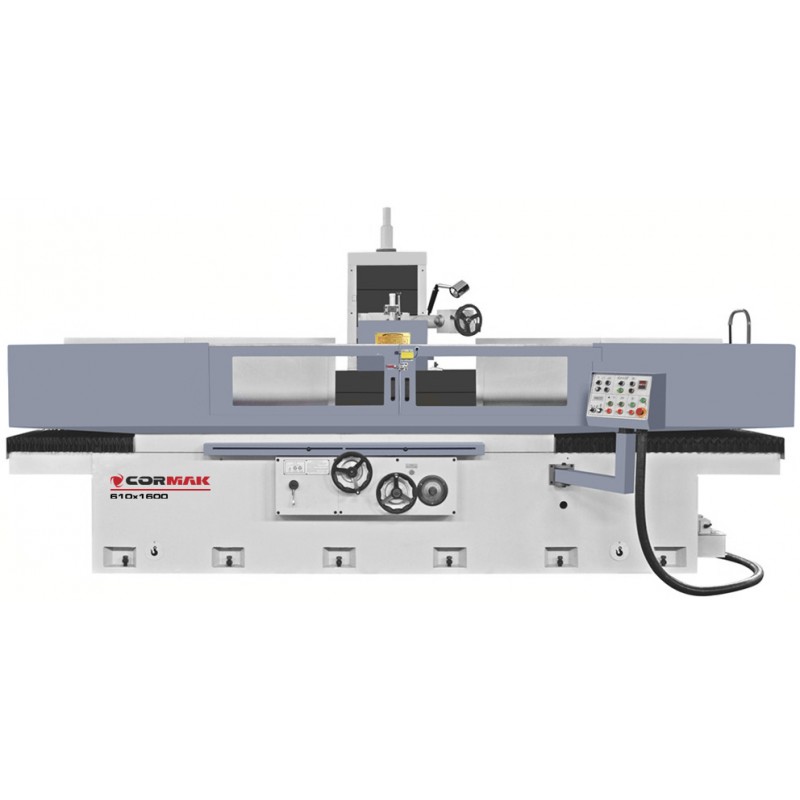

The Surface Grinding Machine 610x1600 is an advanced device designed for precision grinding of flat surfaces and complex shapes in the metalworking industry. Equipped with Japanese NSK bearings and a double V-shaped guideway, it ensures high machining accuracy with a robust structure. A key advantage of this magnetic surface grinder is its ability to handle heavy loads up to 1300 kg, making it a reliable tool for demanding production applications.

Main advantages of the machine

The Surface Grinding Machine 610x1600 stands out with features that directly contribute to efficiency and durability in daily use. Designed with high-quality components such as NSK bearings and an ABB spindle motor, it delivers optimal performance with minimal energy consumption. Below are the key benefits of its design and specifications that make it a top performer among large surface grinders:

• Double V-shaped guideway: Ensures table stability and precise feed, reducing vibration and improving machining accuracy.
• Japanese NSK bearings: Guarantee long-lasting, failure-free operation, minimising friction and ensuring smooth motion.
• ABB spindle motor: With a power of 18.5 kW and speed of 960 rpm, it enables efficient machining of hard materials.
• Waterproof and dustproof spindle: Protects against contamination, extending component life and maintaining high precision.
• SIEMENS electronic components: Provide reliable control, minimising errors and increasing operational safety.
• Maximum load capacity 1300 kg: Enables machining of heavy parts without compromising stability, reducing production costs.
• Longitudinal table speed 5–25 m/min: Allows fast machining of large surfaces, improving throughput in production cycles.

Construction and technology

The Surface Grinding Machine 610x1600 is built on a robust machine bed ensuring rigidity and minimal vibration during machining. The spindle, operating at 960 rpm and mounted on Japanese NSK bearings, guarantees stable operation of a grinding wheel sized 500x75x305 mm. The hydraulic system provides table feed within 5–25 m/min, while automatic cross and vertical feeds allow precise movement control. The double V-shaped guideway ensures accurate motion, while SIEMENS electronic components simplify control. The integrated lubrication and cooling systems prevent overheating, extending tool life. Motors, including a 5.5 kW hydraulic motor, are optimised for long-term durability. The total machine weight of 10,400 kg highlights its stability under heavy-duty industrial operation. This technology makes the magnetic surface grinder the perfect choice for tasks requiring consistent reliability.

Precision and performance

In the Surface Grinding Machine 610x1600, precision comes from advanced feed and control mechanisms. The automatic crossfeed range of 1–30 mm and vertical feed from 0.005 mm enable tolerance below 0.01 mm, crucial for manufacturing high-accuracy components. Efficiency is improved by the maximum table feed speed of 5–25 m/min and vertical motion speed of 0.05–2 m/min, ensuring rapid machining of large surfaces without sacrificing accuracy. The grinding wheel runs at optimal speed, providing even material removal, reduced wear, and surface finish quality below Ra 0.2 μm. SIEMENS components eliminate manual errors, reduce setup time, and increase productivity. Compared to standard surface grinders, this model’s higher load capacity of 1300 kg allows machining of larger workpieces with exceptional precision. Energy-efficient motors lower operational costs, and the sturdy build minimises downtime, making the machine an efficient tool for process optimisation.

Applications

The Surface Grinding Machine 610x1600 is designed for large-scale industrial operations specialising in metalworking, such as machine factories, toolrooms, and service centres. It is ideal for grinding flat surfaces of machine parts, dies, moulds, and precision components requiring high dimensional accuracy. In B2B environments prioritising repeatability and efficiency, this magnetic surface grinder supports both series and single-piece production, handling materials such as steel, cast iron, and aluminium. It is also suitable for reconditioning worn components in heavy industry, where the maximum spindle-to-table distance of 820 mm allows machining of larger parts. The machine is especially recommended for companies pursuing automation of grinding processes, where automatic feeds reduce dependence on operator skills.

Technical data

Standard equipment

• Machine for grinding all surfaces and complex shapes
• Japanese NSK bearings
• Double V-shaped guideway
• SIEMENS electronic components
• Waterproof and dustproof spindle
• ABB spindle motor
• CE certification
• CE declaration

Optional equipment

• Additional grinding wheels with various grit sizes
• Advanced coolant filtration system
• CNC control panel
• Extended service warranty
• Angular grinding attachment

Contact us to receive a detailed offer for the Surface Grinding Machine 610x1600. Our team of experts will help you select the optimal configuration tailored to your production needs.
