Magnetic Surface Grinding Machine 200x480 MYS820 – Compact precision for industry

The Magnetic Surface Grinding Machine 200x480 MYS820 is an advanced machine designed for precise grinding of small and medium-sized metal components. Its compact design and modern technologies ensure high machining accuracy and reliability in demanding industrial environments.

Main advantages of the Magnetic Surface Grinding Machine 200x480 MYS820

The Magnetic Surface Grinding Machine 200x480 MYS820 is an ideal solution for production facilities requiring precise machining in a compact form. Designed for professionals, it combines advanced technologies such as dual-axis automatic feeds and precision linear guides with a rigid construction, ensuring reliability and efficiency. Compact dimensions (1680x1140x1800 mm) and a weight of 800 kg make it a perfect choice for smaller workshops or spaces with limited floor area. Key benefits include:

• High grinding precision: Precision linear guides and automatic feeds provide machining accuracy of up to 0.01 mm on the vertical axis, ensuring excellent surface finish.
• Compact work area: A 400x200 mm magnetic table is ideal for machining small and medium-sized parts, increasing versatility of applications.
• Smooth automatic feed: The dual-axis feed system allows precise table movements up to 530 mm longitudinally and 220 mm crosswise, ensuring efficient operation.
• Stability and durability: The heavy-duty 800 kg structure minimises vibrations, ensuring stability during intensive use.
• Easy maintenance: Centralised lubrication of guides reduces the need for manual maintenance, extending the machine’s service life.
• Ready to operate: Equipped with a digital readout and fully prepared for immediate production start, reducing setup time and downtime.

Construction and technology

Rigid structure and precision components

The Magnetic Surface Grinding Machine 200x480 MYS820 features a massive 800 kg frame providing excellent stability during operation. Hardened and ground linear guides eliminate vibrations, ensuring smooth table movement and high-quality surface finishing. The spindle is powered by a 1.1 kW motor and works with a 200x19x32 mm grinding wheel, enabling efficient machining of various materials.

Advanced feed system

The machine is equipped with automatic feeds on two axes, offering a maximum longitudinal travel of 530 mm and a cross travel of 220 mm. The manual cross-feed per handwheel revolution is 2.5 mm, and the vertical feed is 1.25 mm, allowing precise adjustment of machining parameters for specific tasks.

Cooling system and magnetic table

The magnetic surface grinder includes a high-performance cooling system that prevents overheating of both the workpiece and the grinding wheel. The 400x200 mm magnetic table ensures stable clamping of workpieces, improving safety and machining precision, especially for small parts.

Precision and performance

The Magnetic Surface Grinding Machine 200x480 MYS820 delivers excellent surface finish thanks to precise feed control and a stable structure. The maximum distance between spindle and table (490 mm) allows machining of components of various sizes. Precision linear guides and automatic feeds ensure smooth surfaces with minimal tolerances, essential for precision manufacturing.

Applications

The Magnetic Surface Grinding Machine 200x480 MYS820 is designed for workshops and industrial plants requiring precise machining of small and medium-sized components. It is used in:

• Toolmaking industry: Production and regrinding of cutting tools and small moulds.
• Machine industry: Grinding of machine parts such as base plates and precision components.
• Repair workshops: Refurbishment of small mechanical components requiring high precision.
• Precision industry: Machining of parts for electronics, optics, and small automotive components.

Technical specifications

Technical parameters

Standard equipment

• Magnetic table
• Digital readout (DRO)
• Grinding wheel

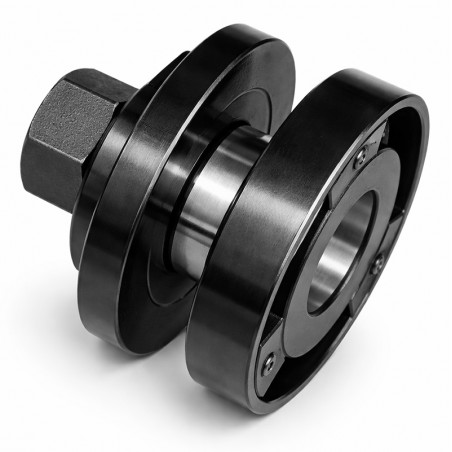

• Wheel flange
• Cooling system
• Halogen lighting
• CE documentation

Optional equipment

• Automatic wheel dressing system: Improves precision and extends wheel life.
• Advanced CNC control system: Enables programming of complex machining cycles.
• Additional magnetic table: Expands clamping capacity for different workpieces.
• High-capacity coolant system: Designed for intensive grinding operations.

Order your surface grinding machine today

Increase your production efficiency with the Magnetic Surface Grinding Machine 200x480 MYS820. Contact us for a detailed quotation or to schedule a demonstration. Choose precision and reliability — choose CORMAK surface grinders!
