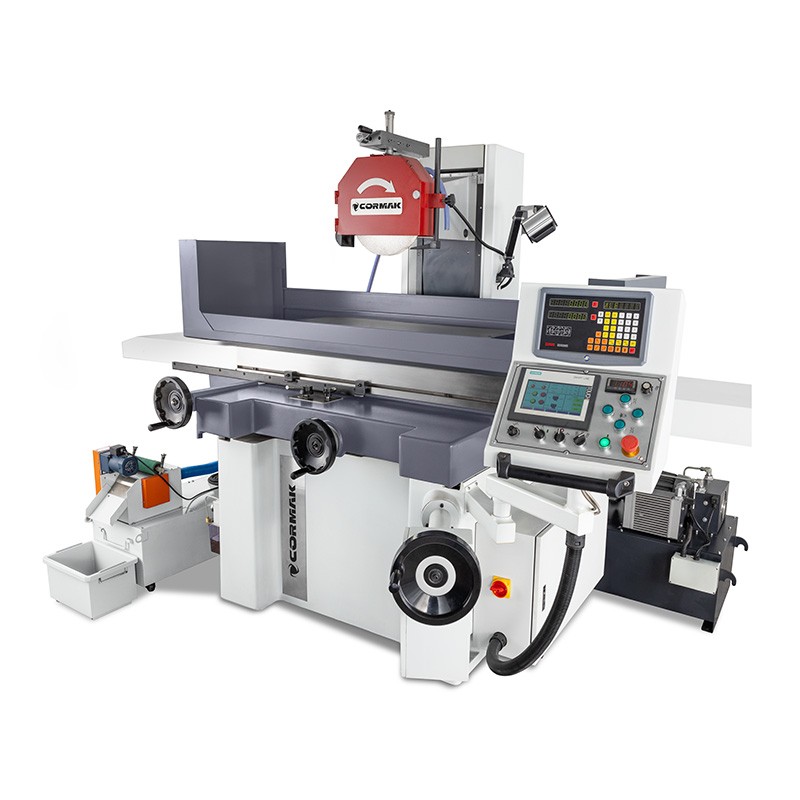

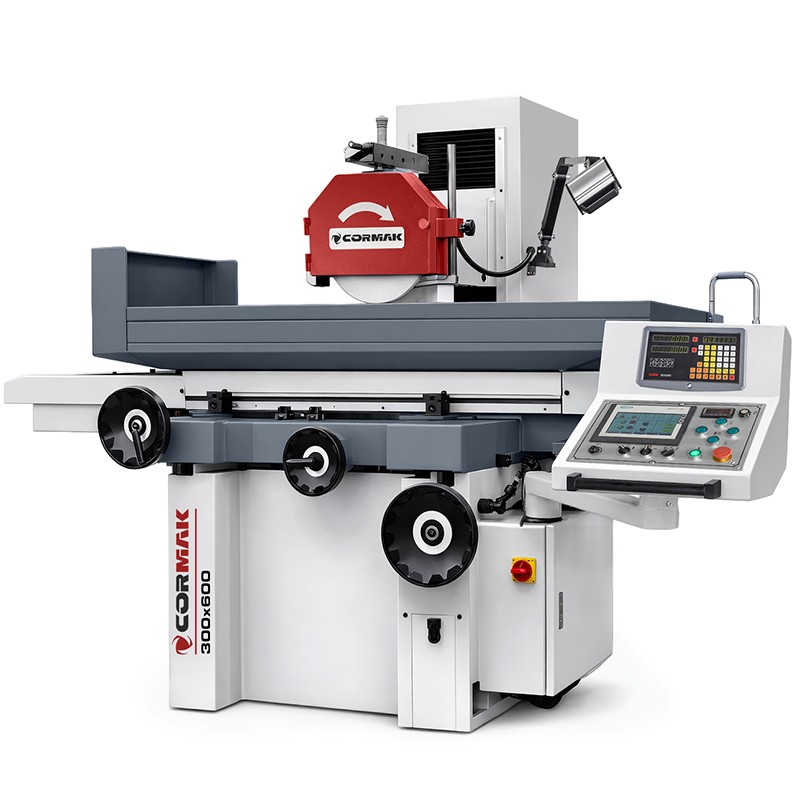

Surface Grinding Machine 300x600

The Surface Grinding Machine 300x600 is an advanced unit designed for precise grinding of flat surfaces in industrial environments. Equipped with automatic feeds for three axes and a 300x600 mm magnetic table, it offers exceptional accuracy and reliability. Its compact structure and ability to handle loads up to 270 kg make it an ideal choice for smaller production facilities.

Main advantages of the machine

The Surface Grinding Machine 300x600 has been designed for precise metalworking in environments where high surface finish quality and process efficiency are essential. Its advanced technological solutions and robust construction provide users with reliability and optimised operational costs. Below are the key benefits that distinguish this machine from other surface grinders, making it an indispensable tool for professional workshops and production plants:

• Automatic feeds for three axes: Allow precise control of longitudinal, cross and vertical table movement, minimising operator errors and ensuring high repeatability of machining.
• Digital readout: Ensures accurate monitoring of table position, enabling surface finish of Ra below 0.2 μm and minimal dimensional deviations.
• Solid machine bed construction: Made of high-quality cast iron, it ensures stability when machining components weighing up to 270 kg, reducing vibrations and increasing durability.
• High machining precision: With vertical feeds from 0.005 mm and a grinding wheel speed of 1450 rpm, the machine achieves tolerances below 0.01 mm, meeting precision production requirements.
• Efficient cooling system: The integrated cooling system prevents overheating of workpieces and tools, extending their lifespan and improving surface quality.
• 300x600 mm magnetic table: Facilitates fast and secure clamping of workpieces, increasing efficiency and operator safety.
• Optimised energy performance: The 4 kW spindle motor and total motor power of 6.6 kW ensure high efficiency with optimised energy consumption, reducing operating costs.

Construction and technology

The Surface Grinding Machine 300x600 features a robust construction combining compact size with advanced technology. The machine bed, made of high-quality cast iron, ensures rigidity and minimises vibrations during machining, which is essential for precision grinding. The spindle running at 1450 rpm, mounted in precision bearings, works with a 350 x 40 x 127 mm grinding wheel, ensuring stable and uniform machining. The hydraulic system handles longitudinal table feeds in the range of 7–25 m/min, while automatic cross and vertical feeds allow precise movement control with an accuracy of 0.005 mm. The magnetic table measuring 300x600 mm ensures secure workpiece clamping, speeding up machining preparation. The integrated cooling system effectively dissipates heat, preventing thermal deformation and extending tool life. The drive motors, including the 4 kW spindle motor, are optimised for energy efficiency and low noise levels. The overall mass of 3200 kg highlights the stability and reliability of the machine in moderately demanding industrial environments.

Precision and work efficiency

The Surface Grinding Machine 300x600 offers exceptional precision thanks to advanced feed and control mechanisms. The automatic cross feed in the range of 0.1–8 mm and vertical feed from 0.005 mm allow tolerances below 0.01 mm, essential for producing precision components. The maximum table feed of 310x650 mm with cross speeds up to 990 mm/min enables fast machining of smaller surfaces without compromising accuracy. The grinding wheel running at 1450 rpm ensures uniform material removal, minimising tool wear and improving surface finish quality. The digital readout system for all three axes eliminates manual errors, reducing setup times and increasing throughput. Compared to other surface grinders, this model stands out with its compact structure and 270 kg load capacity, allowing accurate machining of smaller components. Energy-efficient motors and robust construction minimise downtime, making this magnetic surface grinder an effective tool for optimising industrial processes.

Applications

The Surface Grinding Machine 300x600 is intended for production facilities specialising in metalworking, such as tool shops, small and medium-sized machine component factories and service centres. It excels in grinding flat surfaces of components such as dies, injection moulds, base plates and precision parts requiring high dimensional accuracy. In B2B environments where repeatability and efficiency are key, this magnetic surface grinder supports both series and single-piece production, machining materials such as steel, cast iron and aluminium alloys. Its applications also include refurbishment of worn components in industry, where the maximum distance from table to spindle of 580 mm enables machining of workpieces of various sizes. The machine is particularly recommended for companies seeking automation of grinding processes, thanks to automatic feeds and digital readout, which reduce reliance on operator skill.

Technical data

Limit position diagram

Standard equipment

• Digital readout,
• 300x600 mm magnetic table,
• Grinding wheel,
• Grinding wheel balancing arbor,
• Grinding wheel flange,
• Cooling system,
• Dressing device for the grinding wheel,
• Chip separator,
• Halogen lighting installation,
• User manual,
• CE declaration.

Optional equipment

• Additional grinding wheels of various grits,
• Advanced coolant filtration system,
• CNC control panel,
• Extended service warranty,
• Angle grinding attachment.

Contact us to obtain a detailed offer for the 300x600 surface grinding machine. Our specialists will help you choose the optimal configuration tailored to your production facility’s requirements.
