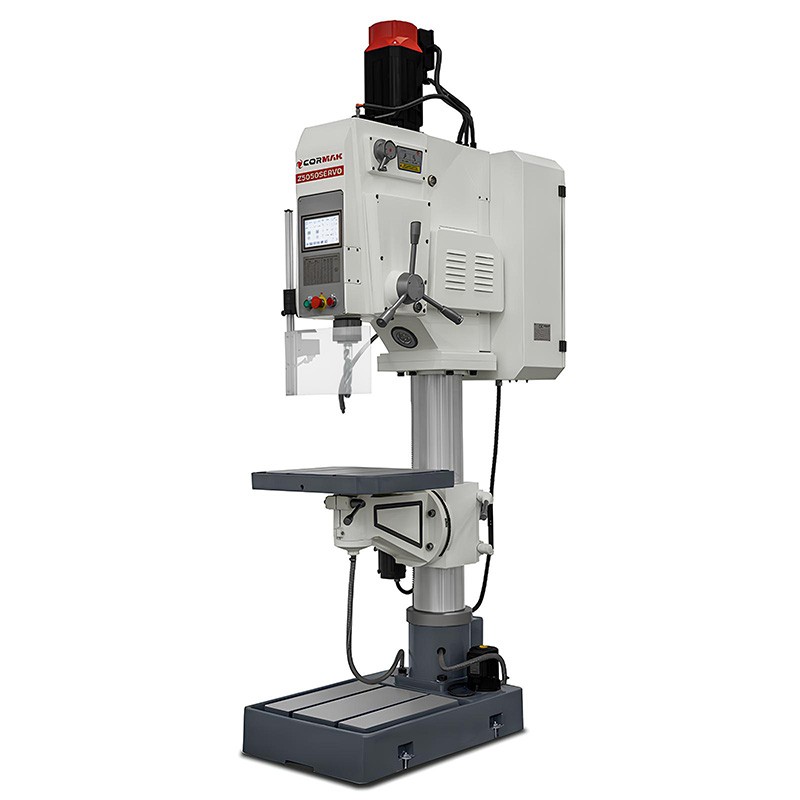

Pillar Drill for Metal CORMAK Z5050 SERVO with Autofeed and Cooling System
The CORMAK Z5050 SERVO column drill is an advanced industrial machine designed for precise metal machining in workshop and production environments. The control system supervises all key operating parameters, blocking settings that could cause overload or mechanical damage. This solution guarantees not only safe operation but also consistent process repeatability, high drilling and tapping precision, and reliability during intensive use.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€9,000.00
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Pillar Drill CORMAK Z5050 SERVO with Autofeed and Cooling System
The industrial CORMAK Z5050 SERVO is an advanced pillar drill designed for professional metal machining in workshops and industrial plants. The machine offers high drilling and tapping precision as well as reliability even under intensive operation. The control system supervises operating parameters, preventing settings that could overload the mechanism, ensuring safety and process stability.
Main advantages of the CORMAK Z5050 SERVO drill
- Precise metal machining thanks to a stable φ180 mm column and a heavy-duty 545×470 mm worktable.
- Safe operation – the system limits parameter settings that could endanger the machine mechanics.
- Automatic spindle feed ensuring uniform feed during drilling and tapping.
- Integrated cooling system extending tool life and improving machining quality.
- Intuitive operation – large touchscreen enables control of spindle speed, drilling depth and feed settings.
- High performance – drilling up to φ50 mm, tapping up to M30, maximum quill travel 245 mm.
- Ergonomic operation – motorised table lifting and automatic tool ejection increase comfort and working speed.
Construction and technology
The CORMAK Z5050 SERVO column drill features a heavy-duty column and solid worktable, ensuring stability during drilling and tapping of heavy components. The MK5 taper spindle works with the automatic feed system, and precise spindle guidance minimises vibration and deviation. The cooling system supports efficiency and operational safety during prolonged use.
Precision and performance
Thanks to its stable construction, the CORMAK Z5050 SERVO pillar drill for metal ensures repeatability and consistent machining quality. The control system monitors settings, eliminating the risk of mechanical overload, while the automatic spindle feed enables smooth movement during drilling and tapping. A high-quality drive and stepless transmission guarantee smooth spindle speed adjustment within the range of 50–2000 rpm.
Applications
The CORMAK Z5050 SERVO column drill is used in professional mechanical and manufacturing facilities, including:
- Drilling in steel, aluminium and other metal materials.
- Precision tapping of structural components.
- Machine production and servicing, industrial workshops and machining plants.
Standard equipment
- Touchscreen display
- SERVO feed motor
- Keyed drill chuck 3–16 mm / B18
- Arbor MK5 / B18
- Reduction sleeves MK5/4, MK4/3, MK3/2
- Motorised table lifting
- Cooling system
- Tapping mode
- LED lighting
- Digital speed and drilling depth readout
- Safety guard
Technical specifications
| Max. drilling capacity | 50 mm |
| Drilling capacity in cast iron | 60 mm |
| Max. tapping capacity | M30 |
| Drill chuck | 3–16 / B18 mm |
| Spindle taper | MK5 |
| Min. spindle speed | 50 rpm |
| Max. spindle speed | 2000 rpm |
| Speed change | Stepless (50–250 / 250–2000) |
| Drive transmission | Gearbox |
| Automatic spindle feed – range | 0–765 mm/rev. |
| Drill table tilt | -45°–+45° |
| Max. spindle/column distance | 360 mm |
| Max. spindle/table distance | 570 mm |
| Max. spindle/base plate distance | 1170 mm |
| Quill travel | 245 mm |
| Column diameter | 180 mm |
| Table width | 545 mm |
| Table depth | 470 mm |
| T-slots | 14 mm |
| Motor power S1 100% | 3.7 kW |
| Voltage | 400 V |
| Dimensions – width | 700 mm |
| Dimensions – depth | 1050 mm |
| Dimensions – height | 2430 mm |
| Weight | 794 kg |
The CORMAK Z5050 SERVO pillar drill for metal is the choice for professionals who expect precision, high performance and full control over the machining process. Invest in equipment that increases efficiency and operational safety in your facility.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
