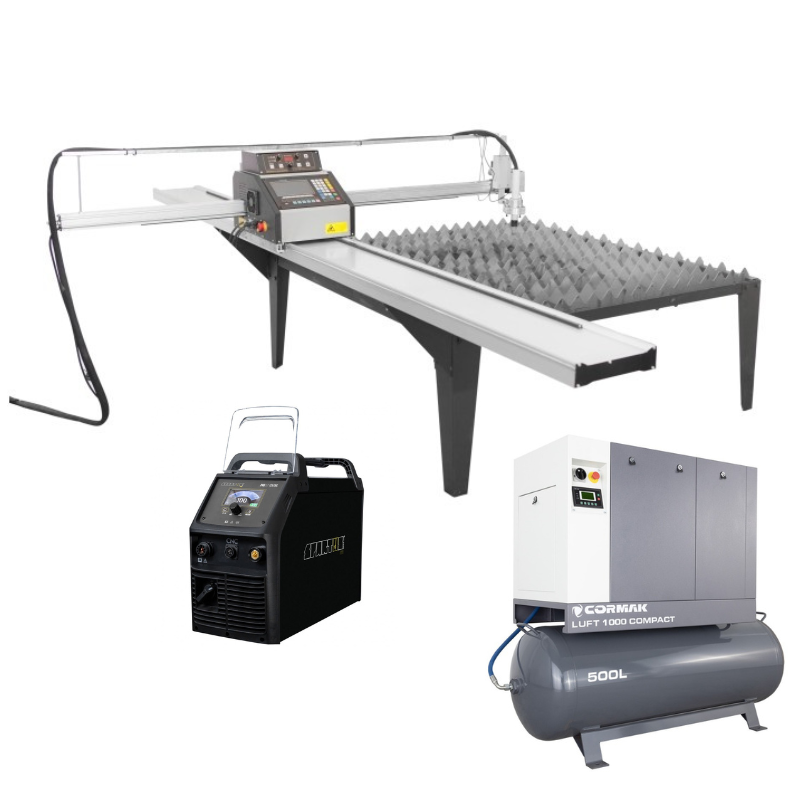

Plasma and Oxy-Fuel Cutting Machine CORMAK ZZ 1500x3000 + LUFT 1000 Compressor + SPARTUS ProCUT 125CNC Power Source

Characteristics of the Plasma and Oxy-Fuel Cutting Machine ZZ 1500x3000

The CNC1 plasma or oxy-fuel cutting machine is a mobile device intended for contour cutting of sheet metal elements. The machine does not require anchoring to the floor, which greatly reduces installation time. Moreover, it can be placed anywhere in the hall without the need for expensive foundations.

The machine is equipped with a high-quality drive system which, combined with the low weight of the gantry, makes the plotter one of the fastest machines available on the market. It can be used for both manual and automated cutting. It is fitted with a digital controller allowing the cutting of complex shapes. This model of CNC plasma plotter performs excellently in the shipbuilding, machinery, and power industries. The CNC1 uses a precise guide system along the X and Y axes.

The operation of the cutter is controlled by an electronic Sino-USA control system characterised by high precision and elimination of operational errors. The machine is very easy to program. Manual programming is possible for simple shapes, and automatic programming for more complex figures. The display shows the cutting pattern and torch movement.

For easier programming, the machine includes original FastCAM software. The software makes work more efficient and intuitive.

FastCAM is a CAD/CAM software designed for creating and defining cutting paths for elements processed on CNC cutting machines. The program is installed on a desktop or laptop computer in the office. After defining the cutting process, a ready control code is generated and transferred to the machine’s control system. The FastCAM software is part of the standard equipment of our machines.

Plasma and Oxy-Fuel Cutting Machine ZZ 1500x3000 – key information:

• User-friendly interface – easy to use even for operators without prior experience with FastCAM-type software
• Import of drawings in *.txt format from any CAD program (e.g. AutoCAD, SolidWorks, etc.)
• MACRO – a library of standard shapes allowing the creation of figures without the need for CAD drawing. The program provides 2D figures.
• NESTING – optimal use of the sheet through automatic arrangement of elements on the plate
• DEMO – displays the work cycle (path) without activating the plasma or oxygen source

THC VOLTAGE HEIGHT CONTROLLER:

The machine is equipped with a THC (torch height control) voltage regulator for the plasma torch. Precise adjustment (±0.1 mm) of the torch distance from the sheet during cutting ensures higher accuracy and eliminates the disadvantages of capacitive sensors and roller systems. Controller parameters are automatically retrieved from the Automatic Cutting Parameter Selection Table.

Technical parameters of the Plasma and Oxy-Fuel Cutting Machine ZZ 1500x3000

Technical parameters of the SPARTUS ProCUT 125CNC power source

Technical parameters of the LUFT 1000 compressor

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
