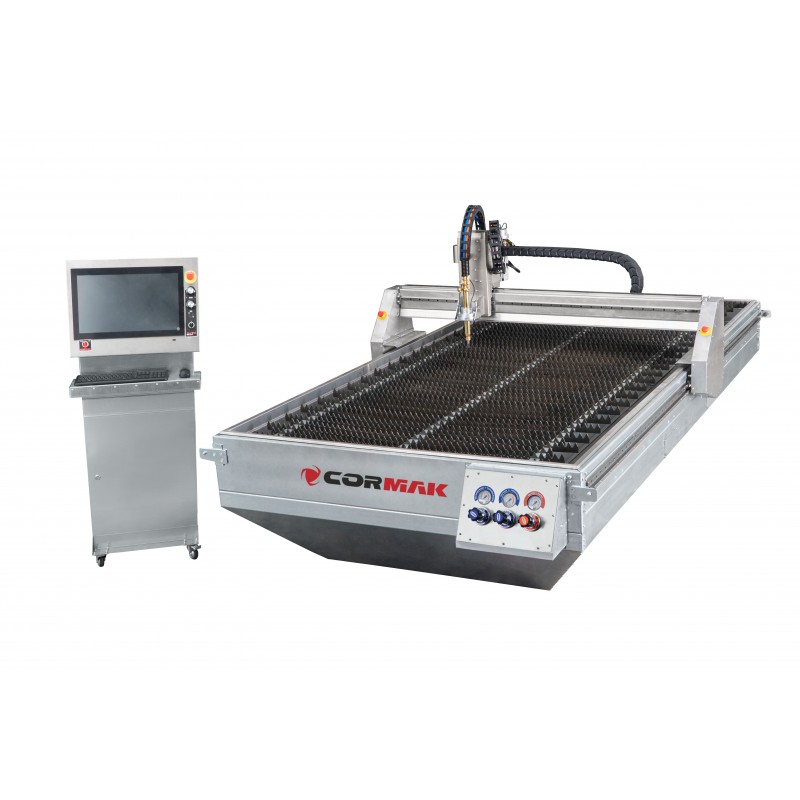

VolCut is a modern plasma and oxy-fuel cutting machine designed for cutting metal sheets, offering an ideal solution for production enterprises. The numerically controlled machine significantly shortens production time and reduces process costs. The plasma–gas cutter is suitable for continuous operation using both plasma and gas systems. Its compact design makes the oxy-fuel cutter easy to transport, resistant to damage and ready for operation immediately after delivery. The working area of the numerically controlled table — 3000×1500 mm — provides optimal adaptability to production needs.
Versatility, the key word for the engineers designing the VolCut-class CNC machine, has resulted in the ability to cut sheets from thin 1 mm up to as much as 100 mm thick.
Gas systems are an established method of thermal sheet processing, offering the great advantage of cutting thick materials. The gas mixture easily handles any metal — ferrous or non-ferrous alloys — and all types of steel. It is the perfect solution when combined with a plasma system.
An additional advantage is the compact design and the water table that eliminates the need for filtration and ventilation systems.
Technical Data
| Travel speed |
18,000 mm/min |
| Frame structure |
STAINLESS STEEL |
| Cutting thickness with gas |
0–150 mm (plasma depending on plasma source power) |
| Working area |
3000 × 1500 mm |
| Dry machine weight |
820 kg |
| Water capacity |
500 L |
| Overall machine dimensions |
3880 × 2190 × 1450 mm |
| Table load capacity |
5000 kg |
| Travel height |
200 mm |
| Vertical axis range |
200 mm |
| Dual-side gantry drive |
YES |
The machine comes as standard with systems known from Speed series machines, such as:
- TSC – Torch Sensor Control – a unique dual-referencing system providing additional protection for the torch against accidental damage
- Stop&Go – a system allowing simulation of the cutting process, easy start-up, and manual cutting functions
- QS – Quick Start – machine ready for operation in under one minute
- RBE – Rotary Basing Edge – innovative edge referencing
- LSCG – Leveling System Chamfering Gates – a system aligning the gantry position to the sheet, eliminating the need to place the material perpendicularly or parallel to the table
- DR – Dynamic Referencing – a user-friendly procedure for dynamically indicating the 0,0 point, useful when processing irregular formats or offcuts
- Machine control system based on a dedicated, fully proprietary controller that significantly increases precision and quality of work, simplifies maintenance, and extends machine lifespan
- Innovative material referencing system
- Transport holes enabling easy machine movement using forklifts
