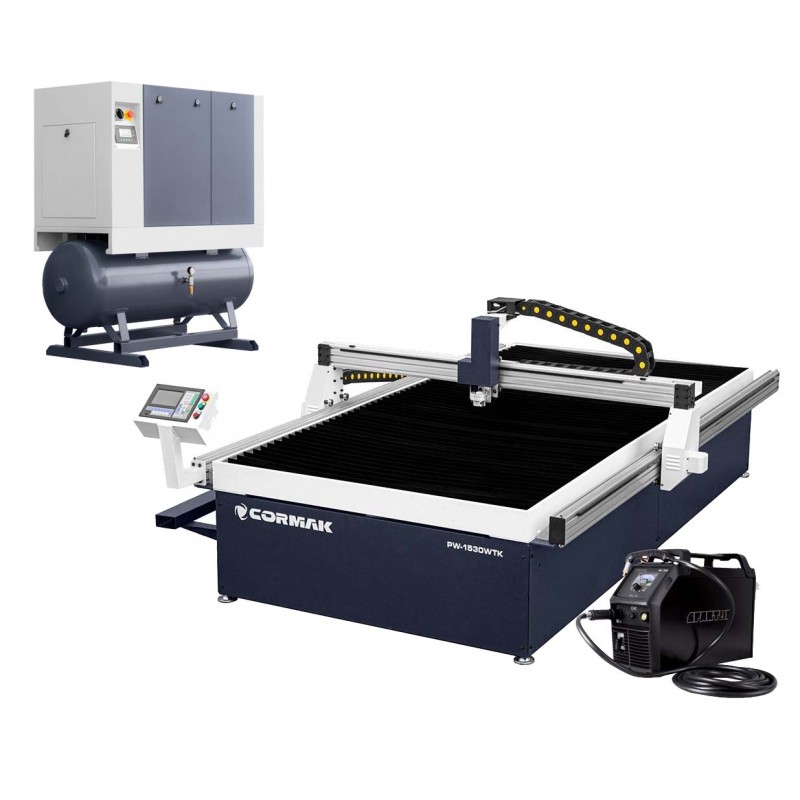

CNC Plasma Cutting Machine PW-1530 WTK + Luft 700 Compressor + SPARTUS® ProCUT 125CNC Power Source

The CNC plasma cutting machine with a water table, complete with the Luft 700 compressor and SPARTUS® ProCUT 125CNC power source, is designed for cutting sheet metal components into any pre-programmed shape. This machine features a robust structure and easy operation. Our CNC cutter ensures repeatability and high positioning accuracy (0.1 mm), enabling cut shapes to be transferred directly to the next production stage.

The water table provides reduced consumable wear, improved cutting quality, and lower fume generation — no need for separate fume or dust extraction.

CORMAK plasma plotters are durable, reliable and user-friendly solutions for precise plasma cutting.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€16,543.50

Product available on request. Please contact our sales department.

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Why Choose It?

Water table – eliminates the need for fume and exhaust extraction systems
Compact machine dimensions allow it to be installed almost anywhere
Voltage height controller THC
Precise torch positioning
Very accurate cutting without the need for further processing
Sheet detection system
Convenient operator console
Intuitive machine control
Possibility of cutting and gouging in steel
Machine operation training at the customer’s or seller’s site – arranged individually
Library of standard geometric shapes

Features and Equipment

Dimensions 1850×3800×1500 mm (W×D×H), weight – 1000 kg
Working area 1500 × 3000 mm
Y-axis range 140 mm (clearance)
Cutting speed 50–7000 mm/min
Rigid and stable structure
Water table
Voltage height controller
Torch height adjustment system
Torch height and stabilisation sensor
FastCAM software – licensed version
USB port and internal/external memory
User-friendly interface – easy operation even for those unfamiliar with FastCAM
Import of *.txt drawings from any CAD software (e.g. AutoCAD, SolidWorks, etc.)
MACRO – library of standard geometric shapes allowing quick figure creation without drawing
NESTING – automatic part arrangement on the sheet
DEMO – displays the work cycle (cutting path) without activating the plasma or oxygen source

Technical Parameters of Luft 700 Compressor

Compressor
Motor power	5.5 kW
Overall dimensions	1250 × 600 × 850 mm
Weight	120 kg
Voltage	400V / 50Hz
Outlet fitting size	1/2"
Performance	Average 690 L/min (0–6 bar) 650 L/min (6 bar) 650 L/min (8 bar) 630 L/min (10 bar)
Technical Parameters of IZBERG N10S Dryer
Motor power	0.29 kW
Air inlet/outlet diameter (BSP)	1"
Working pressure up to	10 bar
Inlet temperature	≤38°C
Dimensions	700 × 420 × 650 mm
Capacity	1500 L/min
Voltage	230 V
Weight	45 kg
Refrigerant type and quantity	R134a, 400 g

Technical Parameters of SPARTUS® ProCUT 125CNC Power Source

Supply voltage	~3 × 400V ± 10% 50 / 60 Hz
Cutting current [A]	20 – 100
Max. cutting thickness [mm]	55
Duty cycle [%]	100
PLASMA PARAMETERS
Output voltage [V]	88 – 106
Recommended working pressure [bar]	5.5
Air consumption [L/min]	250
Post-gas	YES
Non-contact arc ignition without HF	YES
2T / 4T	YES
OTHER PARAMETERS
Current consumption [A]	28
Power factor (cosφ)	0.76
Efficiency η [%]	85
Insulation class	H
Protection class	IP21S
Weight [kg]	32
Dimensions [mm]	770 × 270 × 490

The plotter is prepared for transport with moving components secured and overall size reduced. Assembly of movable parts and protective covers exposed to possible transport damage is required. We offer the option to deliver the machine fully assembled — arranged individually due to machine dimensions.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Manufacturer: Cormak
