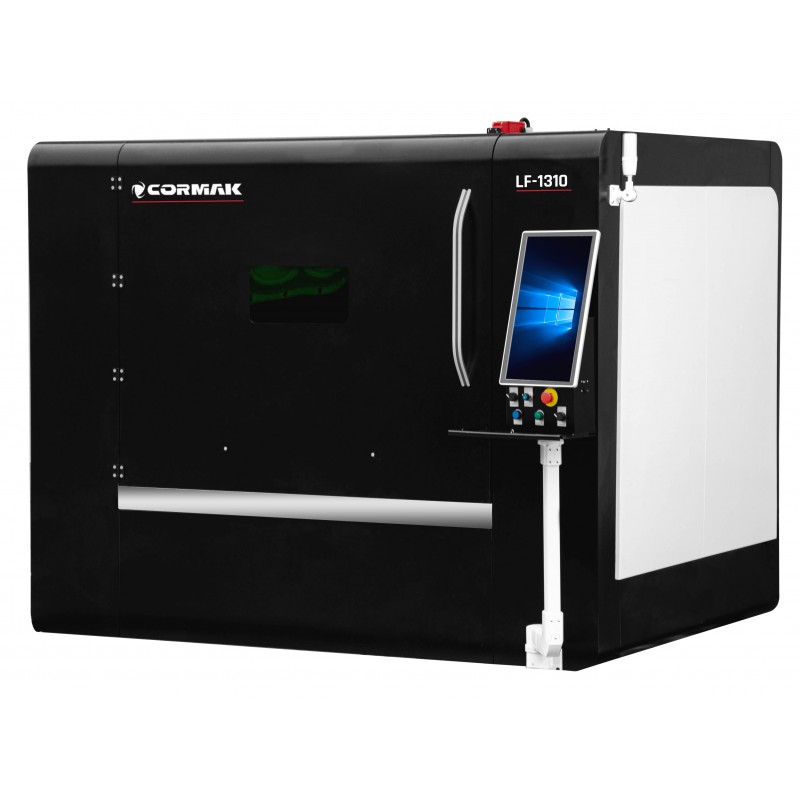

Fibre laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO2 technology but also feature many benefits that enable up to 70% production growth and improved quality. FIBER technology allows cutting of sheets and other materials of various thicknesses — from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometres, providing intensity 100 times higher than that of CO2 systems of comparable power.
MAIN ADVANTAGES OF THE LASER
- reliable optical fibre,
- no wearing parts,
- fibre laser source occupies about one-third less space,
- high energy efficiency – 100,000 h of operation,
- versatile application (special steels, mild steel, stainless steel, copper, brass, aluminium, titanium).
Fibre laser
- increases work efficiency by 80%,
- reduces maintenance costs by 70%,
- saves 80% of energy,
- minimises gas consumption,
- saves 30% of floor space.
Safety and cleanliness
- fully enclosed laser housing,
- observation window with CE-certified laser safety glass,
- fumes generated during cutting can be filtered inside, keeping the environment clean.
Dual linear guides and dual ball screws
Both sides are equipped with dual rail guides and dual ball screws ensuring perfect linear motion and circular accuracy even during high-speed cutting.
- No manual focusing. The software automatically adjusts the focusing lens for automatic perforation and cutting of sheets of different thicknesses. The autofocus adjustment speed is ten times faster than manual adjustment.
- Wider adjustment range. Adjustment range -10 mm ~ +10 mm, accuracy 0.01 mm, suitable for various sheet thicknesses 0 ~ 20 mm.
- Long service life. The collimating and focusing lenses have a water-cooled heat sink, lowering the cutting head temperature to extend its service life.
Technical parameters
| WORKING AREA |
1300x1000 mm |
| POWER |
1500W (option*: 1000W 2000W 3000W)
|
| TOTAL POWER |
10 kW |
| REPEAT POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
40 m/min |
| MAXIMUM ACCELERATION |
0.5G |
| DIMENSIONS |
2110x2160x1630 mm |
| WEIGHT |
1500 kg |
| POWER SUPPLY |
400V 50Hz |
Cutting parameters
Actual parameters may vary depending on technical conditions and materials used.
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
