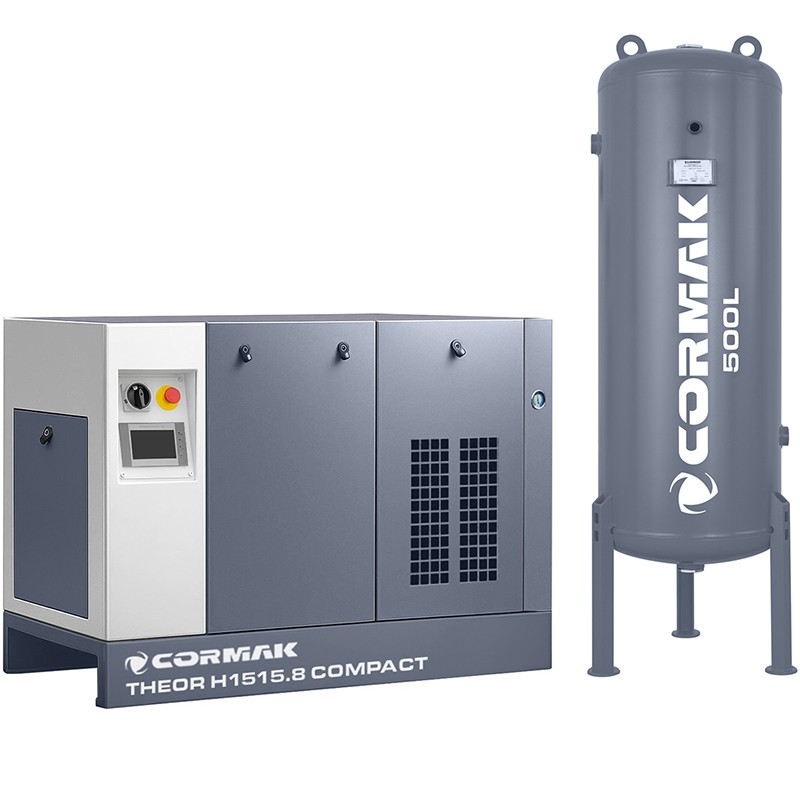

High-pressure compressor CORMAK THEOR H1515.8 Compact – ideal for Fiber laser cutting machines
Are you looking for a professional and compact solution to power your Fiber laser cutting machine? The CORMAK THEOR H1515.8 Compact screw compressor is an excellent choice, designed for precise laser cutting. With 15 kW power and actual capacity up to 1700 L/min, it provides a stable and reliable compressed air supply – essential for efficient operation of laser systems.
THEOR H1515.8 Compact screw compressor reaches a maximum working pressure of 15.8 bar, enabling effective cutting of a variety of materials. The intuitive electronic panel from the MAM series allows full control over the unit’s operation, making it easy to monitor and modify settings.
✅ Pressure: up to 15.8 bar | ✅ Capacity: up to 1700 L/min | ✅ Power: 15 kW
CORMAK screw compressors – for those who expect the highest quality and performance
Do you need solutions that exceed market standards? CORMAK compressors are synonymous with innovation and reliability, created for demanding applications such as precise laser cutting.
Innovative design
Advanced engineering, European manufacturing precision and a modern, robust housing ensure long service life and reliability in all conditions.
Integrated refrigeration dryer
The COMPACT version with integrated dryer saves space and provides a comprehensive solution in one unit.
Quiet operation and comfort
An exceptionally low noise level thanks to sound and vibration reduction systems ensures comfortable working conditions.
Intelligent control
The MAM electronic panel offers advanced parameter monitoring, service planning and diagnostics with remote access capability.
CORMAK – technology driving success in laser cutting
Main advantages of the 15 kW induction motor
- Stable pressure: guarantees cutting quality and reliable operation
- Longer service life: lower mechanical loads increase component durability
- Quieter operation: automatic speed control reduces noise
- Flexibility: the unit adapts to changing demand
- Advanced control: full diagnostics, monitoring and remote management
Screw module – the heart of the compressor
CORMAK screw modules ensure high efficiency, durability and operating precision – essential in the laser industry.
- Energy efficiency: low energy consumption at maximum performance
- Stable pressure: confidence in the operation of the entire pneumatic system
- Durability: resistance to intensive operation
Integrated refrigeration dryer – air quality at the highest level
The two-stage drying system ensures effective moisture removal and protection of the pneumatic installation. A variable-speed fan automatically adjusts cooling performance to operating conditions, which enables energy savings.
In addition, the dryer is also equipped with a dual filtration system: a pre-filter with 3.0 µm accuracy, which removes larger solid contaminants, and a precision filter with 0.1 µm accuracy, which retains fine oil particles (aerosols) and other contaminants, ensuring air of the highest purity.
CORMAK control panel – full control at your fingertips
- Monitoring: pressure, temperature, unit status
- Settings modification: quick parameter adjustment
- Notifications: failures, servicing, irregularities
Technical parameters: THEOR H1515.8 compressor
| Compressor |
| Motor power |
15 kW |
| Dimensions |
1550x750x1200 mm |
| Weight |
500 kg |
| Outlet thread |
G 3/4" |
| General parameters |
| Capacity at 0-6 bar |
1700 L/min |
| Capacity at 6 bar |
1650 L/min |
| Capacity at 8 bar |
1500 L/min |
| Capacity at 10 bar |
1500 L/min |
| Capacity at 12 bar |
1350 L/min |
| Capacity at 14 bar |
1350 L/min |
Technical parameters: 16 BAR 500L RECEIVER:
| Receiver capacity (L) |
500 |
| Maximum allowable pressure PS (bar) |
16 |
| Test pressure PT (bar) |
22.88 |
| Maximum allowable temperature TSmax. (°C) |
50 |
| Minimum allowable temperature TSmin. (°C) |
-20 |
| Diameter (mm) |
600 |
| Height (mm) |
2110 |
Connections:
- G1/2" - 2 pcs
- G2" - 2 pcs
- G 1 1/4" - 2 pcs
Note !!!
The receiver accessories do not include a safety valve, which must be purchased separately by the user.
