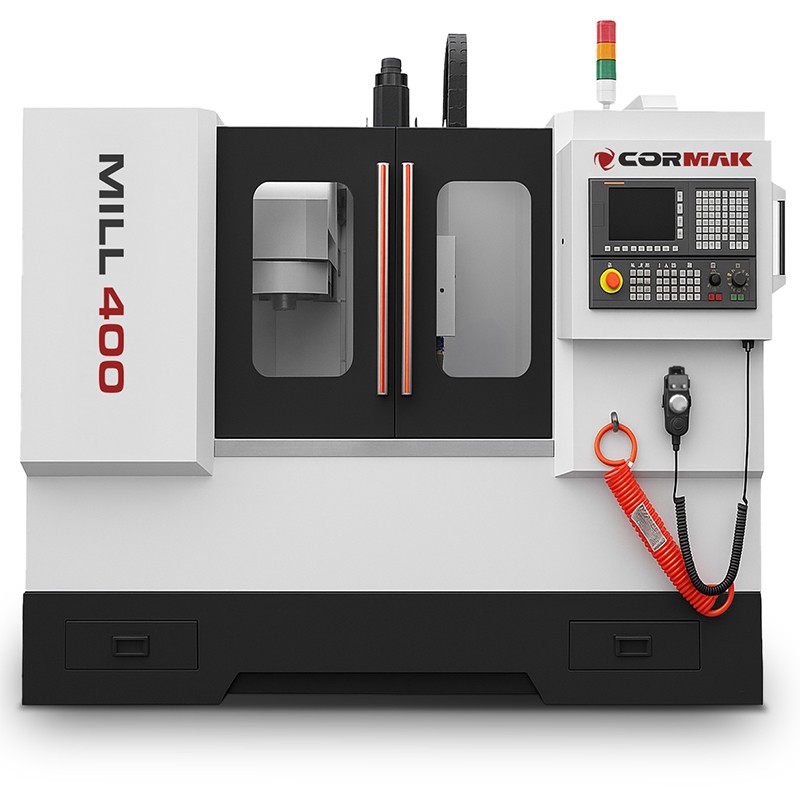

Machining Centre CORMAK MILL 400 800×240 SIEMENS SINUMERIK

Main Advantages

• Rigid cast-iron frame providing stability and eliminating vibrations during machining, ensuring exceptional accuracy.
• Precision linear guides on all axes guarantee high repeatability and accuracy of movement.
• Hermetically sealed work enclosure ensuring operator safety and minimising contamination and chip spread in the workspace.
• High-quality ball screws in the X, Y and Z axes provide minimal backlash and maximum precision during machining.
• SIEMENS servo drives ensure reliability and efficiency, enabling smooth and precise axis motion.

Design and Technology

• 8000 rpm spindle – ideal for milling metals, aluminium and other engineering materials.
• 10-position tool magazine allows automatic tool changes, improving productivity and saving time.
• Automatic lubrication system ensures long service life and reduces the need for manual maintenance of moving components.
• Pneumatic system supports safety covers, clamping and auxiliary functions.
• Siemens 808D operator panel with an intuitive interface and full real-time machine control.

Precision and Performance

• Positioning accuracy: ±0.02 mm
• Repeatability: ±0.01 mm
• Rapid feed rates: 10/10/8 m/min
• Cutting feed rate: 2.6–2500 mm/min
• Servo torque X/Y/Z: 6/6/7.7 Nm

Applications

The MILL 400 machining centre is the perfect solution for:

• Manufacturing precision metal components and parts for automotive, aerospace and mechanical industries.
• Toolmaking shops and prototyping facilities requiring flexibility and accuracy in unit and small-batch production.
• Industries machining complex parts requiring high precision, such as energy and electrotechnical sectors.
• Small and medium-sized companies producing components for machinery, tools and equipment.

Technical Parameters

Standard Equipment

• SIEMENS SINUMERIK 808 Advanced control system
• SIEMENS servo drives
• 8000 rpm spindle
• 12-position tool magazine
• Hermetically sealed work enclosure
• Automatic lubrication system
• Pneumatic system
• LED work lighting
• Three-colour alarm light
• Lathe chuck and tailstock

Optional Equipment*

• Siemens 828D control system
• Spindle speed 10,000 / 12,000 rpm
• Through-spindle coolant system
• 4th axis
• Chip conveyor with container

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Choose Proven Technology – CNC MILL 400 Machining Centre

By choosing the MILL 400 metal milling centre, you are investing in a proven technical solution that meets the expectations of the most demanding users. Gain precision, stability and professional technical support from CORMAK.

Contact our technical advisor to select the configuration of the machining centre tailored to your production needs!

CNC Control Systems – SIEMENS SINUMERIK 808 Advanced, SINUMERIK 828D and Fanuc Oi-TF

We offer professional CNC control systems from the renowned brands Siemens and Fanuc, ensuring precision, efficiency and ease of operation. These solutions are ideal both for smaller workshops and for demanding industrial applications.

Siemens Sinumerik 808D – Compact CNC Control for Basic Applications

SIEMENS SINUMERIK 808 Advanced is a modern, cost-effective CNC control system designed for entry-level lathes and milling machines. The system has been developed for small and medium-sized enterprises, offering:

• Intuitive operation – a simple graphic-based interface that simplifies machine programming and configuration.
• High reliability – robust construction resistant to demanding workshop environments.
• Wide compatibility – perfectly suited to machines with standard technological requirements.
• An excellent solution for beginner CNC users wishing to work with a modern control platform.

Siemens Sinumerik 828D – Advanced Control for Demanding Applications

Sinumerik 828D is a professional CNC control system designed for milling and turning machines requiring greater precision and performance. Its key features include:

• High computing power – fast data processing enables dynamic and accurate cutting performance.
• Extended technological functions – advanced machining cycles, interpolation and toolpath optimisation functions.
• Durable, compact design – engineered to operate in harsh industrial environments.
• Easy automation integration – supports expansion with additional modules and process control options.
• CAD/CAM compatibility – seamless cooperation with design software and production management systems.

User manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual

Fanuc Oi-TF – Stability and Precision in Turning Operations

Fanuc Oi-TF is one of the most popular CNC control systems for lathes, known for its reliability and ease of use. It is widely applied in the metalworking industry thanks to the following features:

• Exceptional operational stability – delivers reliability and accuracy even during long-term serial production.
• Advanced turning functions – supports multiple turning cycles, including threading, grooving, drilling and other machining operations.
• Intuitive user interface – fast programming and easy operation through a clear screen and optimised menu layout.
• Wide compatibility – suitable for integration with various lathe models.
• Effective process optimisation – allows precise control over machining parameters, improving time and material efficiency.

With Fanuc Oi-TF, operators benefit from stable and precise machining performance, resulting in higher productivity and superior machining quality.
