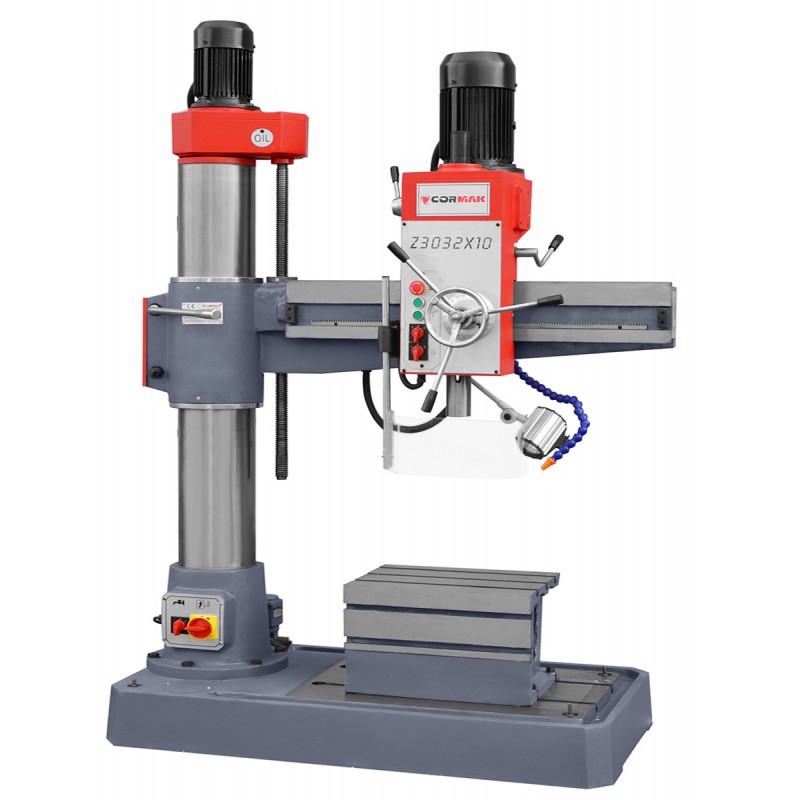

Radial Drilling Machine for Metal CORMAK 3032x1000M

Radial Drilling Machine CORMAK 3032x1000M is an advanced industrial machine designed for precise drilling in metals such as steel and cast iron. The machine stands out for its massive column construction and adjustable radial arm, ensuring stability and flexibility in machining large components. Its key advantages are high precision and efficiency achieved through modern technological solutions.

Main advantages of the CORMAK 3032x1000M radial drilling machine

The CORMAK 3032x1000M radial drilling machine has been designed for demanding industrial applications, offering reliability, precision and ergonomics. Its advanced design and technical parameters allow efficient machining under heavy-duty conditions, minimising downtime and operating costs. Below are the key features that distinguish this machine among other radial drills available on the market:

• Massive column construction weighing 750 kg: Ensures exceptional stability and eliminates vibration, resulting in precise drilling and longer cutting tool life.
• Adjustable radial arm with a range of 280–940 mm: Allows drilling of large and irregular parts without repositioning, improving production efficiency.
• Spindle with MT4 taper and speed range 108–1,000 rpm: Six-speed gearbox enables precise adjustment to different materials and hole diameters, from steel to cast iron.
• Spindle stroke 155 mm: Allows deep drilling in one cycle, reducing machining time and improving efficiency.
• Two-speed motor 1.5/2.2 kW: Provides high torque and reliability in continuous operation while optimising energy consumption.
• Cube table 465 × 330 mm: Enables secure clamping of irregularly shaped workpieces, improving safety and accuracy.
• Ergonomic control panel: Located at the front of the machine for intuitive operation and quick parameter adjustment.
• Ground column surface: Ensures smooth and precise arm travel, minimising play and enhancing positioning accuracy.

Thanks to these features, the CORMAK 3032x1000M radial drill is an ideal choice for professionals seeking a reliable and versatile machine for intensive industrial use.

Design and technology

The design of the CORMAK 3032x1000M radial drilling machine is based on a solid steel column of large diameter, ensuring rigidity and resistance to dynamic loads. The radial arm, adjustable from 280 to 940 mm, allows precise spindle positioning, while the ground column surface guarantees smooth movement and minimal play.

Key components

• Spindle: Made of high-quality hardened steel, with Morse taper MT4, allowing quick tool changes. The rotational speed range (108, 162, 262, 398, 665, 1,000 rpm) is controlled via a gearbox, ensuring flexibility in parameter selection.
• Feed system: Mechanism with 155 mm stroke and precise depth control, supported by a cooling system that prevents overheating of tools and workpieces.
• Drive motor: Two-speed electric motor with 1.5 kW at low speed and 2.2 kW at high speed, powered by 400V, ensuring stable torque under all working conditions.
• Base and worktable: Robust base with T-slots and cube table 465 × 330 mm allow secure clamping of parts, improving machining precision and safety.
• Lubrication system: Central lubrication of key points reduces wear of components and lowers maintenance costs.

Advanced manufacturing technology, including precision-ground guide surfaces, ensures long-term reliability and high machining quality.

Precision and performance

The CORMAK 3032x1000M radial drilling machine provides exceptional precision thanks to its rigid construction and accurate adjustment mechanisms. Adjustable spindle distance from the table (330–1,060 mm) and from the base (340–1,125 mm) enables machining of components of various sizes with micrometric tolerance. Quick spindle speed change and smooth arm adjustment reduce setup time, increasing production efficiency.

Compared to conventional column drills, the radial design offers greater flexibility for large workpieces, enabling drilling of holes up to 32 mm in steel and cast iron. The integrated cooling system minimises thermal deformation, ensuring repeatable results in serial production.

Applications

The CORMAK 3032x1000M radial drill is intended for metalworking plants, mechanical workshops, and maintenance departments. It is ideal for drilling holes in large steel structures, machine components, moulds, and parts for automotive, agricultural and construction industries. Its versatility and reliability make it indispensable in environments requiring precision and heavy-duty operation.

Standard equipment

• Cube table 465 × 330 mm
• Drill chuck MT4 with key
• Cooling system with pump and tank
• Set of service wrenches
• Machine base with mounting grooves
• User manual

Optional accessories

• Machine vice in various sizes
• HSS drill set for steel and cast iron
• Automatic spindle feed
• LED work lamp
• Digital readout (DRO) system for increased precision

Technical data

Optimise your production processes with the CORMAK 3032x1000M radial drilling machine. Contact us for detailed information, expert advice, or to place an order – we guarantee prompt delivery.
