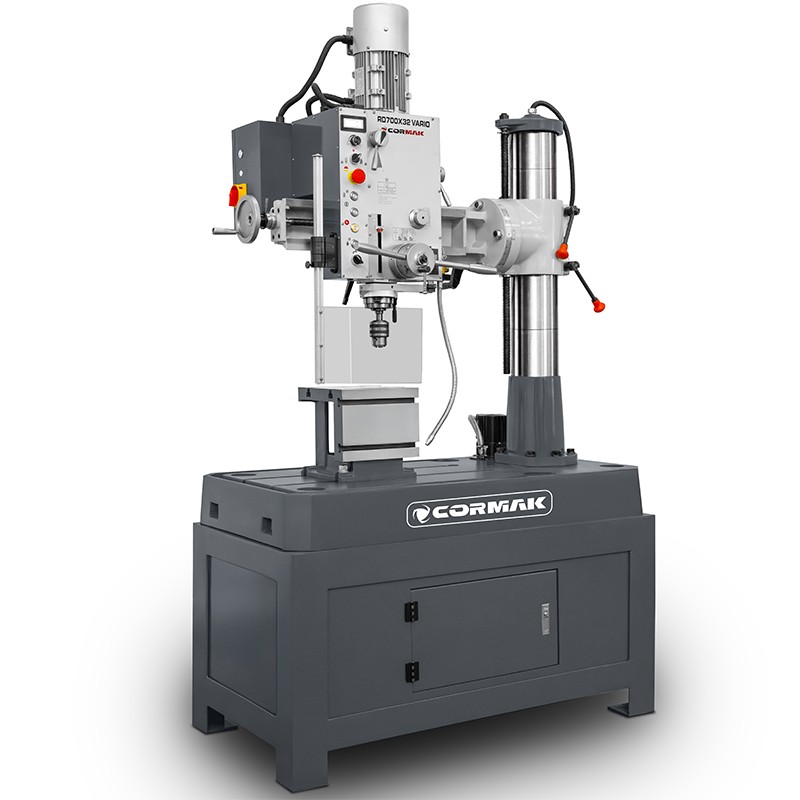

Radial Drilling Machine with Milling Function CORMAK RD700x32 VARIO

The CORMAK RD700x32 VARIO is a robust radial drilling and milling machine designed for precision metalworking. Its heavy-duty cast-iron base ensures vibration-free operation and stability. The machine features a motorised arm height adjustment, a digital speed display, and an ergonomic control panel for efficient operation. The large spindle speed range enables accurate drilling, tapping, and milling of steel and cast iron components.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€5,442.50

Product available on request. Please contact our sales department.

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Radial Drilling Machine CORMAK RD700x32 VARIO is a modern and versatile industrial machine designed for drilling, countersinking, reaming, and tapping in steel and cast-iron components. The model features stepless spindle speed control, automatic spindle feed, and digital parameter indicators, ensuring high precision and user comfort.

Thanks to its swivelling radial arm (±45°) and compact yet stable design, the RD700 VARIO is perfect for both single-piece and series production, offering machining flexibility and saving time by eliminating the need for frequent repositioning of the workpiece.

Main Advantages of the RD700x32 VARIO Radial Drilling Machine

The CORMAK RD700x32 VARIO has been designed for demanding users who expect precision, reliability, and intuitive operation. Below are the key structural and functional features that distinguish this model among compact radial drilling machines:

Stepless spindle speed control (75–2,500 rpm): Allows ideal adjustment of cutting parameters to the material and operation, providing optimal machining conditions.
Digital speed and drilling depth display: Enables quick and clear reading of parameters, increasing precision and repeatability.
Automatic spindle feed (3 ranges: 0.08 / 0.14 / 0.22 mm/rev): Ensures smooth and even drilling and efficient tapping in automatic mode.
Swivelling radial arm ±45°: Significantly expands the machine’s application range, allowing angled machining without repositioning the workpiece.
Milling capability – thanks to the drawbar spindle design, it allows not only precise drilling and tapping but also light milling operations.
Maximum drilling diameter 32 mm and tapping up to M22: Suitable for a wide range of operations in workshops and production facilities.
Precisely ground base plate with T-slots: Ensures stable clamping of larger workpieces and tooling.
Smooth, ground column Ø150 mm: Provides stable and accurate arm movement.
Mechanical locks of head, column, and arm: Guarantee maximum rigidity and machining safety.
Intuitive front control panel: All functions within operator reach for enhanced ergonomics and efficiency.

Design and Technology

The RD700 VARIO is built on a solid column structure that ensures stability and vibration resistance. The radial arm enables precise head positioning from 300 to 700 mm relative to the column, while a quill stroke of 130 mm allows comfortable drilling in one setup.

Key Components

Spindle: Morse taper MT3 with drawbar, stepless speed control, maximum drilling capacity 32 mm.
Feed system: Automatic spindle feed with three ranges, integrated with tapping mode.
Main motor: 1.5 kW, 400 V, designed for continuous operation.
Table and base plate: 250×250×250 mm cube table and 900×620 mm work plate with T-slots.

Precision and Performance

With stepless speed regulation and digital indicators, the RD700 VARIO guarantees high machining accuracy and repeatability. The automatic feed and tapping mode reduce cycle times, while the rigid construction minimises vibrations and extends tool life.

Applications

The CORMAK RD700 VARIO radial drilling machine is ideal for mechanical workshops, toolrooms, production plants, and maintenance departments. It is perfect for machining steel elements, welded structures, machine parts, and industrial components.

Standard Equipment

Cube table
Base
Drill chuck 3–16 mm / B18
Mandrel MT3 / B18
Reducing sleeve MK3 / MK2
Cooling system
Tapping mode
Digital spindle speed indicator
Digital drilling depth indicator
Adjustable height guard
Basic tool set
Safety guards
User manual
CE certification

Technical Data

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Parameter	Value
Maximum drilling capacity	32 mm
Maximum tapping capacity	M22
Spindle taper	MK3
Minimum spindle speed	75 rpm
Maximum spindle speed	2,500 rpm
Speed change	Stepless (75–438 / 438–2,500)
Automatic feed range	(3) 0.08 / 0.14 / 0.22 mm/rev
Spindle–column distance	300–700 mm
Spindle–table distance	0–430 mm
Spindle–base plate distance	175–680 mm
Vertical arm travel	505 mm
Horizontal head travel	400 mm
Quill stroke	130 mm
Column diameter	150 mm
Cube table size	250 × 250 × 250 mm
Base plate work area	900 × 620 mm
Motor power	1.5 kW
Power supply	400 V
Width	1,220 mm
Depth	640 mm
Height	1,750 mm
Weight	approx. 722 kg

Choose proven European engineering and increase your machining precision with the CORMAK RD700x32 VARIO radial drilling machine. Contact us for expert advice and fast order fulfilment.
