Radial Drilling Machine for Metal CORMAK 3040x1300

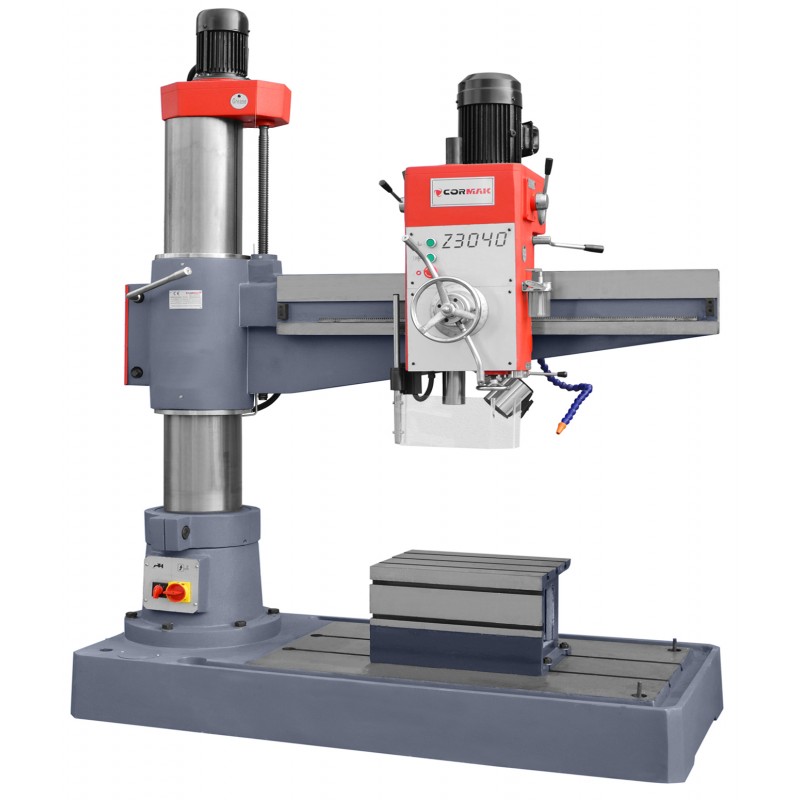

Radial Drilling Machine CORMAK 3040x1300 is an advanced industrial unit designed for precise drilling in materials such as steel and cast iron. The machine features a massive column construction and a wide range of radial arm adjustments, providing excellent stability and flexibility when machining large workpieces. Its key advantage is the ability to drill holes up to 40 mm in diameter with micrometric precision.

Main advantages of the CORMAK 3040x1300 radial drilling machine

The CORMAK 3040x1300 radial drilling machine has been designed for demanding industrial environments, offering reliability, precision and high performance. Its advanced construction, based on a robust column and precise adjustment mechanisms, ensures optimal working conditions for a wide range of applications. Below are the main benefits that make this model a leader among radial drilling machines available on the market:

• Massive 1,400 kg construction: Guarantees exceptional stability and minimal vibration, resulting in precise drilling and extended tool life.
• Adjustable radial arm with a range of 360–1,300 mm: Allows drilling of large and irregular workpieces without repositioning, increasing flexibility and reducing setup time.
• Spindle with MK4 taper and six speeds (75–1,200 rpm): Provides accurate speed adjustment for various materials, allowing drilling of holes up to 40 mm in steel and cast iron.
• Spindle travel 200 mm: Enables deep drilling in one cycle, accelerating production and improving efficiency.
• Main motor 2.2 kW: Delivers high torque, ensuring reliability during continuous operation with optimal energy use.
• Arm lifting motor 0.75 kW: Enables smooth and fast height adjustment of the arm at a speed of 1.3 m/min, improving ergonomics.
• Cube table 510 × 380 × 305 mm: Facilitates secure clamping of irregularly shaped components, improving safety and accuracy.
• Ergonomic control panel: Front-mounted for intuitive use and quick parameter adjustment, reducing downtime.
• Ground column surface: Ensures smooth and precise arm movement, eliminating play and enhancing positioning accuracy.
• Manual head and arm lock: Increases safety and stability during drilling, preventing uncontrolled movement.
• Three spindle feed rates (0.10, 0.16, 0.25 mm/rev): Allow precise control of the drilling process, matched to the material and application.

These features make the CORMAK 3040x1300 radial drill an indispensable tool for professionals requiring reliability, precision and high efficiency in intensive industrial production.

Design and technology

The CORMAK 3040x1300 radial drilling machine is built on a solid column structure made of high-strength steel, ensuring rigidity and resistance to dynamic loads. The radial arm, adjustable from 360 to 1,300 mm, enables precise spindle positioning, while the ground column surface ensures smooth movement and minimal play.

Key components

• Spindle: Made of hardened steel with Morse taper MK4, allowing quick tool changes. Six rotational speeds (75, 130, 240, 380, 660, 1,200 rpm) provide flexibility in parameter selection.
• Feed system: Mechanism with 200 mm spindle stroke and three feed rates (0.10, 0.16, 0.25 mm/rev), allowing precise depth control supported by a cooling system that reduces overheating.
• Main motor: A 2.2 kW electric motor, 400V supply, ensuring stable torque in all operating conditions.
• Arm lifting motor: 0.75 kW motor enabling smooth and quick height adjustment at a speed of 1.3 m/min.
• Base and worktable: Robust base with T-slots and cube table 510 × 380 × 305 mm provide secure workpiece clamping and increased machining precision.
• Lubrication system: Central lubrication of key points reduces wear and maintenance costs.

Advanced manufacturing technology, including precision grinding of guide surfaces, guarantees long-term reliability and high-quality machining.

Precision and performance

The CORMAK 3040x1300 radial drilling machine ensures high precision thanks to its rigid construction and advanced adjustment systems. The spindle-to-table distance (260–1,300 mm) and spindle-to-column axis distance (360–1,300 mm) allow machining of components of various sizes with micrometric tolerances. Quick spindle speed change and precise feed control reduce setup time, improving production efficiency.

Compared with traditional column drills, the radial model offers greater flexibility in machining large components, allowing holes up to 40 mm in steel and cast iron. The integrated cooling system minimises thermal deformation, ensuring repeatable results in serial production.

Applications

The CORMAK 3040x1300 radial drill is designed for metalworking plants, mechanical workshops, and maintenance departments. It is ideal for drilling holes in large steel structures, machine components, moulds and parts for the automotive, agricultural and construction industries. Its versatility and reliability make it a perfect choice for professionals requiring precision and heavy-duty performance.

Standard equipment

• Drill chuck B16 (3–16 mm)
• Drill chuck arbor B16/MK4
• Reducing sleeve MK4/MK3
• Drift key
• Cube table 510 × 380 × 305 mm
• User manual

Optional accessories

• Machine vice in various sizes
• HSS drill set for steel and cast iron
• Automatic spindle feed
• LED work lamp
• Digital readout (DRO) system for increased precision

Technical data

Optimise your production processes with the CORMAK 3040x1300 radial drilling machine. Contact us for detailed information, professional advice, or to place an order – we guarantee prompt delivery.
