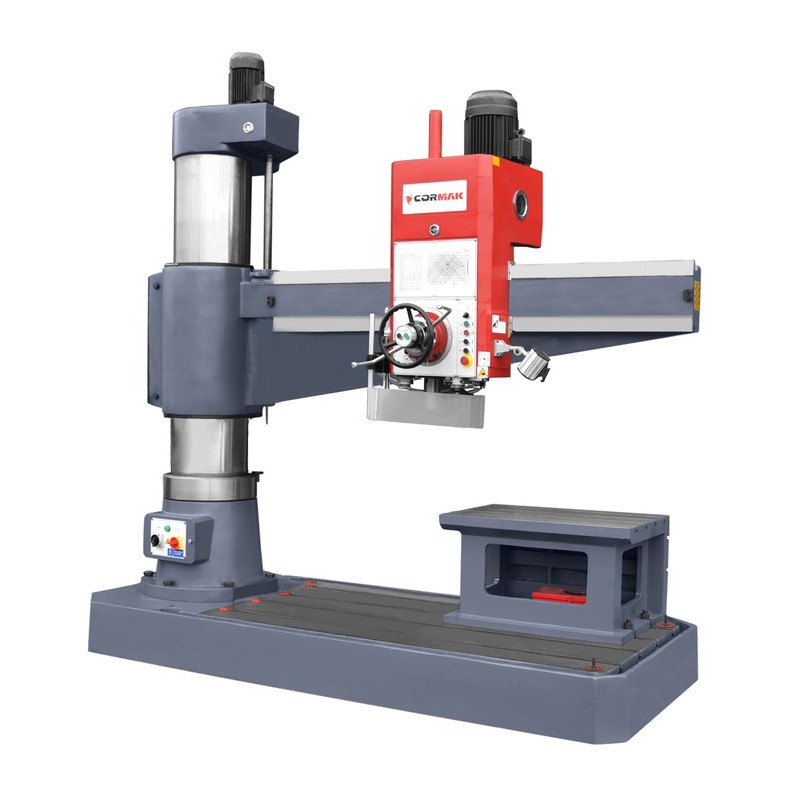

Radial Drilling Machine for Metal CORMAK RD2000x63

Radial Drilling Machine CORMAK RD2000x63 is an advanced industrial unit designed for precise drilling in metal materials such as steel and cast iron. The machine features a massive column structure and a wide range of radial arm adjustments, ensuring stability and flexibility when machining large components. Its key advantage is the ability to drill holes up to 63 mm in diameter, making it a reliable tool for demanding production environments.

Main advantages of the CORMAK RD2000x63 radial drilling machine

The CORMAK RD2000x63 radial drilling machine has been designed for intensive use in heavy industry, offering high precision, performance and durability. Its technical parameters, including a wide adjustment range and a powerful motor, enable efficient machining of large workpieces without compromising quality. Below are the key benefits that distinguish this model among other radial drills, directly derived from its design and specifications:

• Maximum drilling diameter 63 mm: Enables large-hole machining in hard materials, increasing the versatility of the machine and reducing the need for additional equipment.
• Adjustable spindle-to-column distance 450–2,000 mm: Provides flexible spindle positioning for drilling large structures without repositioning the workpiece, reducing cycle times and improving efficiency.
• Spindle-to-table distance 400–1,600 mm: Allows adaptation to components of various heights while maintaining precision and minimising setup errors.
• Spindle travel 450 mm: Enables deep drilling in a single cycle, accelerating processing and reducing tool wear through optimal feed rates.
• Spindle taper MT5 with 16 speeds (20–1,600 rpm): Offers precise speed control for different materials, ensuring optimal cutting conditions and extended tool life.
• Spindle feed range (16) 0.04–3.20 mm/rev: Provides accurate feed control, essential for high surface quality and minimising defects.
• Spindle motor power 5.5 kW: Delivers high torque and stable operation under load, supporting continuous industrial use with low energy consumption.
• Worktable 800 × 630 mm: Facilitates the clamping of large workpieces with high stability and precision, featuring T-slots for vises and fixtures.
• Horizontal head travel 2,000 mm: Offers a wide machining range, ideal for large components, reducing the need to move the machine or workpiece.
• Massive 7,000 kg structure: Minimises vibration and ensures stability, resulting in micrometric accuracy and longer component life.
• Machine dimensions 3,080 × 1,250 × 3,400 mm: Optimised proportions allow easy integration into large production halls while maintaining ergonomics and accessibility.

These advantages make the CORMAK RD2000x63 radial drill an indispensable solution for professionals demanding reliability and high performance in metalworking.

Design and technology

The CORMAK RD2000x63 radial drilling machine is built on a solid column structure, providing rigidity and resistance to dynamic loads. The radial arm adjustable within 450–2,000 mm ensures precise spindle positioning, while the integrated lubrication and cooling systems minimise component wear.

Key components

• Spindle: With Morse taper MT5, 450 mm travel and 16 speeds (20–1,600 rpm), made of high-quality steel for fast tool changes and precise cutting.
• Feed system: Features 16 feed ranges (0.04–3.20 mm/rev), mechanically driven and integrated with the cooling system to reduce heat and improve machining quality.
• Spindle motor: 5.5 kW, 400V, providing consistent torque across the full speed range for reliable performance.
• Worktable: 800 × 630 mm with T-slots for vises and fixtures, ensuring stable support of workpieces.
• Column and arm: Heavy-duty design with ground guide surfaces, reducing play and allowing smooth horizontal head movement of 2,000 mm.
• Cooling system: Integrated pump system prevents overheating of tools and components, extending service life.

Manufactured with precision grinding and hardening of key elements, the machine ensures long-term industrial reliability.

Precision and performance

The CORMAK RD2000x63 radial drilling machine provides high precision thanks to its rigid structure and advanced adjustment mechanisms. The spindle-to-table distance (400–1,600 mm) and spindle-to-column axis distance (450–2,000 mm) enable machining of large components with micrometric tolerance. The wide speed and feed range reduces downtime and increases production efficiency.

Compared with smaller radial drills, this model offers higher machining capacity with 5.5 kW motor power and 450 mm spindle travel, allowing drilling up to 63 mm diameter with minimal energy use. The integrated cooling system prevents thermal deformation, ensuring repeatable accuracy in production batches.

Applications

The CORMAK RD2000x63 radial drill is designed for metalworking plants, mechanical workshops and maintenance departments. It is ideal for drilling holes in large steel structures, machine components, moulds and parts for heavy industry, automotive and construction sectors. Its robust design and wide range make it perfect for precision and high-duty applications.

Standard equipment

• Cube table
• Set of Morse reduction sleeves MK5/4, MK4/3, MK3/2
• Drill chuck
• Keys and drift wedges
• Work light
• Cooling system
• Lifting motor
• Hydraulic motor
• Safety guard
• Service tools
• Machine pre-filled with oil

Optional accessories

• Machine vice in various sizes
• HSS drill set for steel and cast iron
• Automatic spindle feed
• LED work lamp
• Digital readout (DRO) system for increased precision

Technical data

Optimise your metalworking processes with the CORMAK RD2000x63 radial drilling machine. Contact us for detailed information, professional advice or to place an order – we guarantee prompt delivery.
